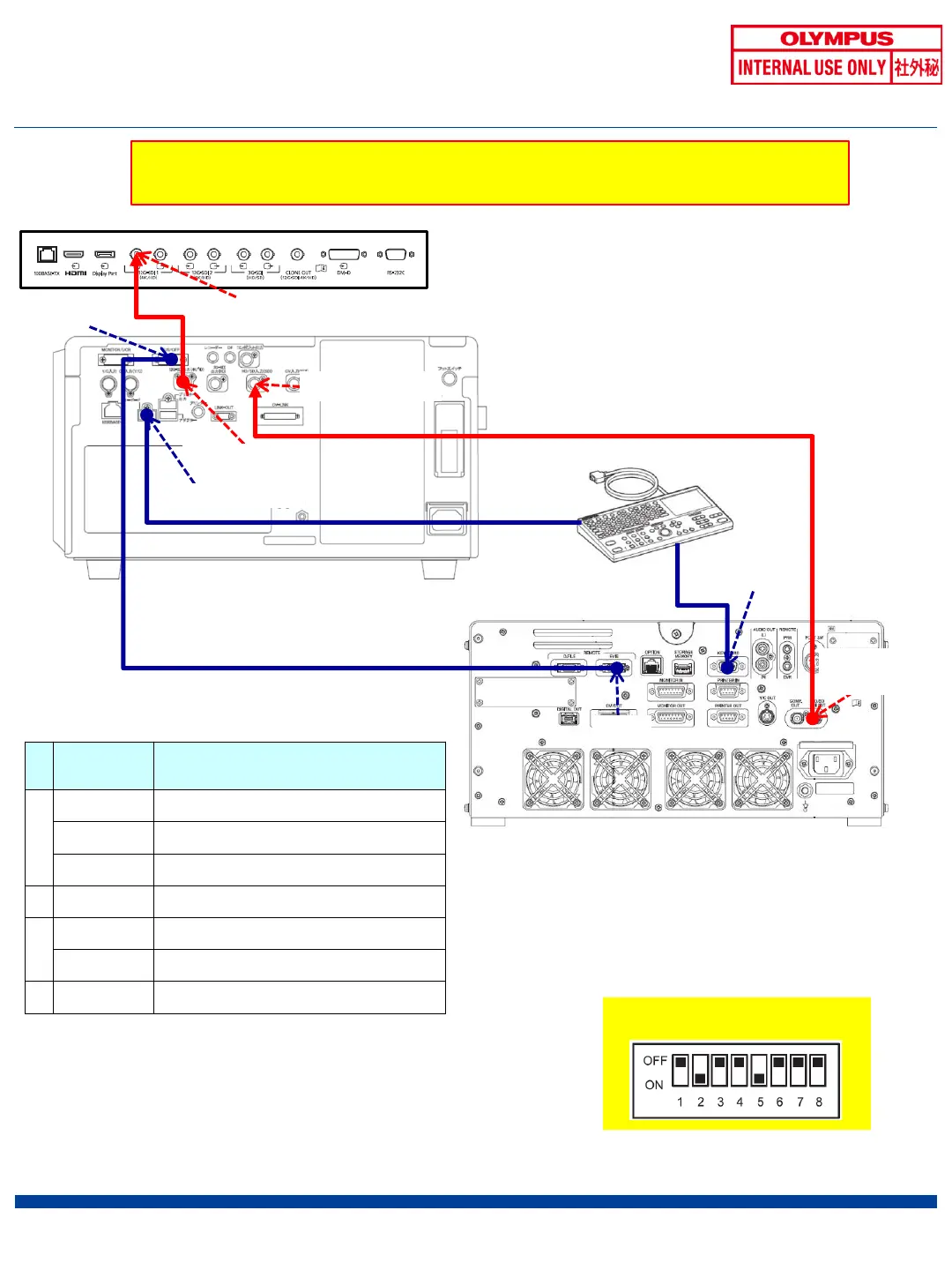

Olympus EVIS X1 - EU-ME2 Type a

◆ EU-ME2 type A 1/2
47
12G-SDI1 IN
12G-SDI
output
(4K/HD)
KEYBOARD
EUS/OFP
EVIS
HD/SD input (SDI)
HD/SD
SDI OUT
CV-1500 and EU-ME2 should be connected with SDI cable (2.5M).
Voltage fluctuations, such as lightning strikes, can cause noise in images.
1
2
3
4
OEV321UH
CV-1500
EU-ME2
MAJ-1995
DIP-switching setup for MAJ-1995
<List of Cables>
#
Product
symbol
Name
1
MAJ
-
2426
12G-SDI cable (1.5M)
MAJ
-
2428
12G-SDI cable (2.9M)
MAJ
-
2429
12G-SDI cable (8.5M)
2
MAJ
-
1951
SDI cable (2.5M)
3
MAJ
-604 DF remote cable (2 M)
MAJ
-608 DF remote cable (15 M)
4
MAJ
-
1711
EVIS-EUS connecting cable
Keyboard
