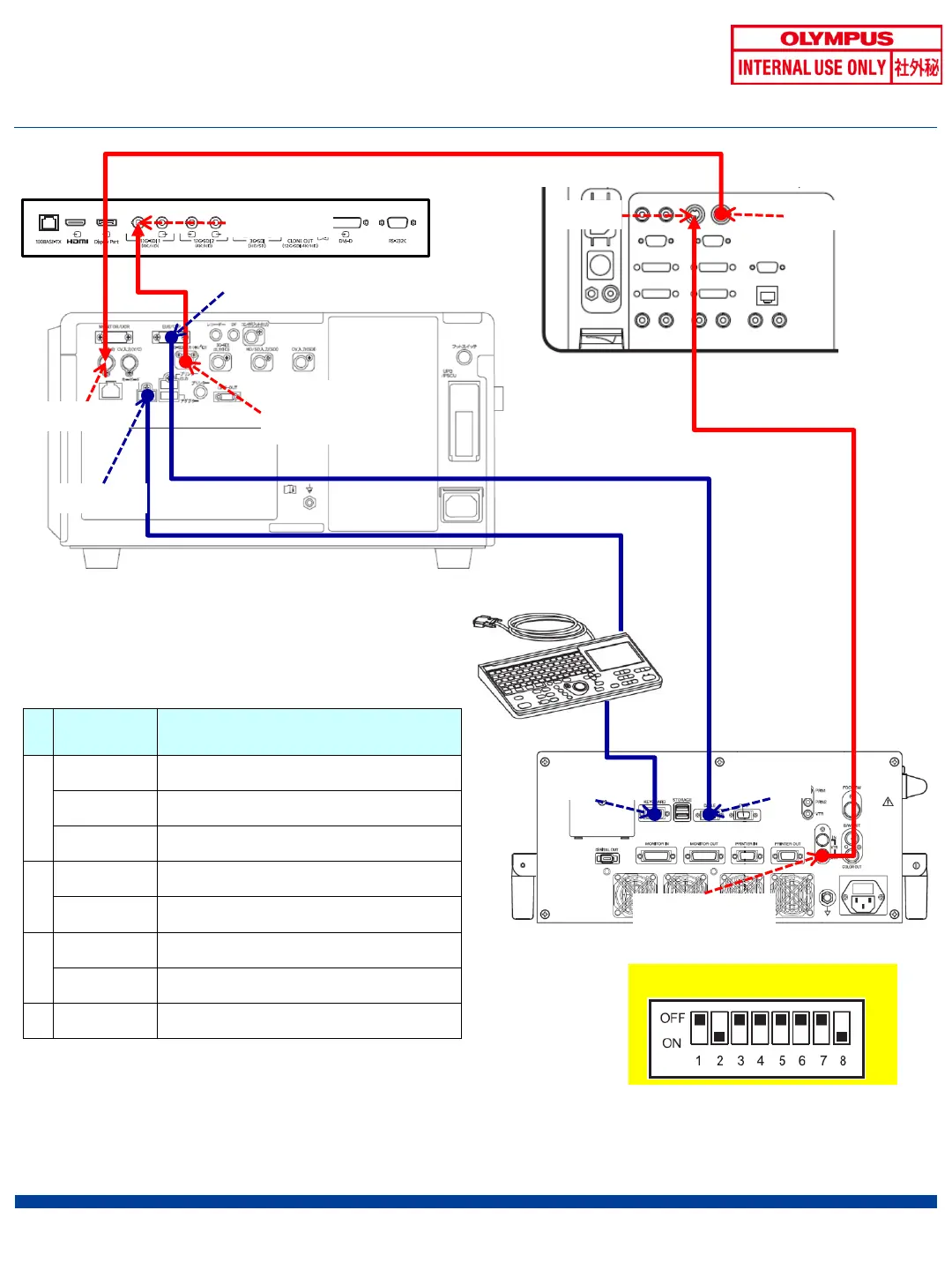

◆ EU-ME1 type E1Y 1/2
67
MONITOR OUT
Y/C IN
12G-SDI
output
(4K/HD)
12G-SDI1 IN
Keyboard
KEYBOARD
EVIS
EUS/OFP
Y/C OUT
Y/C input
OEV321UH
CV-1500
MAJ-1710
EU-ME1
OEV262H
1
2
2
4
3
DIP-switching setup for MAJ-1710
<List of Cables>
#
Product
symbol
Name
1
MAJ
-
2426
12G-SDI cable (1.5M)
MAJ
-
2428
12G-SDI cable (2.9M)
MAJ
-
2429
12G-SDI cable (8.5M)
2
MH-985 Y/C cable (2.95M)
MAJ-987 Y/C cable (15M)
3
MAJ-604 DF remote cable (2 M)
MAJ-608 DF remote cable (15 M)
4
MAJ
-
1711
EVIS-EUS connecting cable
