Olympus EVIS X1 - CV-190;190 PLUS;290 + EU-ME2 Type A Setup

CV-1500
CV-190/190PLUS/290
MAJ-2363

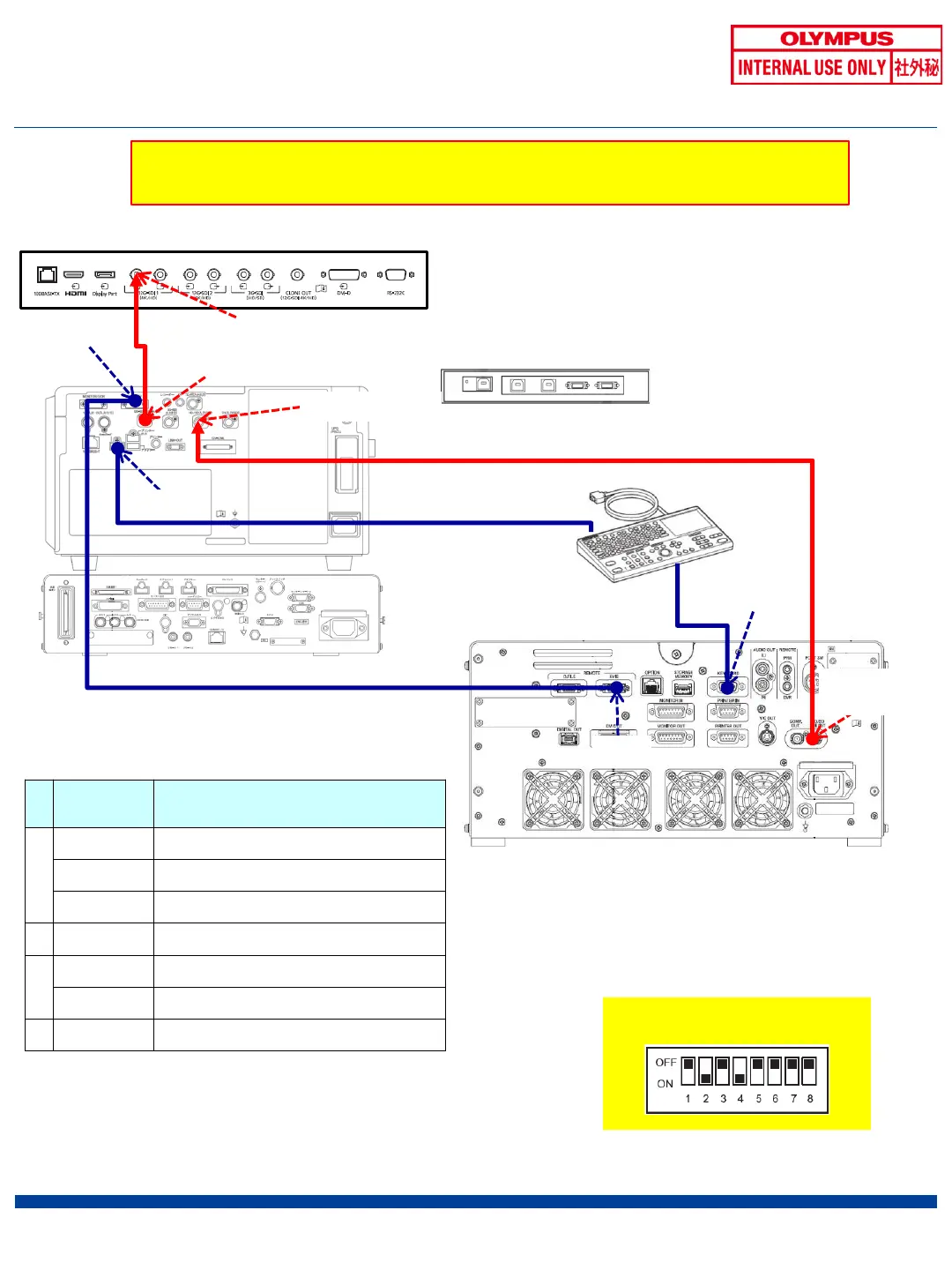

◆ CV-190/190PLUS/290+EU-ME2 type A 1/2
90
12G-SDI1 IN
12G-SDI
output
(4K/HD)
KEYBOARD
EUS/OFP
EVIS
HD/SD input (SDI)
HD/SD
SDI OUT
CV-1500 and EU-ME2 should be connected with SDI cable (2.5M).
Voltage fluctuations, such as lightning strikes, can cause noise in images.
1
2
3
4
OEV321UH
EU-ME2
MAJ-1995
DIP-switching setup for MAJ-1995
<List of Cables>
#
Product
symbol
Name
1
MAJ
-
2426
12G-SDI cable (1.5M)
MAJ
-
2428
12G-SDI cable (2.9M)
MAJ
-
2429
12G-SDI cable (8.5M)
2
MAJ
-
1951
SDI cable (2.5M)
3
MAJ
-604 DF remote cable (2 M)
MAJ
-608 DF remote cable (15 M)
4
MAJ
-
1711
EVIS-EUS connecting cable
Keyboard
* Please refer to EU-ME2 setting type Selection Flow and determine the wiring type.
* Please refer to CV-190/190PLUS/290 for the setting of connection with CV-190/190PLUS/290.
