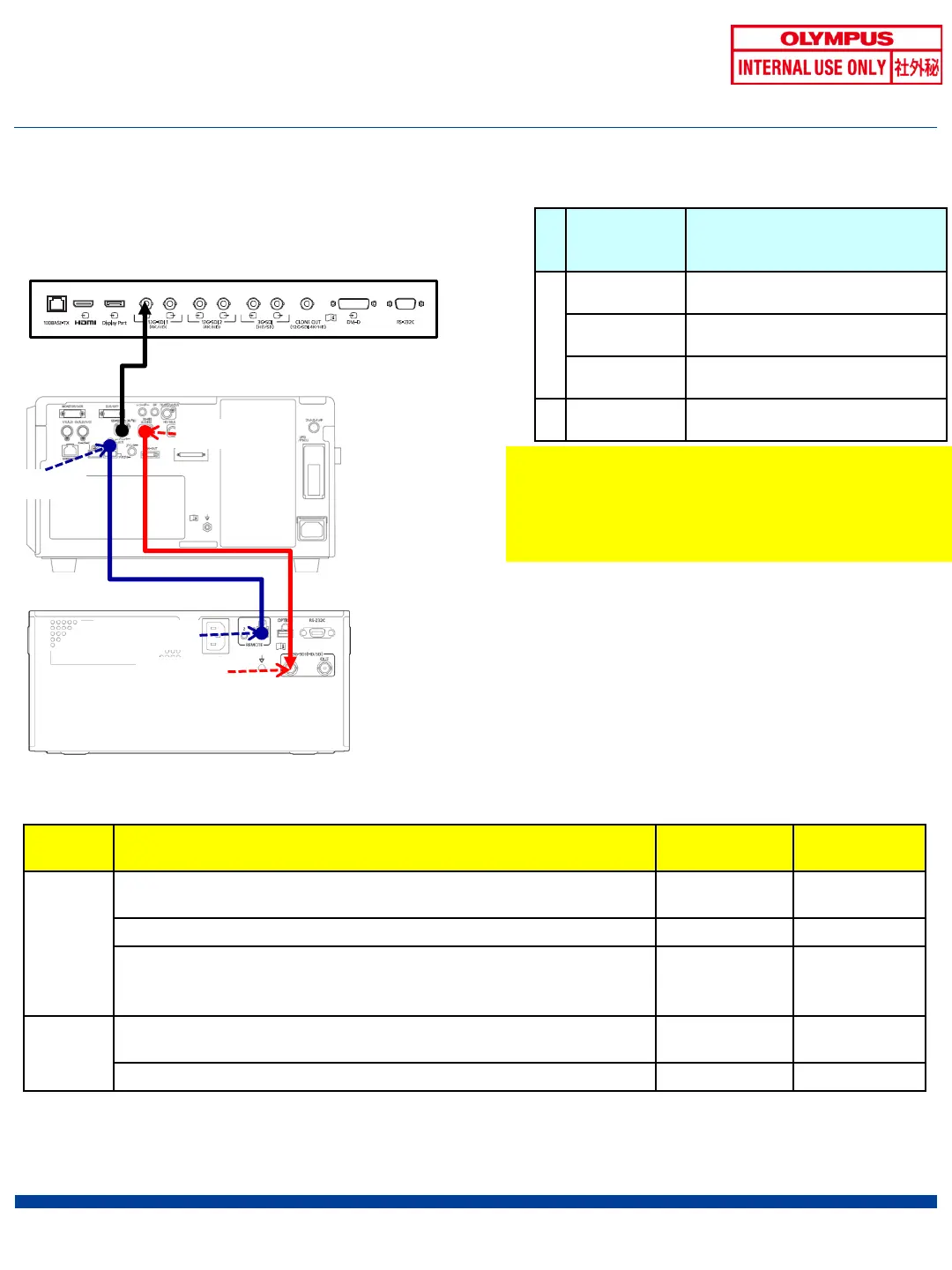

Olympus EVIS X1 - OEP-6 Peripheral Setup

30
◆ OEP-6
♯
Product
symbol
Name
1
MAJ-2430 3G-SDI cable 1.5M
MAJ-2015 3G-SDI cable 3.0M
MAJ-2016 3G-SDI cable 8.5M
2 MAJ-1918 Remote cable 1.8M
<List of Cables>
Setting
model
Step Default After change
CV-1500
Setting > System setup > Video output > 3G-SDI OUT
(HD/SD) signal
HD:1080p HD:1080P
Setting > System setup > Peripherals 1 > Video printer type Not connected OEP-6
Setting> User Setting > Release/Pre-freeze
>Release 1 save location or Release 2 save location
Portable
memory
Portable
memory
Video printers
OEP-6
MENU > System setup > Remote setup >REMOTE3 Device
type
CV CV
MENU > System setup > Input setup > Input signals Auto Auto
! Caution!
To connect with OEP-6, set CV-1500 output
to HD:1080p or less. Becuase OEP-6 is not
compatible with 4K format.
■ Supplement
* Connecting MAJ-1918 turns the remote locking ON, which overrides OEP-6's front-panel operation,
and thereafter it can be operated with touch-panel of the CV.
OEV321UH
CV-1500
OEP-6
1
2
Printer
3G-SDI output
REMOTE3
3G-SDI IN
* Refer to OEV321UH for the
connection and setting with
OEV321UH.
*
[SETTING INFORMATION]
