Olympus EVIS X1 - Page 32

MAJ-1916
32

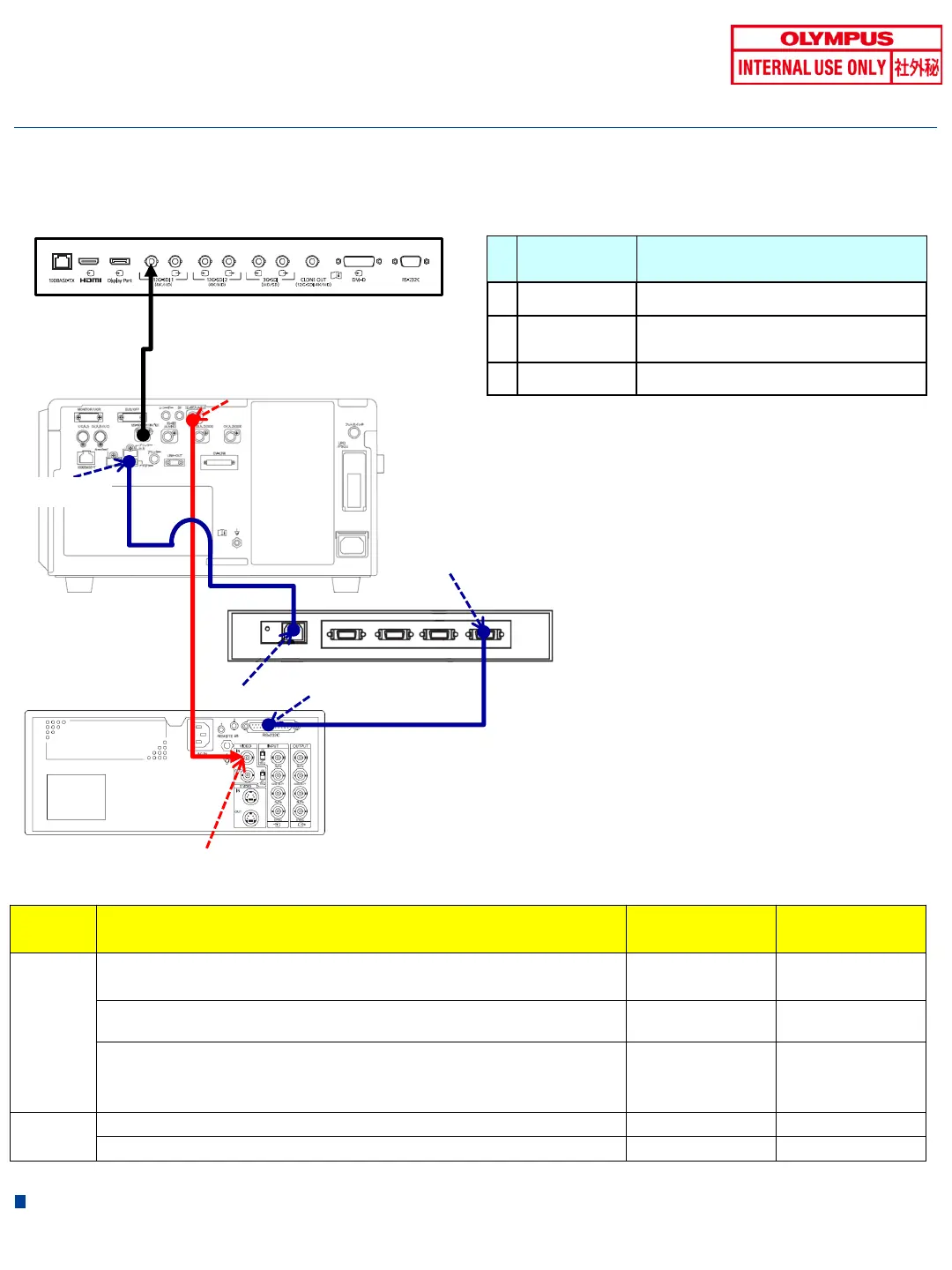

◆ OEP-4(MAJ-1916)
Composite output
VIDEO IN
CV
Adaptor
RS-232C
PRINTER
1
2
3
#
Product
symbol
Name
1
MB-677 BNC cable (3M)
2
MAJ-1918
Peripheral Device Remote
Cable
3
MH-995 Remote cable
<List of Cables>
OEV321UH
CV-1500
OEP-4
* Refer to OEV321UH for the connection
and setting with OEV321UH.
*
■ Precautions
・ Set in the order of “CV Communication Device Connecting Model” to “Video Printer
Connecting Model". In the opposite order of setting
If this is done, "Video printer type" will be "Not connected".
MAJ-2363 can be used instead of MAJ-1916.
For the wiring and setting when using MAJ-
2363, refer to "CV-290+OEP-4(MAJ-2363)"
Refer
Setting
model
Step Default
Setting
parameter
CV
-
1500
Setting> System setup > Peripherals 1>CV interface
converter type
Not connected
MAJ-1916
Setting > System setup > Peripherals 1 > Video printer type
Not connected
OEP-4
Setting> User Setting > Release/Pre
-freeze
>Release 1 save location or Release 2 save location
Portable
memory
Portable
memory
Video printers
OEP-4
BASIC SETUP>INPUT SEL
COMPONENT
VIDEO
INPUT SETUP>SD/HD SEL
AUTO AUTO
[SETTING INFORMATION]
