37
◆ UPD-3
♯
Product
symbol
Name
1
MAJ-2426 12G-SDI cable (1.5M)
MAJ-2428 12G-SDI cable (2.9M)
MAJ-2429 12G-SDI cable (8.5M)
2
MAJ-1912 SDI-cable (8.5M)
MAJ-1951 SDI-cable (2.5M)
3
MAJ-1942 Communication cable (0.7M)
MAJ-1948 Communication cable (1.8M)
4 MAJ-1898 CLV-UPD cable
<List of Cables>
Setting
model
Step Default After change
CV-1500
Setting > System setup > Video output > 12G-SDI OUT
(4K/HD) signal
HD:1080p 4K
Setting> System setup > Peripherals 2> Select PIP/POP device CV CV
Setting> System setup > Peripherals 2 > UPD ScopeGuide
Type
Not connected UPD-3
Settings > User Settings > PIP/POP > Select CV ext. source
HD/SD input
(SDI)
HD/SD input
(SDI)
UPD-3 Menu > System settings > System > Remote > Connection CV remote LINK-IN
■ Supplement
・ When LINK connected , UPD-3's front-panel control is overridden, and the operation is performed from the
CV-touch panel.
・ Please refer to the External Image Record Setting for how to record UPD-3 images.
■ Reference
Since the PIP has been entered into the CV, UPD-3 screen is displayed on the monitor by performing the
following operations:
[How to display UPD-3 screen]. Home > Function List > Info. > PIP/POP > PIP ON

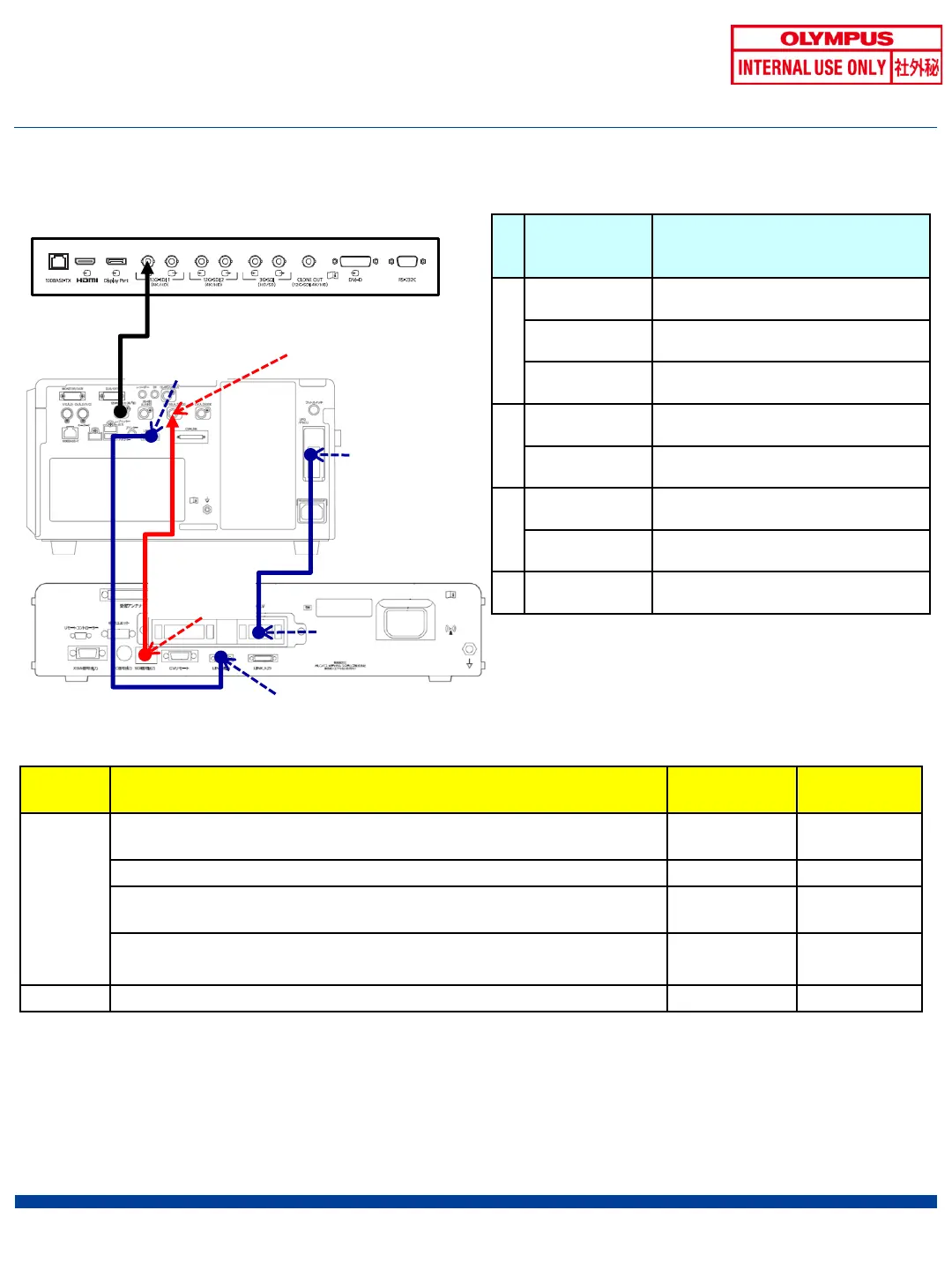

OEV321UH
CV-1500
UPD-3
*
3
LINK-OUT
LINK-IN
CLV
UPD/PSCU
4
2
HD/SD input (SDI)
SDI signal
output
* Refer to OEV321UH for the
connection and setting with
OEV321UH.
[SETTING INFORMATION]
