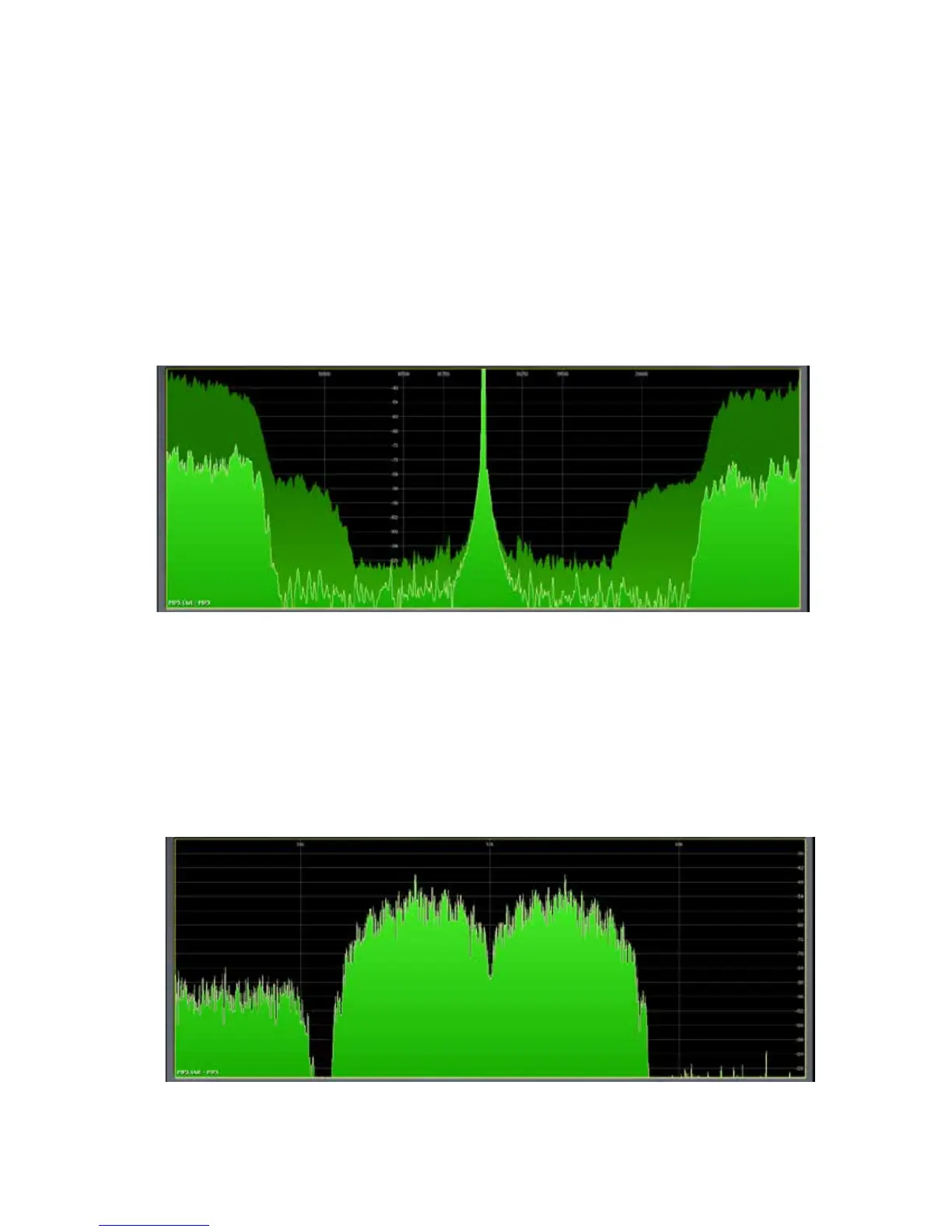

ExamplesandRecommendedSettingsfortheFFTSpectrumAnalyzer
 PilotProtectionMonitor
o DisplaytheMPXOutput
o SetResolutionto8x
o SetDecayRateto6
o SetPeakHoldto“On”
o SetXCenterto19kHz
o SetXWidthto4kHz
o SetYCenterto90dB
o SetYRangeto100dB,
o SetdBScalePositionto36



 DisplayingtheRDSSubcarrier
o DisplaytheMPXOutput
o SettheResolutionandDecayratetoanysetting
o SetPeakHoldto“Off”
o SetXCenterto57kHz
o SetXWidth10kHz
o SetYCenterto80dB
o SetYRangeto100dB
o SetdBScalePositionto100

