UsinganRDSEncoderThatDoesNotProvideaPilotSignal
SomeRDSencoderstakethepilotsignaloftheprocessor,useitasasyncreferenceforRDS,and
thenoutputonlytheRDSdatawithoutpassingthepilot.

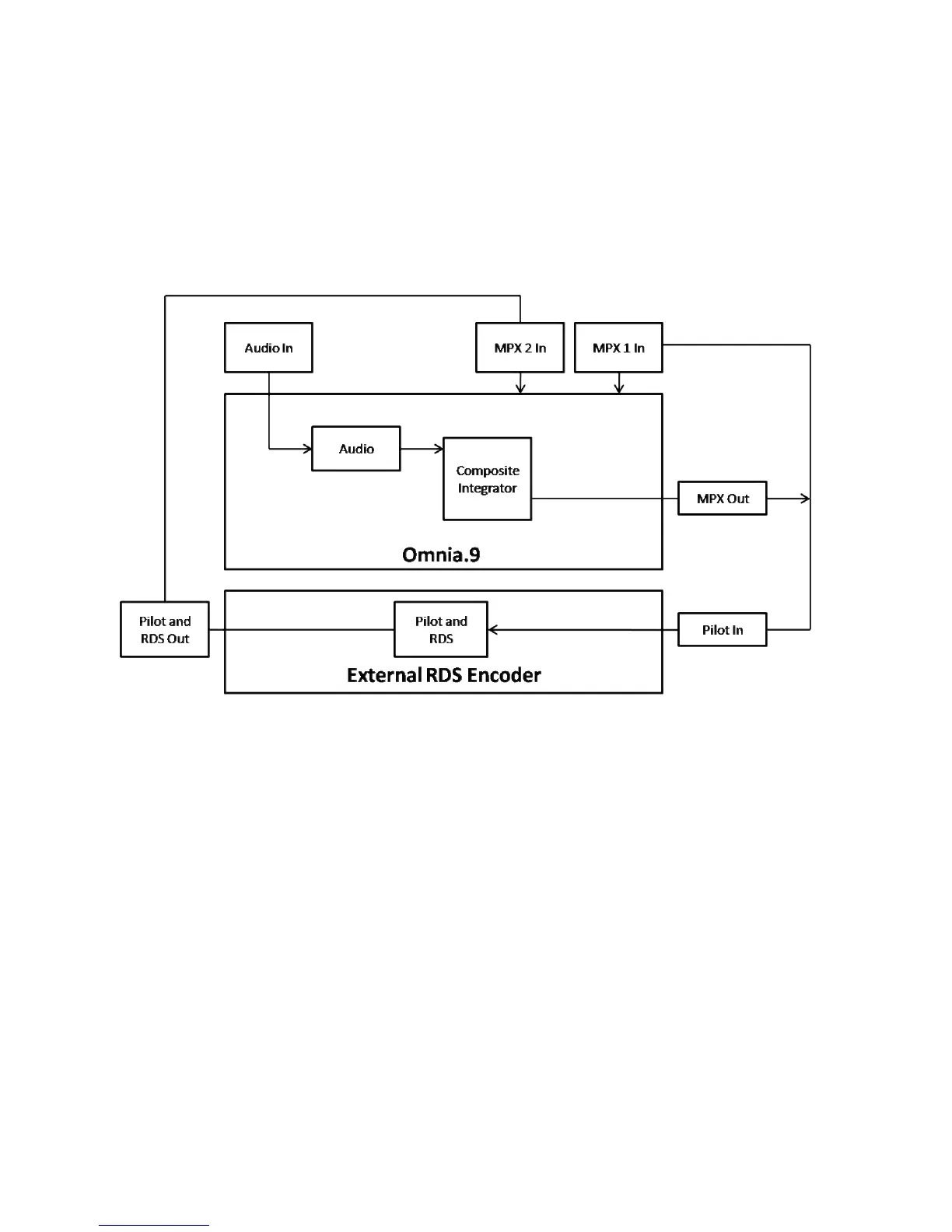

Inthissituation,youcanuseaTconnectoronOmnia.9’sMPX2Output,connectonelegofthetee
tothePilotInput(Sync)ontheRDSencoder,andconnecttheothertooneOmnia.9’sMPX1Input.
TheoutputoftheRDSencodershouldbeconnectedtoOmnia.9’sMPX2Input.










Inthisscenario,settheMPX2Outputcontroltothe19kHzGeneratormodeandtheExternalInput
tothe1+2modeinsothatbothMPXinputsareenabledforRDS.






