Omron CK3M Series User Manual

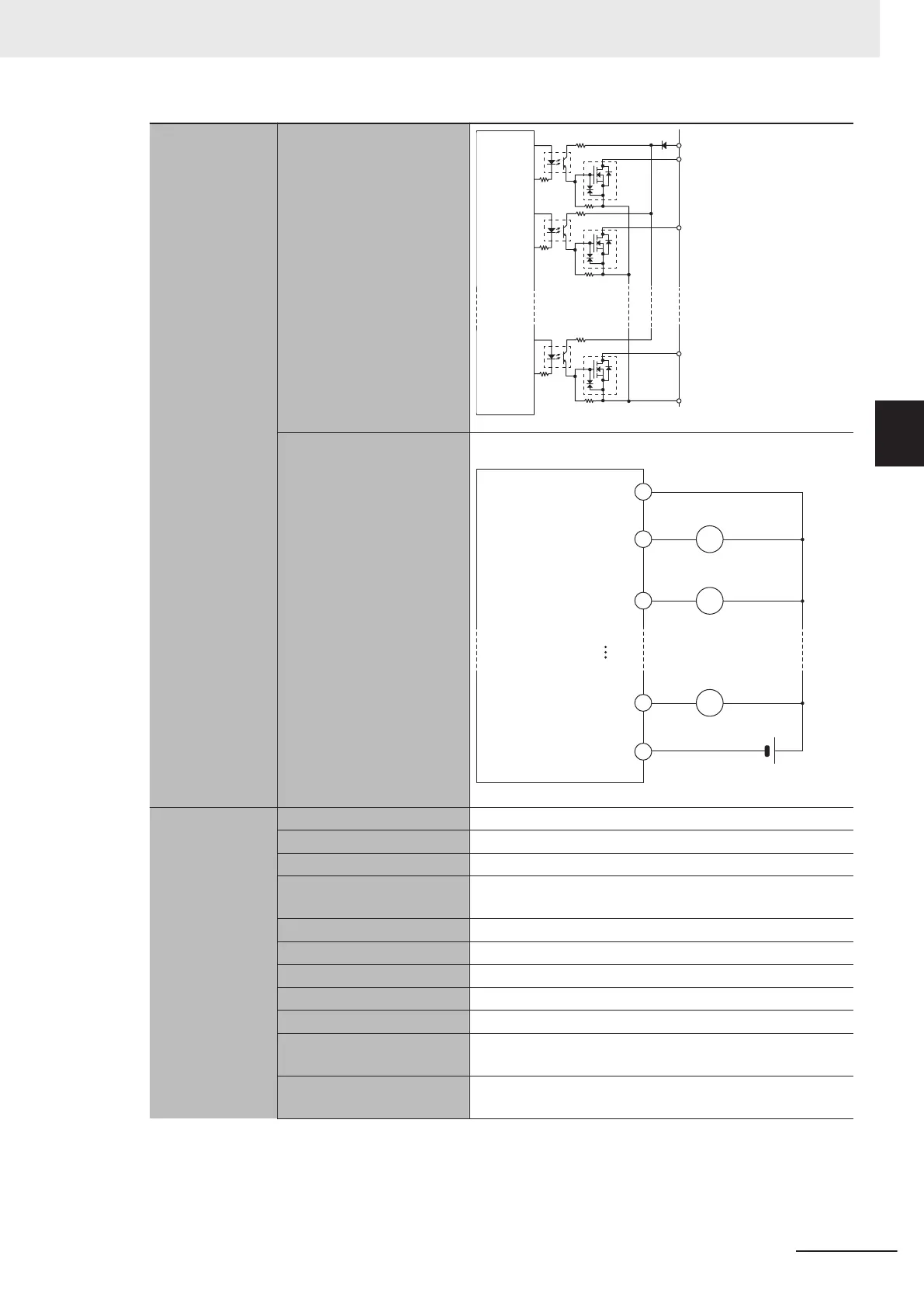

Circuit configuration
Internal
ci
rcuit
V2
G2
OUT00
OUT01
OUT15
Connection diagram NPN type
12 to 24 VDC
V2
OUT
00
OUT01
OUT15
G2
L
L
L
General digital
output (PNP)
Internal common PNP
Rated voltage 12 to 24 VDC
Current consumption 80 mA max.
Operating load voltage
range
10.2 to 26.4 VDC
Maximum load current 0.5 A/point, 2 A/Unit
Maximum inrush current 4.0 A/point, 10 ms max.
Leakage current 0.1 mA max.
Current voltage 1.0 V max.
ON/OFF response time 0.1 ms max./0.8 ms max.
Isolation method Isolation by Photocoupler (between output and internal cir-
cuit)
Load short-circuit preven-
tion
Provided
3 Configuration Units
3-41
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
3-3 Axis Interface Unit
3
3-3-14 General Digital I/O Connection Terminal Block Specifications
