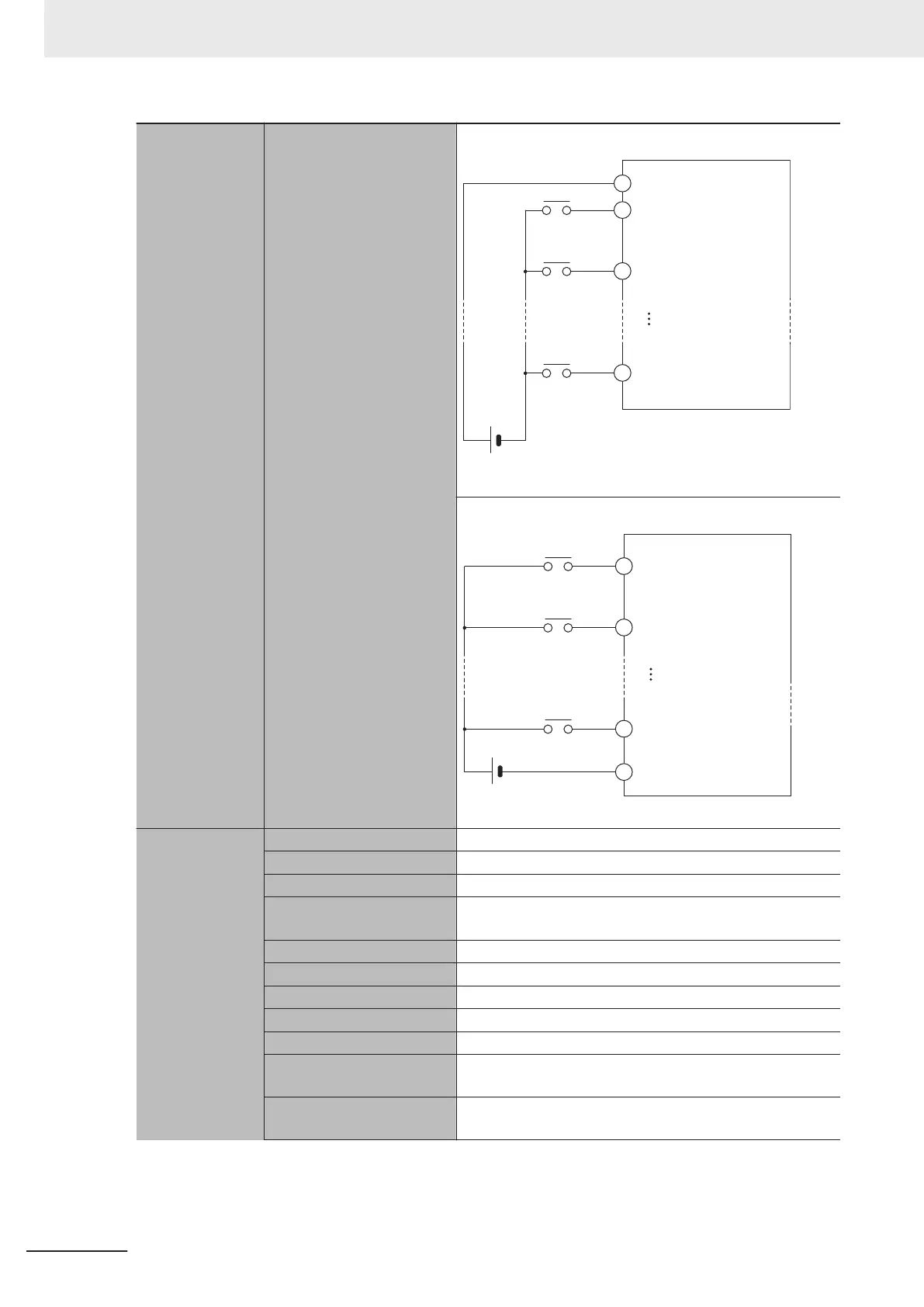

Connection diagram NPN type
24 VDC
V1
I
N00
IN01
IN15
PNP type
24 VDC
I
N00
IN01
IN15
G1
General digital
output (NPN)
Internal common NPN
Rated voltage 12 to 24 VDC
Current consumption 40 mA max.
Operating load voltage
range
10.2 to 26.4 VDC
Maximum load current 0.5 A/point, 2 A/Unit
Maximum inrush current 4.0 A/point, 10 ms max.
Leakage current 0.1 mA max.
Residual voltage 1.0 V max.
ON/OFF response time 0.1 ms max./0.8 ms max.
Isolation method Isolation by Photocoupler (between output and internal cir-
cuit)
Load short-circuit preven-
tion
Not provided
3 Configuration Units
3-40
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
