No.20S062-00
14/55
STC-LBGP251BCXP124 / STC-LCGP251BCXP124 / STC-LBGP251BCXP124-T / STC-LCGP251BCXP-T
Product Specifications and User’s Guide
5.5 External Connector Specifications

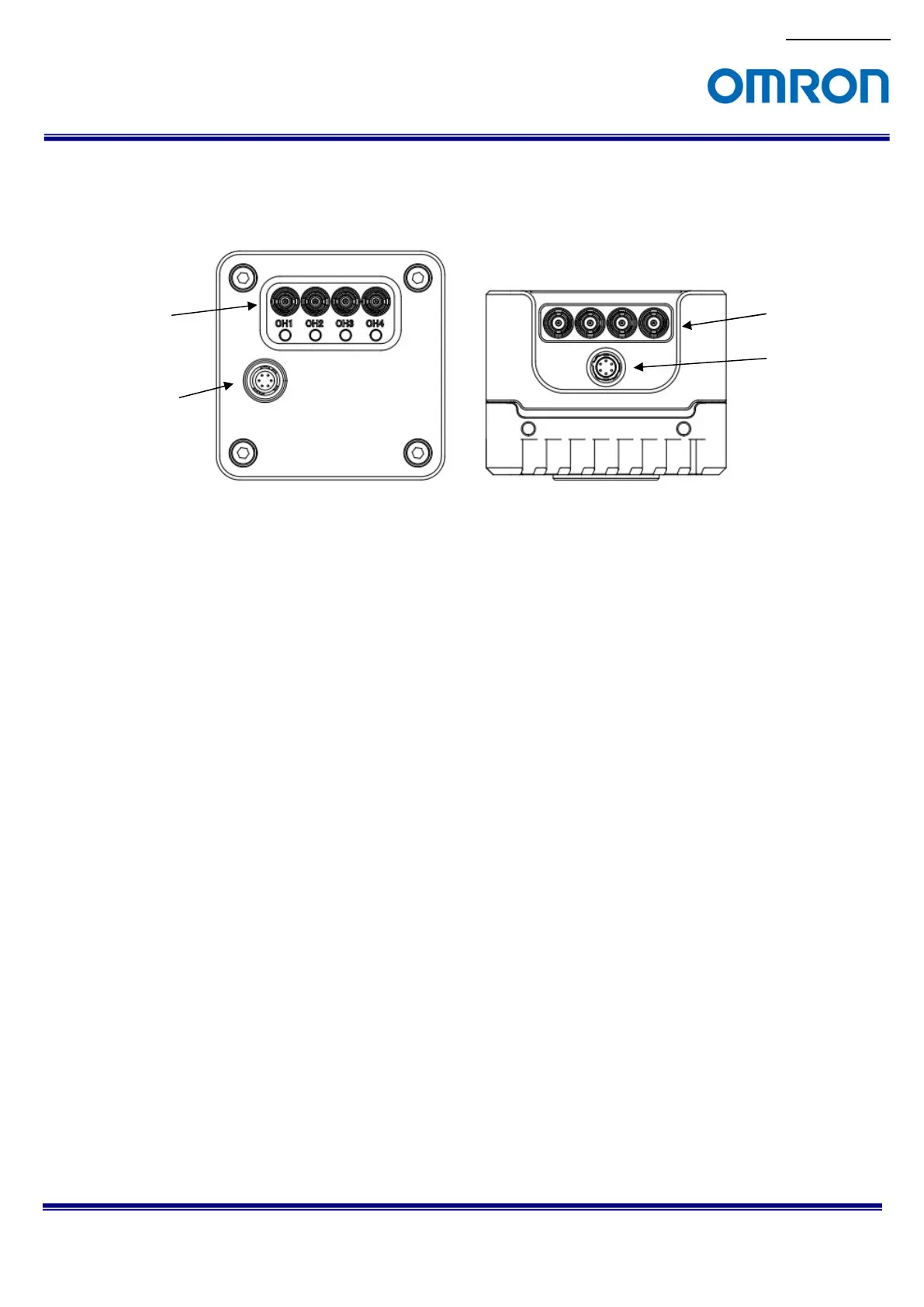

STC-LxGP251BCXP124 STC-LxGP251BCXP124-T
5.5.1 Micro BNC Connector
Micro BNC, 75 Ohm or equivalent x 4
This camera is PoCXP supported CoaXPress camera.
The CoaXPress frame grabber board is supplied power to camera through Micro BNC connector.
Please using CXP12 supported cable.
When CH1 was connected to Frame Grabber (FG), FG provides power to camera through PoCXP. Some FG
starts discovery CXP camera when CH1 was connected. If CH1 connecting first, camera may recognize as
CXP12, CXP6 or CXP3 (12.5Gbps, 6.25Gbps or 3.125Gbps) 1 Lane configuration.
To recognize as CXP12, CXP6 or CXP3 2 Lane or 4 Lane configurations, please connect CH1 after connected
from CH2 to CH4, or re-discovery after all CH is connected.
Micro BNC
Connector
Power/IO
Connector
Micro BNC
Connector
Power/IO
Connector
