Omron CoaXPress STC-LBGP251BCXP124

No.20S062-00
45/55
STC-LBGP251BCXP124 / STC-LCGP251BCXP124 / STC-LBGP251BCXP124-T / STC-LCGP251BCXP-T
Product Specifications and User’s Guide
11) Exposure Active (In Exposure Period)
The signal that activation time is exposure time is output.
(*) Actual exposure period = Output signal pulse width + Minimum exposure time 13.73 μseconds

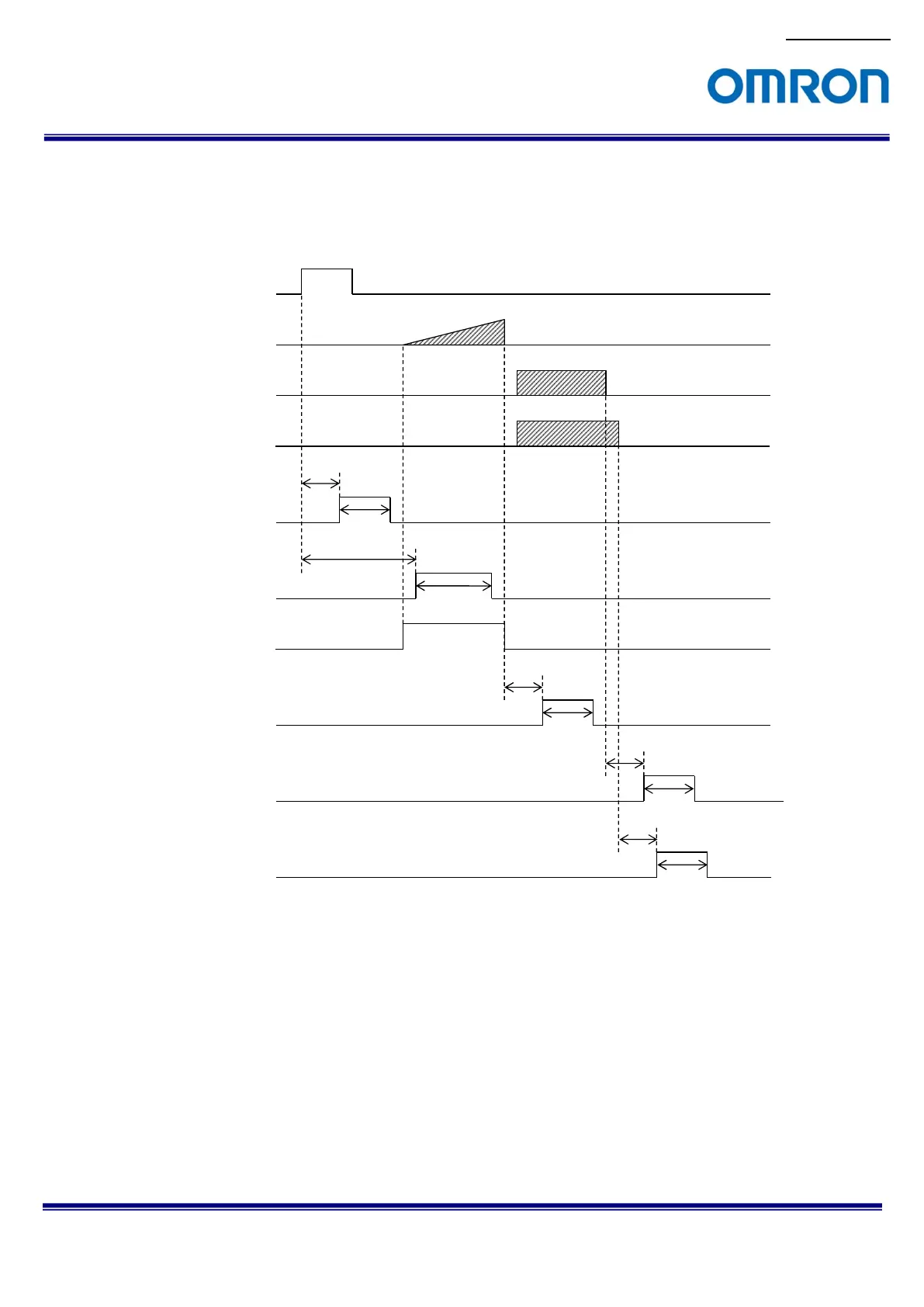

Line Source Timing
(*) This timing chart does not include delay of IO circuit
トリガー入力
露光
リードアウト
(センサー to FPGA)
映像出力
Trigger Out出力
Strobe Out
出力
Exposure Active
出力
Exposure End Out
出力
Frame End Out
出力
Transfer End Out
出力
TriggerOutDelay
TriggerOutOnTime
StrobeOutDelay
StrobeOutOnTime
TriggerOutDelay
TriggerOutOnTime
TriggerOutDelay
TriggerOutOnTime
TriggerOutDelay
TriggerOutOnTime
Trigger Input
Exposure
ReadOut (Sensor to FPGA)
Image Out
Trigger Out Output
Strobe Out Output
Exposure Active Output
Exposure End Out Output
Frame End Out Output
Transfer End Out Output
