1.4 Parameters and Menus
E5CK
1–9
This is the mode for setting expanded functions. In this mode, you can set
SP setting limitter, switching between advanced PID control or ON/OFF
control, program time unit, selection of step time/rate of rise programĆ
ming, time unit of ramp rise rate, and the time for automatic return to the
monitoring display.
This is the mode for setting optional functions. You can select this mode
only when an option unit is mounted in the controller. In this mode, you
can set the communications conditions, transfer output and event input
parameters to match the type of option unit mount in the controller.
This mode is provided so that the user can calibrate inputs and output.
When calibrating input, the selected input type is calibrated. Whereas,
transfer output can be calibrated only when the communication unit
(E53ĆCKF) is set in the controller.

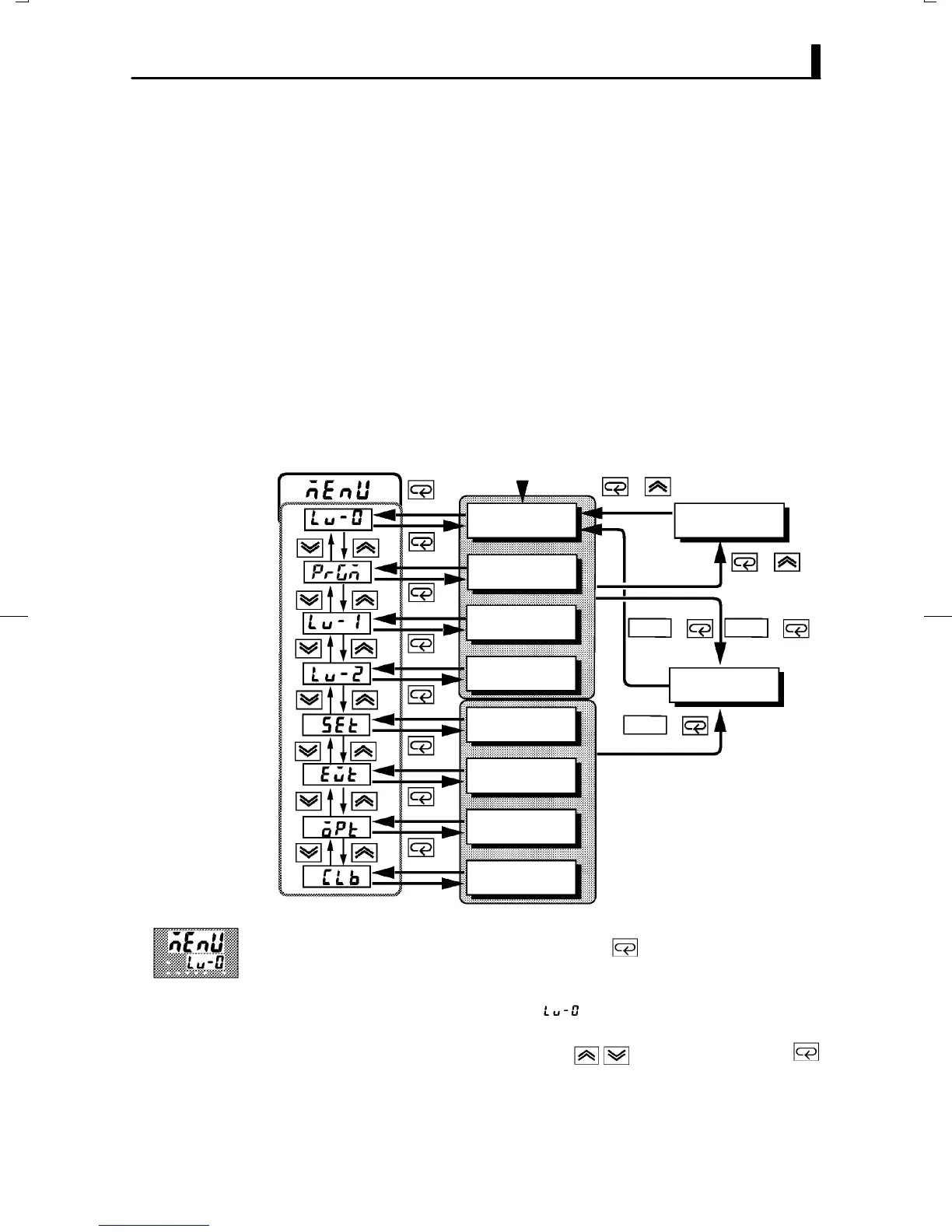

The following diagram shows the order in which modes are selected.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
Level 0 mode
Program mode
Level 2 mode
Setup mode
Expansion mode
Option mode
Calibration mode
Power ON
Level 1 mode
Manual mode
Protect mode
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
+
+
+
+
+
RUN/RST
RUN/RST
RUN/RST
Ă• To select the menu display in any of the above modes (excluding the proĆ
tect mode and manual mode), press the
key for 1 second minimum.
When you have selected the menu display, the previous mode is selected.
For example, if you selected the menu display while in the level 0 mode,
the No.2 display changes to [ ] as shown on the left.
Ă• To move to the desired mode after you have entered the menu display,
select the desired mode using the keys and hold down the
key for one second minimum. The display switches to the first parameter
of the mode that you specified.
Ă• Protected modes cannot be selected. Also, the menu display does not apĆ
pear when modes are protected up to the program mode.
F Expansion mode
F Option mode
F Calibration mode
JSelecting modes

Omron E5CK Specifications

General

Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP20
Control Type	PID
Input Type	Thermocouple, RTD
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Mounting Type	Panel
Display Type	Digital
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Dimensions	48 x 48 x 78 mm
Ambient Operating Humidity	25% to 85% RH
