Omron E5CK User Manual

E5CK
5–17

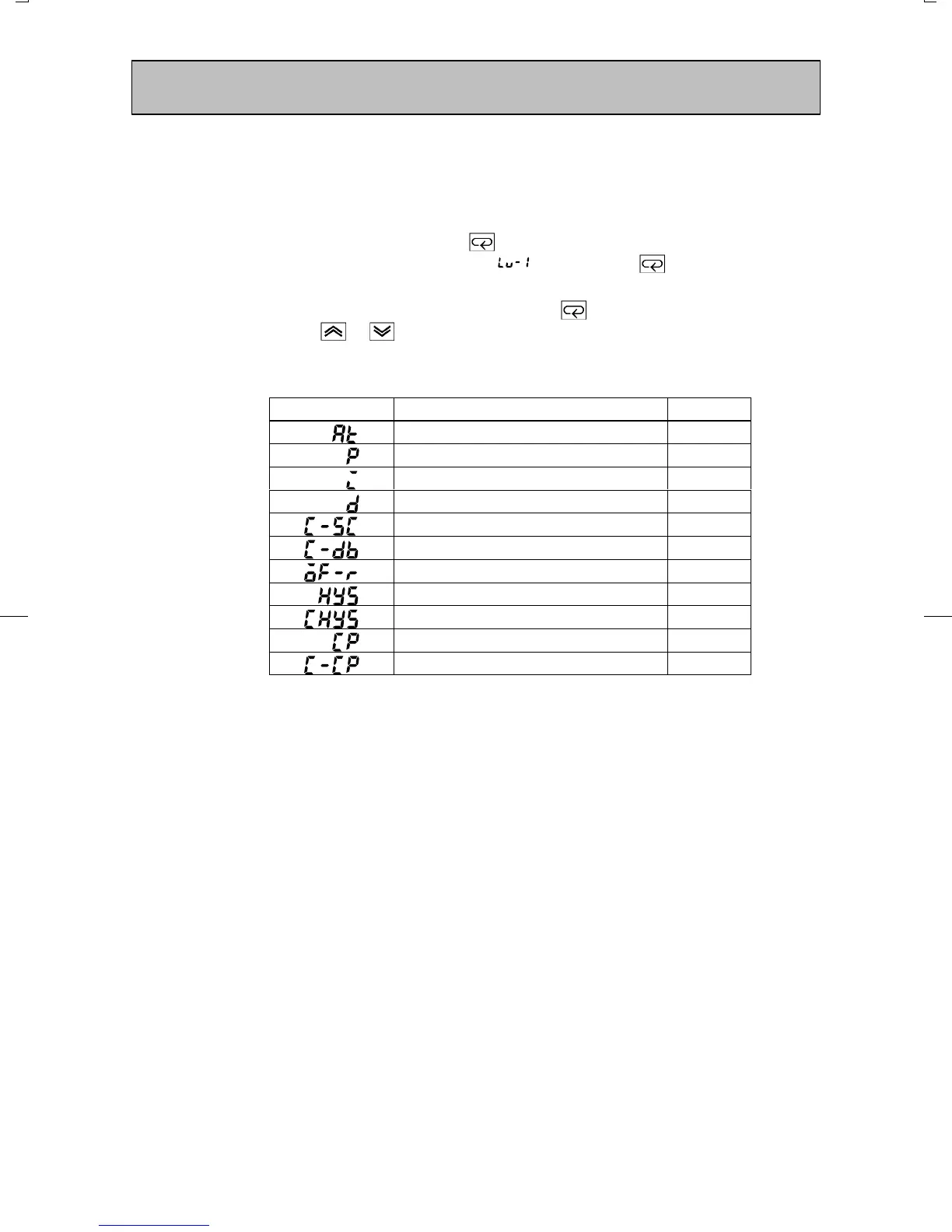

Ă• The parameters in this mode can be used only when the security" parameter (proĆ
tect mode) is set to 0" to 3".
Ă• This mode contains the main parameters for adjusting control, such as executing AT
(autoĆtuning), setting the control period, setting PID parameters.
Ă• To select this mode, press the
key for 1 second minimum. The display changes
to the menu display. If you select [
] then press the key for 1 second miniĆ
mum, the controller enters the level 1 mode.
Ă• To select parameters in this mode, press the
key. To change parameter settings,
use the
or keys.
Ă• The following table shows the parameters supported in this mode and the page where
the parameter is described.
Symbol
Parameter Name
Page
AT Execute/Cancel 5-18
Proportional band 5-18
Integral time 5-18
Derivative time 5-18
Cooling coefficient 5-19
Dead band 5-19
Manual reset value 5-20
Hysteresis (heat) 5-21
Hysteresis (cool) 5-21
Control period (heat) 5-22
Control period (cool) 5-22
Level 1 Mode

Omron E5CK Specifications

General

Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP20
Control Type	PID
Input Type	Thermocouple, RTD
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Mounting Type	Panel
Display Type	Digital
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Dimensions	48 x 48 x 78 mm
Ambient Operating Humidity	25% to 85% RH
