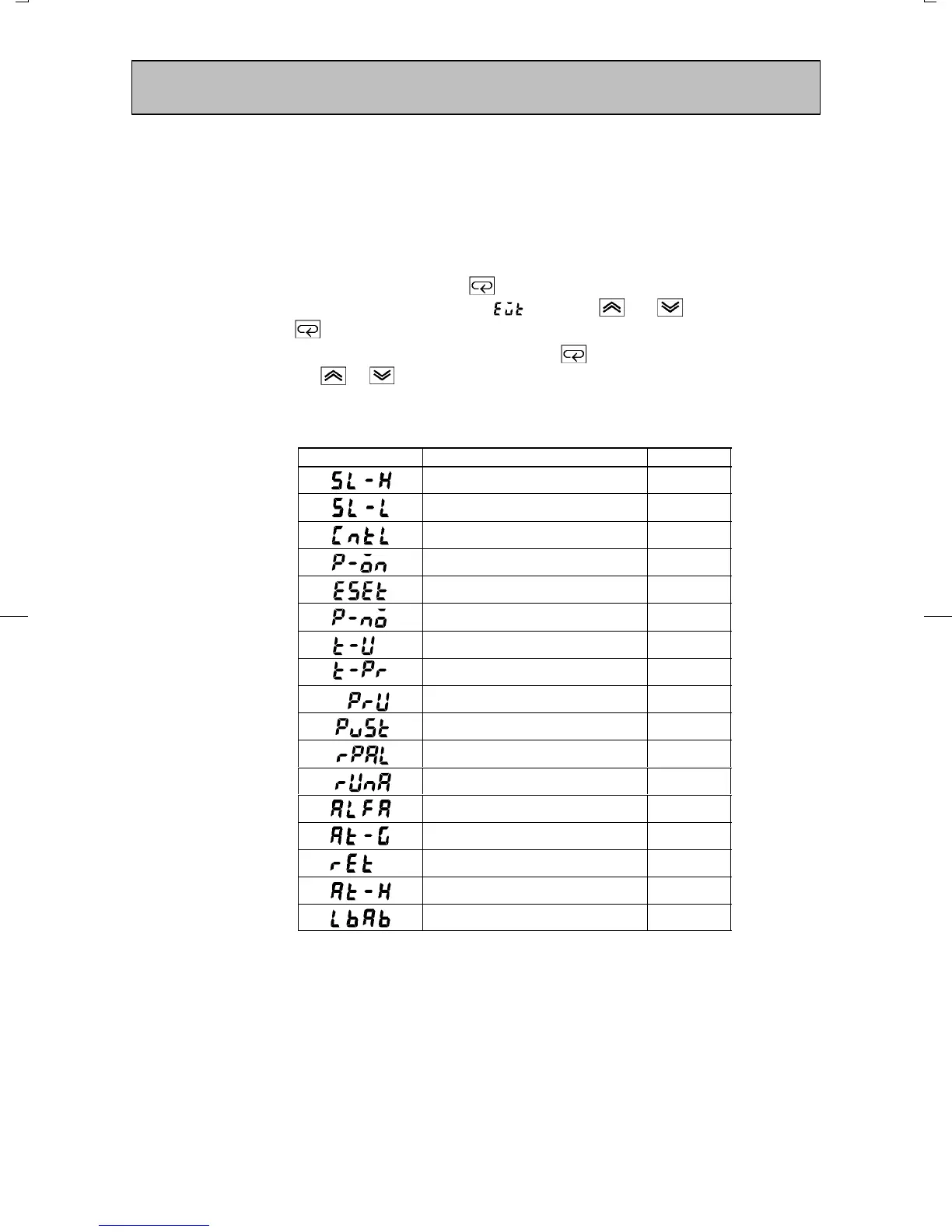

CHAPTER 5 PARAMETERS
E5CK
5–36
Ă The parameters in this mode can be used only when the security" parameter (proĆ
tect mode) is set to 0" and 1".
Ă This mode contains the parameters for setting expanded functions. These parameĆ
ters include parameters for setting the SP setting limitter, selecting advanced PID
and ON/OFF control, and setting the program time unit, step time/rate of rise proĆ
gramming, time unit of ramp rate and the automatic return of display mode.
Ă To select this mode, press the
key for 1 second minimum. The display changes
to the menu display. If you select [
] using the and keys, and then press
the
key for 1 second minimum, the controller enters the expansion mode.
Ă To select parameters in this mode, press the
key. To change parameter settings,
use the
or keys.
Ă The following table shows the parameters supported in this mode and the page where
the parameter is described.
Symbol Parameter Name Page
Set point upper limit 5-37
Set point lower limit 5-37
PID/ON/OFF 5-37
Operation at power ON 5-38
End condition 5-38
Number of patterns 5-39
Program time unit 5-39
Step time/Rate of rise programming 5-40
Time unit of ramp rate 5-40
PV start 5-41
Alarm during ramp step enable 5-41
Run all enable 5-41
α 5-42
AT calculated gain 5-42
Automatic return of display mode 5-43
AT hysteresis 5-43
LBA detection width 5-43
Expansion Mode
