3.5 Setting Patterns
E5CK
3–13
3.5 Setting Patterns
If you want to set parameters in the program mode during controller operation, you must first stop operation.
Operation may continue only in special instances, for example, to change SP during controller operation.
Ă• This section describes the procedure to follow when setting two or more
patterns. Select the number of patterns in the number of patterns" paĆ
rameter (expansion mode).
Ă• Parameters that you use frequently for programming can be set in the

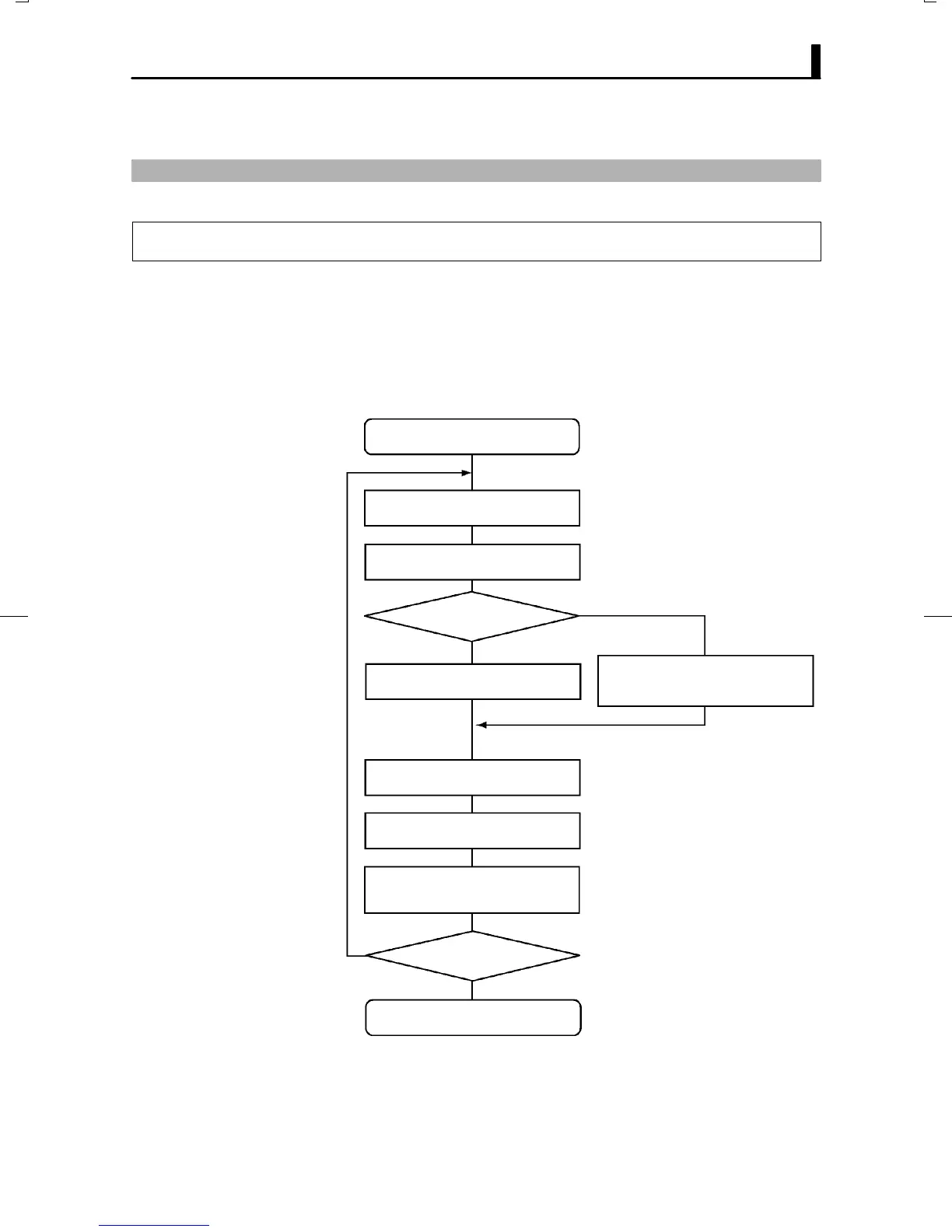

program mode." The flow below shows the parameters that are availĆ
able in the program mode and the order in which they are set.
Select the program mode.
Select pattern No.
Set number of steps
Step time/Rate of rise
programming
Set step SP/step time
Set pattern execution count
Set alarm value
Set time signal 1, 2
Step/ON time/OFF time
All patterns completed?
End of program
Set SP/Ramp time
/Soak time of each step
Step time setting
n
y
Rate of rise setting
This chapter describes the basic operation of programming. For details on
the following parameters, refer to Chapter 4 Applied Operation:
Step time/Rate of rise programming", Pattern execution count", Time
signal 1, 2"
To Next Page
