CHAPTER 5 PARAMETERS
E5CK
5–44
Ă• The parameters in this mode can be used only when the security" parameter (proĆ
tect mode) is set to 0" and 1".
Ă• You can select this mode only on controllers that support optional functions. In this
mode, you can set the communications conditions, transfer output and event input
parameters to match the type of optional function supported on the controller.
Ă• To select this mode, press the
key for 1 second minimum. The display changes
to the menu display. If you select [
] using the and keys, and then press
the
key for 1 second minimum, the controller enters the option mode.
Ă• To select parameters in this mode, press the
key. To change parameter settings,
use the
or keys.

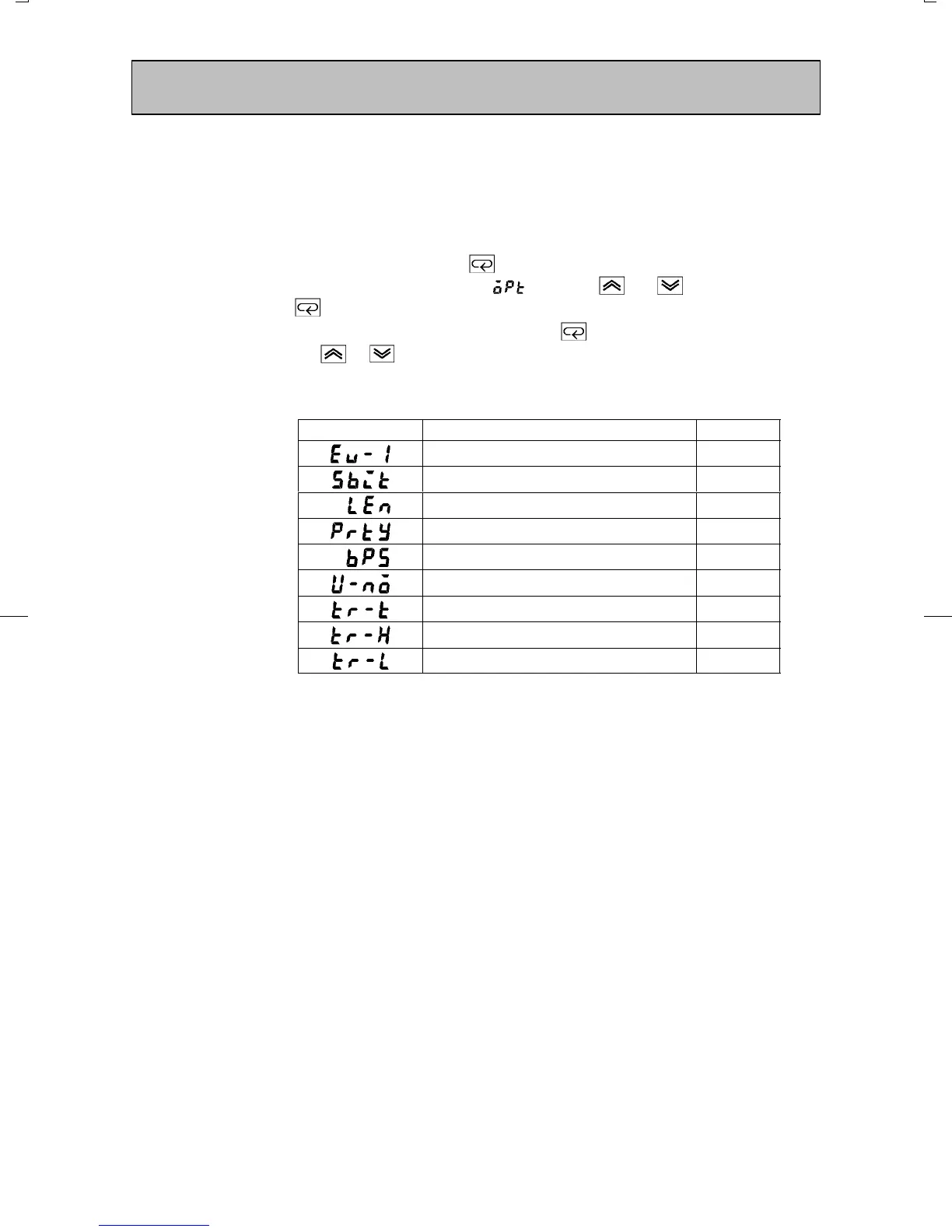

Ă• The following table shows the parameters supported in this mode and the page where
the parameter is described.
Symbol Parameter Name Page
Event input assignment 1 5-45
Communication stop bit 5-46
Communication data length 5-46
Communication parity 5-46
Communication baud rate 5-46
Communication unit No. 5-46
Transfer output type 5-47
Transfer output upper limit 5-47
Transfer output lower limit 5-47
Option Mode

Omron E5CK Specifications

General

Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP20
Control Type	PID
Input Type	Thermocouple, RTD
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Mounting Type	Panel
Display Type	Digital
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Dimensions	48 x 48 x 78 mm
Ambient Operating Humidity	25% to 85% RH
