Omron E5CK User Manual

E5CK
5–43

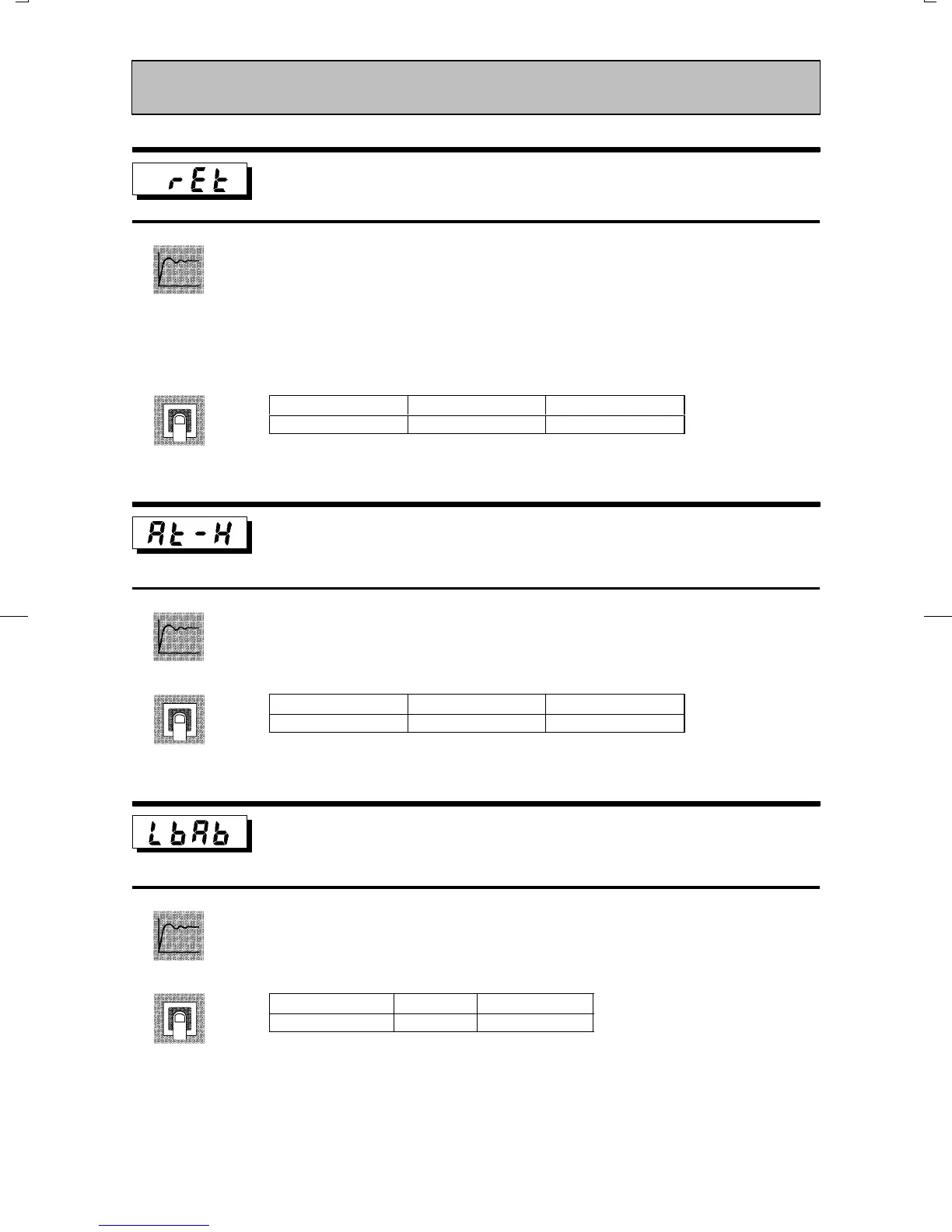

Automatic return of display mode
Ă• If you do not operate any of the controller keys for the time set in this parameter when
in levels 0 to 2 and program modes, the display automatically returns to the PV/PresĆ
ent SP display.
Ă• When this parameter is set to 0", this function is disabled. (That is, the display does
not automatically return to the PV/Present SP display.)
Ă• This parameter is disabled while the menu display is displayed.
Setting Range
Unit Default
0 to 99 Second 0
AT hysteresis
Conditions of Use
The control must be advanced PID con-
trol.
Ă• Normally, use the factory setting.
Ă• The levels of limit cycle operations during AT execution are given hysteresis at event
ON/OFF switching. This parameter sets this hysteresis width.
Setting Range
Unit Default
0.1 to 9.9 %FS 0.2
LBA detection width
Conditions of Use
The LBA (Loop Break Alarm) function
must be assigned as an output.
Ă• This parameter can be used when LBA is assigned as an output.
Ă• When the change width of the manipulated variable is below the width set in this
parameter, the controller regards this as detection of an LBA.
Setting Range
Unit Default
0.0 to 999.9 %FS 0.2
Expansion Mode
Function
Setting
Function
Setting
Function
Setting

Omron E5CK Specifications

General

Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP20
Control Type	PID
Input Type	Thermocouple, RTD
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Mounting Type	Panel
Display Type	Digital
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Dimensions	48 x 48 x 78 mm
Ambient Operating Humidity	25% to 85% RH
