E5CK
5–13

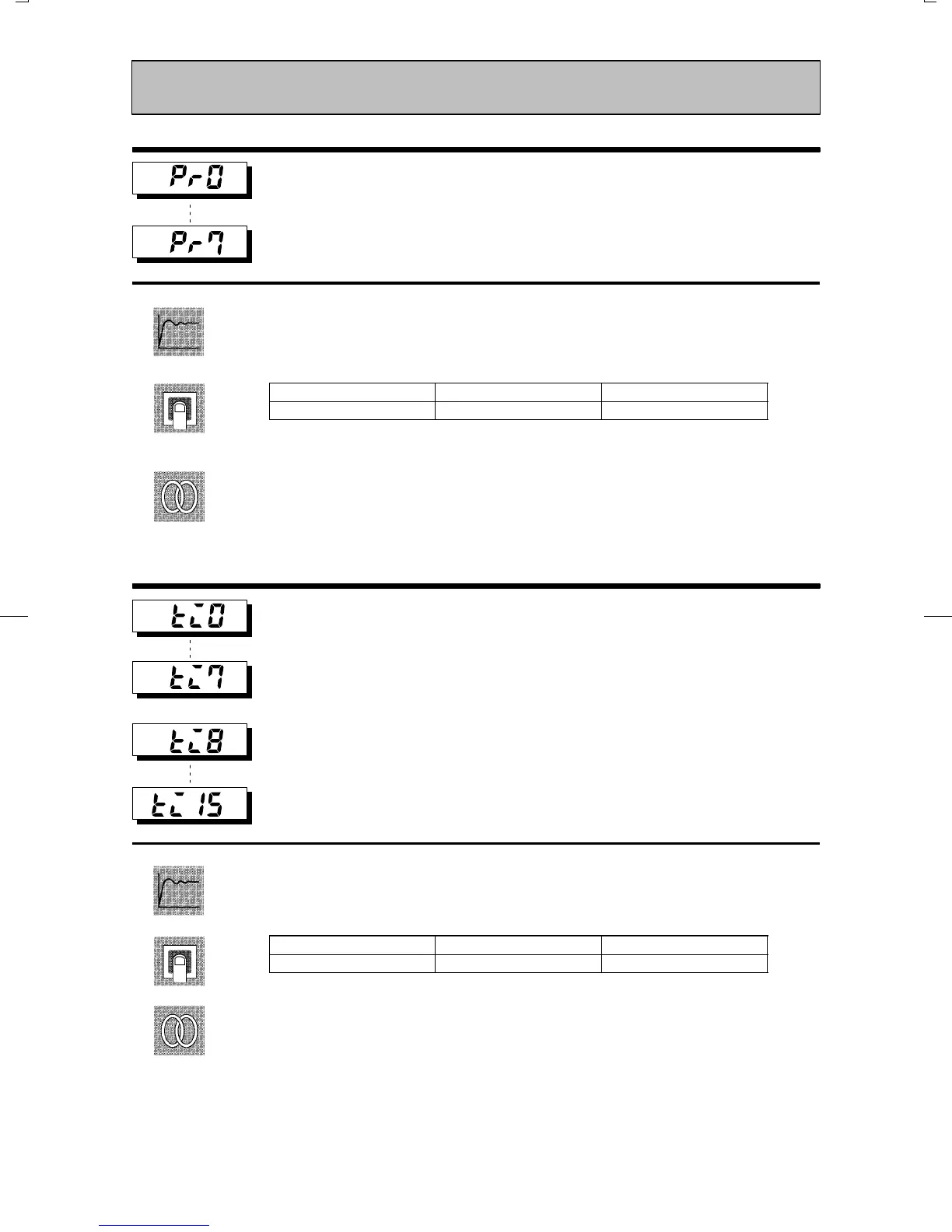

Ramp rate 0
to
Ramp rate 7
Conditions of Use
Within the number of steps only in the rate
of rise programing.
Ă• Sets the degree of change per time unit of ramp rate in the step time ramp step.
Setting Range Unit Default
0 to 9999 EU/Time unit of ramp rate 0
0: The ramp step is skipped.
ĂRelated description
4.3 Ramp Rise Rate Setup Program (page 4Ć9)
ĂRelated parameters
All parameters in the program mode
Step time/Rate of rise programming" Time unit of ramp rate" (expansion mode)
Step 0 time (Step time)
Soak time 0 (Rate of rise programming)
to
Step 7 time (Step time)
Soak time 7 (Rate of rise programming)
Step 8 time (Step time)
Step 15 time (Step time)
Ă• Sets the time of steps 0 to 15 when the step time is set.
Ă• Sets soak steps 0 to 7 when the rate of rise programming is set.
Setting Range Unit Default
0.00 to 99.59 Program time unit 0.00
ĂRelated description
3.5 Setting Patterns (page 3Ć14)
4.3 Ramp Rise Rate Setup Program (page 4Ć9)
ĂRelated parameters
All parameters in the program mode
Step time/Rate of rise programming" Program time unit" Time unit of ramp
rate" (expansion mode)
Program Mode
Function
Setting
See
Conditions of Use
Within the number of steps.
to
Function
Setting
See
