Omron E5CK User Manual

CHAPTER 5 PARAMETERS
E5CK
5–20

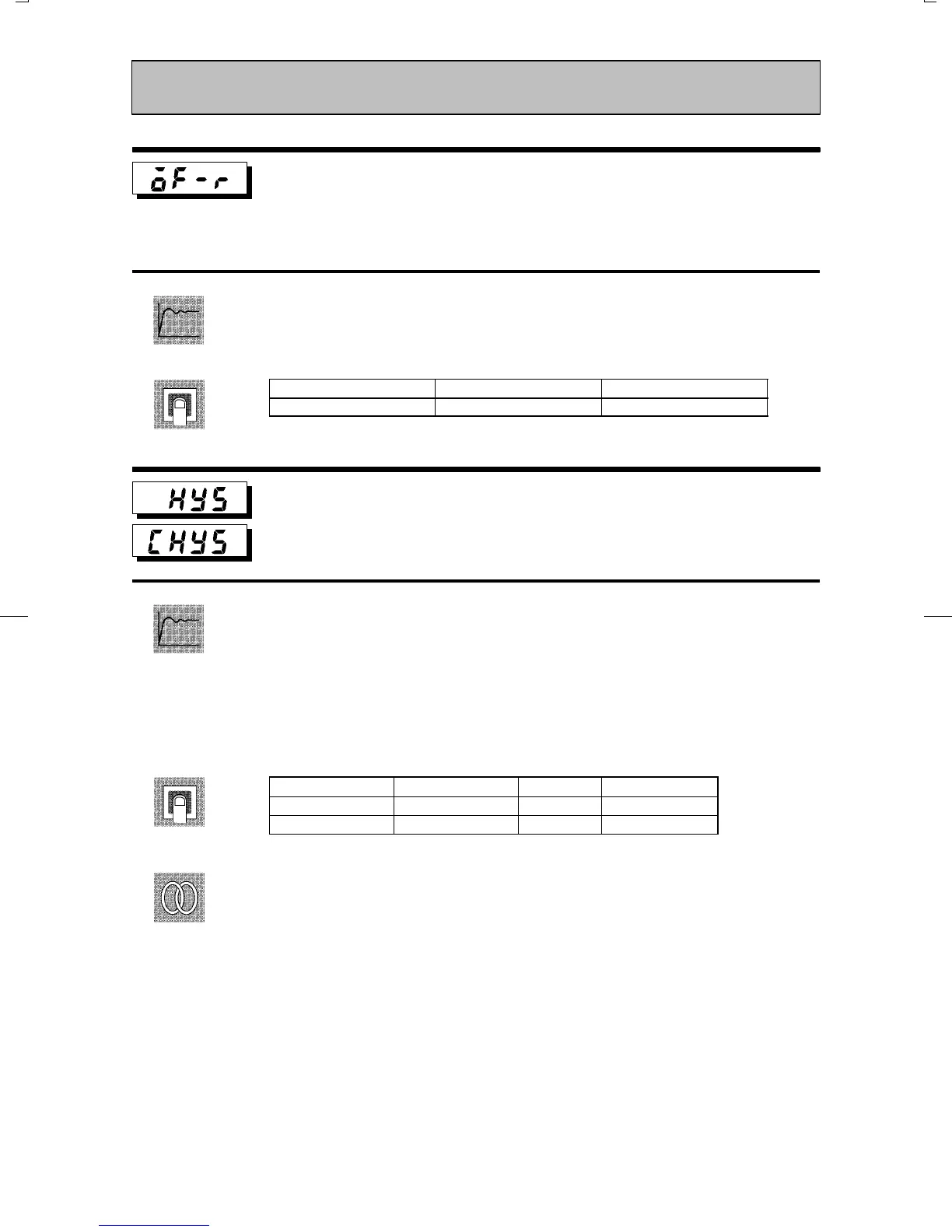

Manual reset value
Conditions of Use
The control must be either standard con-
trol or advanced PID control, and the “inte-
gral time” parameter must be set to “0”.
Ă• Sets the required manipulated variable to remove offset during stabilization of P or
PD control.
Setting Range Unit Default
0.0 to 100.0 % 50.0
Hysteresis (heat)
Hysteresis (cool)
Conditions of Use
The control system must be ON/OFF con-
trol.
Ă• Sets the hysteresis for ensuring stable operation at ON/OFF switching.
Ă• In a standard control system, use the hysteresis (heat)" parameter. The hysteresis
(cool)" parameter cannot be used.
Ă• In a heating and cooling control system, the hysteresis can be set independently for
heating and cooling. Use the hysteresis (heat)" parameter to set the heating side hysĆ
teresis, and use the hysteresis (cool)" parameter to set the cooling side hysteresis.
Parameter Setting Range
Unit Default
Hysteresis (heat) 0.01 to 99.99 %FS 0.10
Hysteresis (cool) 0.01 to 99.99 %FS 0.10
ĂRelated description
4.1 Selecting the Control Method/ON/OFF control (page 4Ć5)
ĂRelated parameters
Control output 1 assignment" Control output 2 assignment" (setup mode)
PID/ON/OFF" (expansion mode)
Level 1 Mode
Function
Setting
Function
Setting
See

Omron E5CK Specifications

General

Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP20
Control Type	PID
Input Type	Thermocouple, RTD
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Mounting Type	Panel
Display Type	Digital
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Dimensions	48 x 48 x 78 mm
Ambient Operating Humidity	25% to 85% RH
