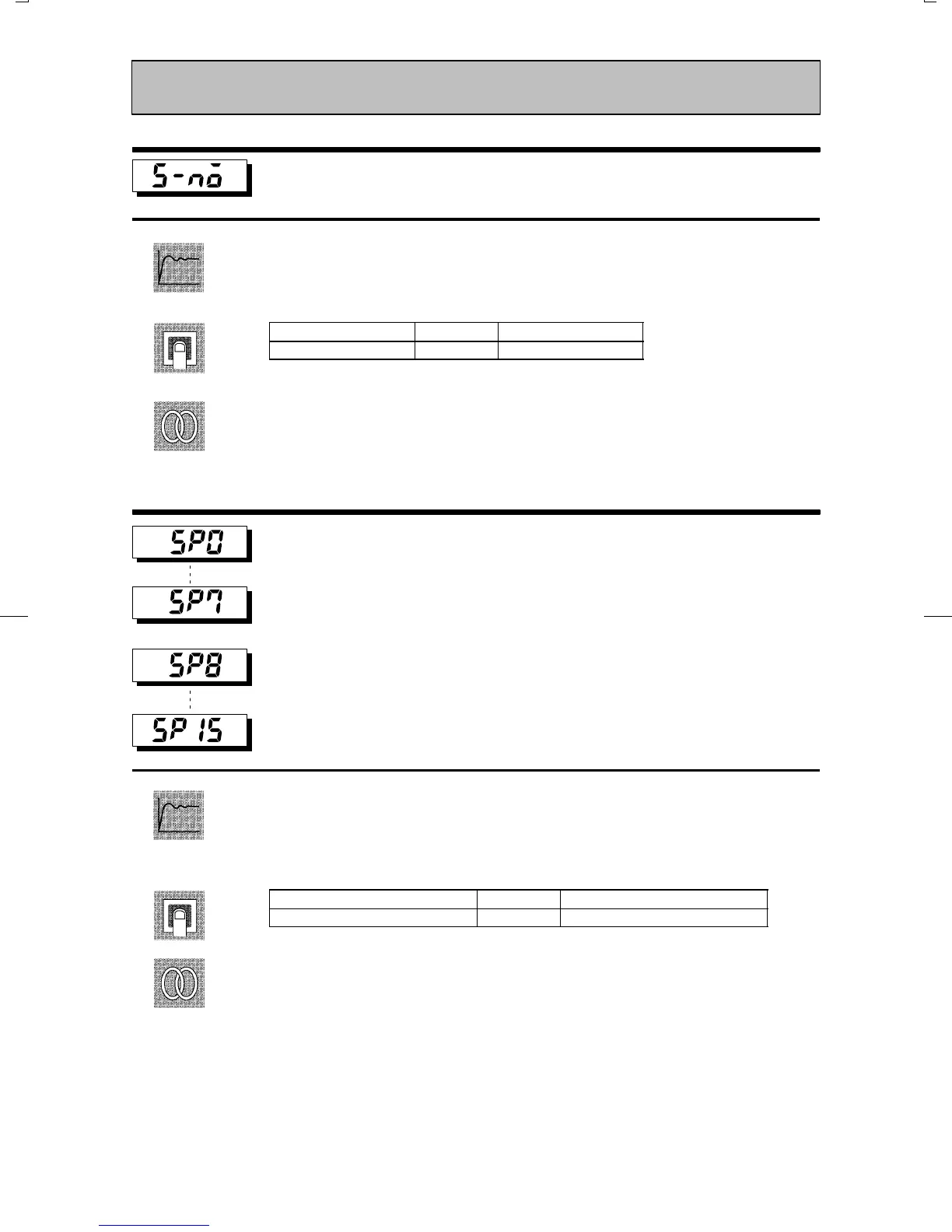

CHAPTER 5 PARAMETERS
E5CK
5–12
Number of steps
Ă• Specifies the number of steps in the current pattern.
Setting Range Unit Default
1 to 16 None 8
ĂRelated description
3.5 Setting Patterns (page 3Ć14)
ĂRelated parameter
All parameters in the program mode
Step 0 time (Step time)
Target SP 0 (Rate of rise programming)
to
Step 7 SP (Step time)
Target SP 7 (Rate of rise programming)
Step 8 SP (Step time)
Step 15 SP (Step time)
Ă• Sets the SP of steps 0 to 15 when the step time is set.
Ă• Sets target SP 0 to 7 when the rate of rise programming is set.
Ă• During temperature input, the decimal point position is dependent on the currently
selected sensor, and during analog input on the results of scaling.
Setting Range Unit Default
SP lower limit to SP upper limit EU 0
ĂRelated description
3.5 Setting Patterns (page 3Ć14)
4.3 Ramp Rise Rate Setup Program (page 4Ć9)
ĂRelated parameters
All parameters in the program mode
Input type" Scaling upper limit" Scaling lower limit" Decimal point" (setup mode)
Step time/Rate of rise programming" (expansion mode)
Program Mode
Function
Setting
See
Conditions of Use
Within the number of steps.
to
Function
Setting
See
To Next Page
