4.8 LBA
E5CK
4–19
4.8 LBA
Ă• The LBA function can be used only when it is assigned as an output.
Also, the LBA function does not work when a memory error or A/D conĆ
verter error results.
Ă• LBA (Loop Break Alarm) is a function for judging that an error has ocĆ
curred somewhere on the control loop and for outputting an alarm when
the process value does not change with the manipulated variable at a
maximum or minimum state. Accordingly, the LBA function can be used
as a means for detecting a malfunctioning control loop.
Ă• Normally, when output is set to maximum or minimum, the process valĆ
ue rises or falls after the dead time has elapsed. LBA is output if the proĆ
cess value does not change in the predicted direction after a fixed amount
of time has elapsed. This fixed amount of time is the LBA detection
time."
Ă• LBA operation sometimes becomes unstable when the process value
fluctuates considerably due to the control characteristics. The LBA
detection width is provided so that changes with respect to output can
be correctly detected. Changes smaller than the detection width due to
LBA detection timing are not regarded as changes.

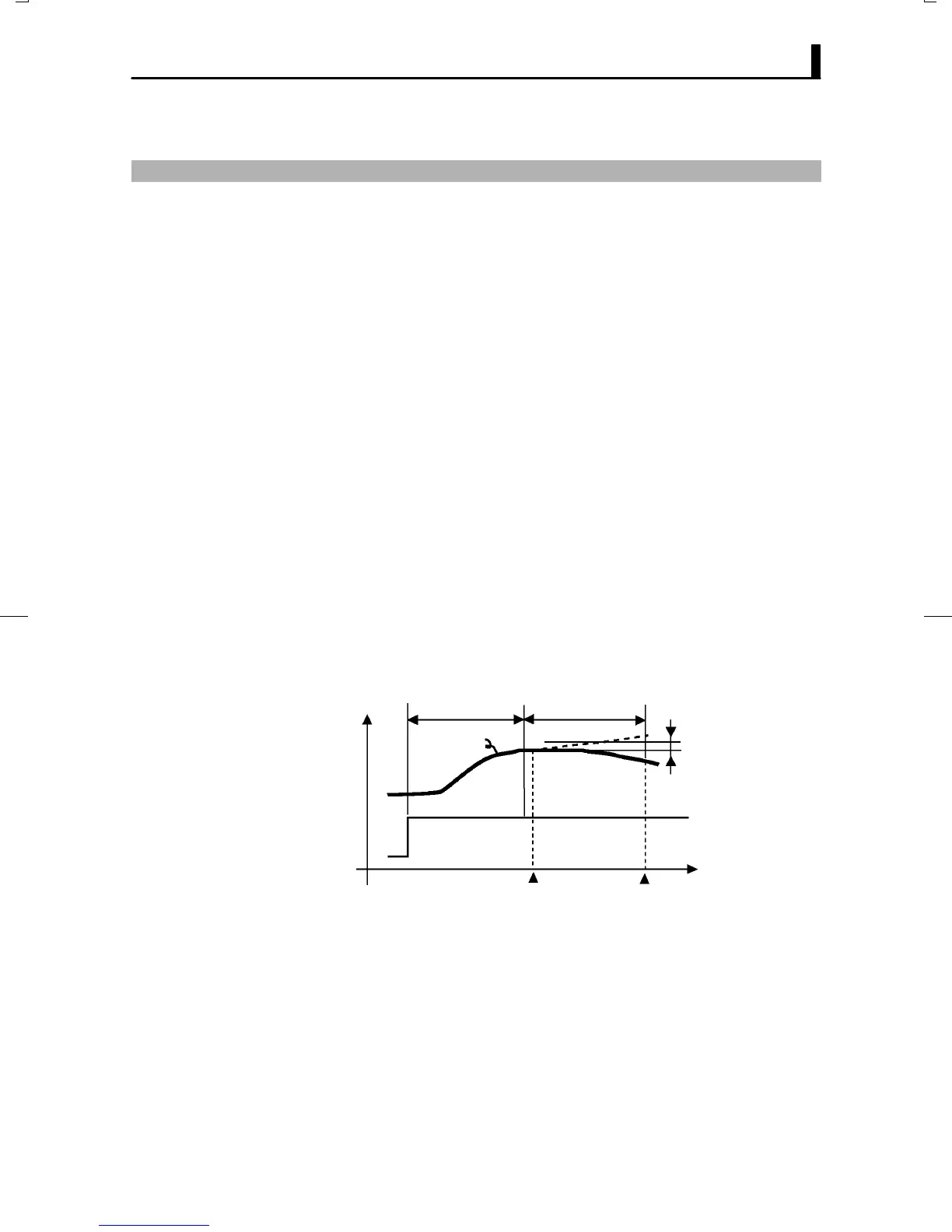

Ă• The following example describes what happens when a heater burnout
occurs at maximum output.
PV
LBA=ON
LBA detection time
LBA detection width
Output
Time
Heater burnout
LBA detection time
Ă• LBA judgment is carried out at each LBA detection time from the point
of maximum output. In the above figure, the process value (PV) is changĆ
ing greatly at the 1st judgment time band, so LBA remains OFF.
Ă• At the 2nd judgment time band, the process value increases as indicated
by the broken line if the process value is normal. This means that the
change width exceeds the LBA detection width, and LBA output remains
OFF.
Ă• If the heater burns out at the point shown in the above figure, the process
value decreases." Accordingly, it is judged that the process value is not
changing in the increasing direction" at the 2nd judgment time band
and the LBA output becomes ON.
F LBA detection
time
F LBA detection
width
F LBA detection
example
