Omron E5CK User Manual

CHAPTER 4 APPLIED OPERATION
E5CK
4–14

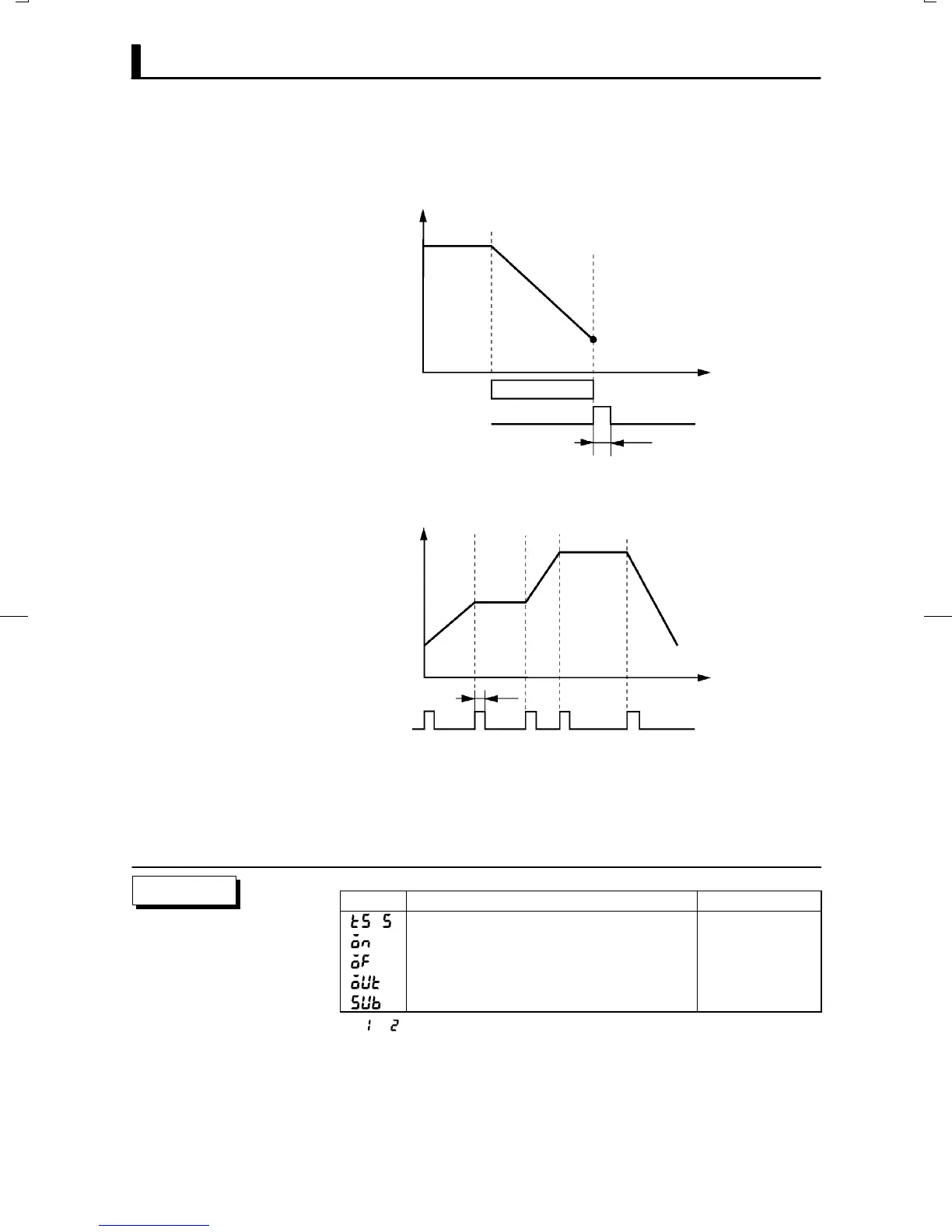

JProgram status
Ă• OneĆsecond pulse signal is output after the final step is completed.
Final step
Program end output
Time
1s
Ă• OneĆsecond pulse signal is output at the beginning of each step.
Stage output
Time
1s
Symbol Parameter Name: Mode Description

Time signalset step : Program Time signal

Time signalON time : Program Time signal

Time signalON time : Program Time signal

Control outputassignment : Setup Program status

Auxiliary outputassignment : Setup Program status
 : to
F Program end
F Stage output
Parameters

Omron E5CK Specifications

General

Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP20
Control Type	PID
Input Type	Thermocouple, RTD
Output Type	Relay, Voltage, Current
Power Supply Voltage	100 to 240 VAC
Mounting Type	Panel
Display Type	Digital
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Dimensions	48 x 48 x 78 mm
Ambient Operating Humidity	25% to 85% RH
