2-4 Description of Screen Components
2
2-4-5 Edit Pane
This allows you to access the sensor information, the connection with the sensor, the main screen of
each line, etc.
Additional Information
• For details on the settings in the sensor connection screen, refer to 3-2 Establishing an
Online Connection with a Vision Sensor on page 3-4.
• If there is already a different FH slave device in the project with an established online con-
nection, you will not be able to establish an online connection for a new FH slave device.
First, switch the other FH slave device from online to offline.

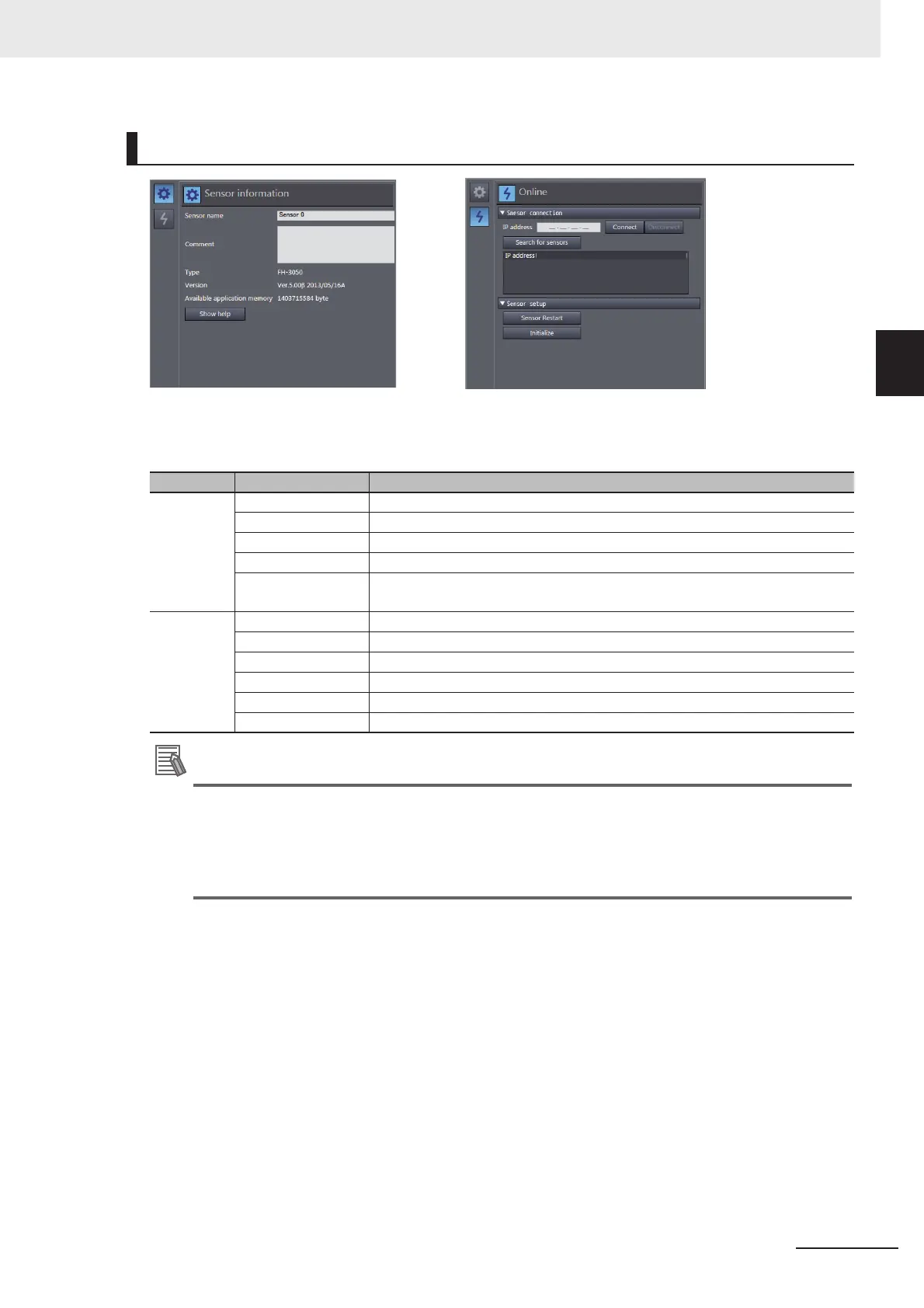

Sensor connection screen
Group Item Description
Sensor
information
Sensor name Allows you to change the sensor name.
Comment Allows you to enter a comment for the sensor.
Type Displays the sensor type information.
Version Displays the sensor version information.
Available applica-
tion memory
Displays the amount of available application memory.
Online
IP address Sets the IP address of the sensor for online connections.
Connect Establishes an online connection to the sensor with the specified IP address.
Disconnect Disconnects the sensor currently connected with an online connection.
Search for sensors Searches for sensors within the same network.
Sensor Restart Restarts the sensor.
Initialize Initializes the sensor.

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
