Omron fh series Operation Manual

2 Basic Operations
2 - 14
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
This allows you to check the measurement results.
z
Status display area

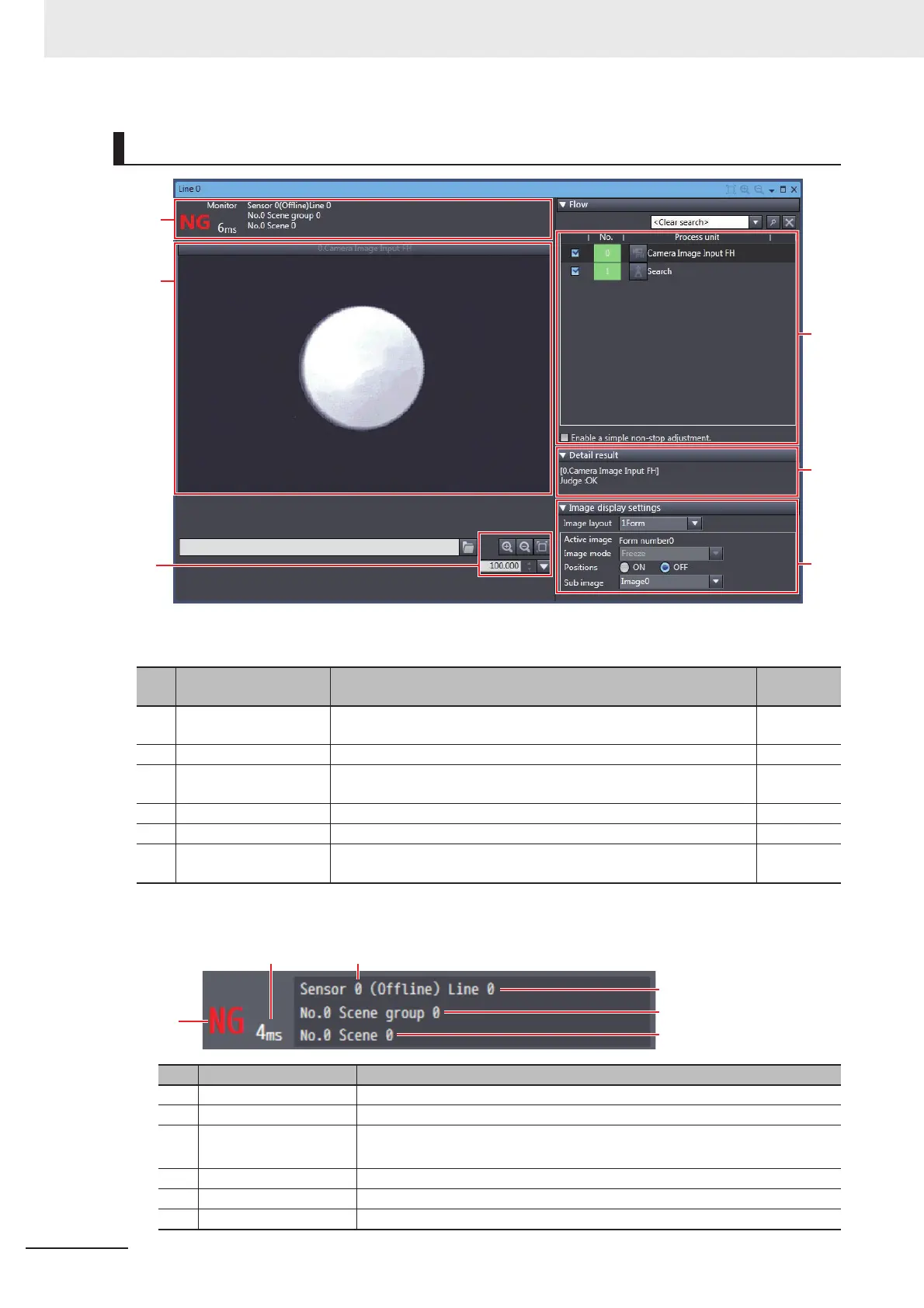

Monitor window
No. Screen Component Description
Reference
Page
1 Status display area
Allows you to access the sensor information, the connection with
the sensor, the main screen of each line, etc.
P. 2 - 1 4
2 Image display area Allows you to check the measurement results. P. 2-15
3
Image size control
section
Enlarges or reduces the selected image. P. 2-15
4 Flow Displays the processing flow for the relevant line or current scene. P. 2-16
5 Detail result Displays the results for the processing unit selected in the flow. P. 2-17
6 Image display settings
Sets the displays settings for images displayed in the image display
area.
P. 2-17
No. Item Description
1 Judgment result Displays the judgment result (OK or NG).
2 Processing time Displays the processing time for the most recent measurement process.
3
Sensor name and IP
address
Displays the sensor name and IP address.
When the sensor is offline, "Offline" is displayed instead of the IP address.
4 Line name Displays the line for which information is currently being displayed.
5 Scene group name Displays the current scene group number and scene group name.
6 Scene name Displays the current scene number and scene name.
1)
2)
3)
4)
5)
6)
1)
4)
5)
6)
2) 3)

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
