2 - 15
2 Basic Operations
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
2-4 Description of Screen Components
2
2-4-5 Edit Pane
z

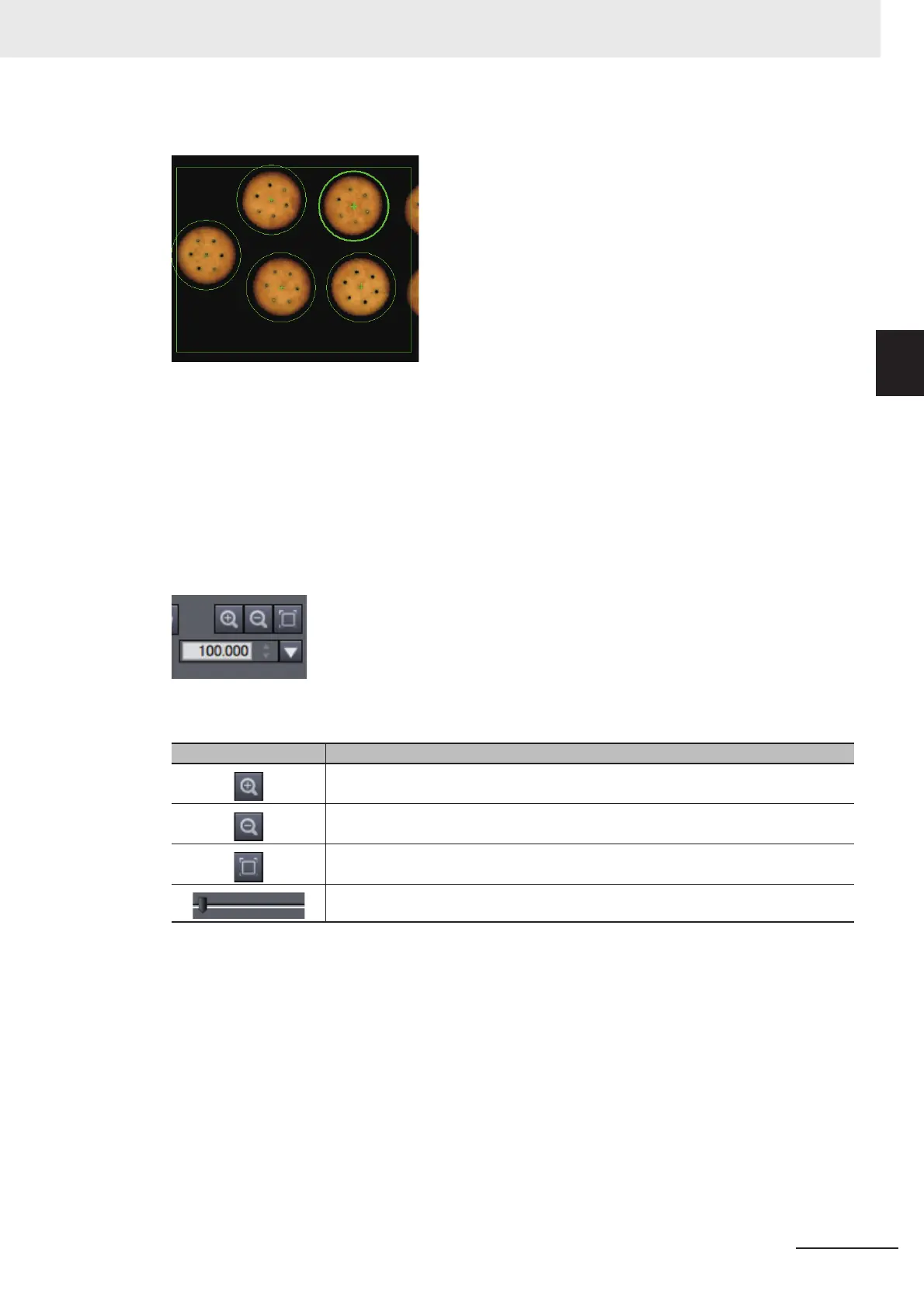

Image display area
This displays the image and measurement result (graphic) for the processing unit selected in the
flow display.
The settings for image display in the image display area can be changed in the Image display set-
tings menu. For details on the Image display settings menu, refer to Image display settings on page
2-17.
While an image is displayed enlarged, you can change the display area by left-clicking and dragging
the displayed image.
z
Image size control section
This allows you to enlarge or reduce the selected image.
Button Description
Enlarges the image. Image display is enlarged in 20% steps. (Upper limit: 1600%)
Reduces the image. Image display is reduced in 20% steps. (Lower limit: 1%)
Makes the image fit the display frame.
Enlarges or reduces the image.

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
