Vision System FH Series Operation Manual for Sysmac Studio (Z343)
2-4 Description of Screen Components
2
2-4-5 Edit Pane
z

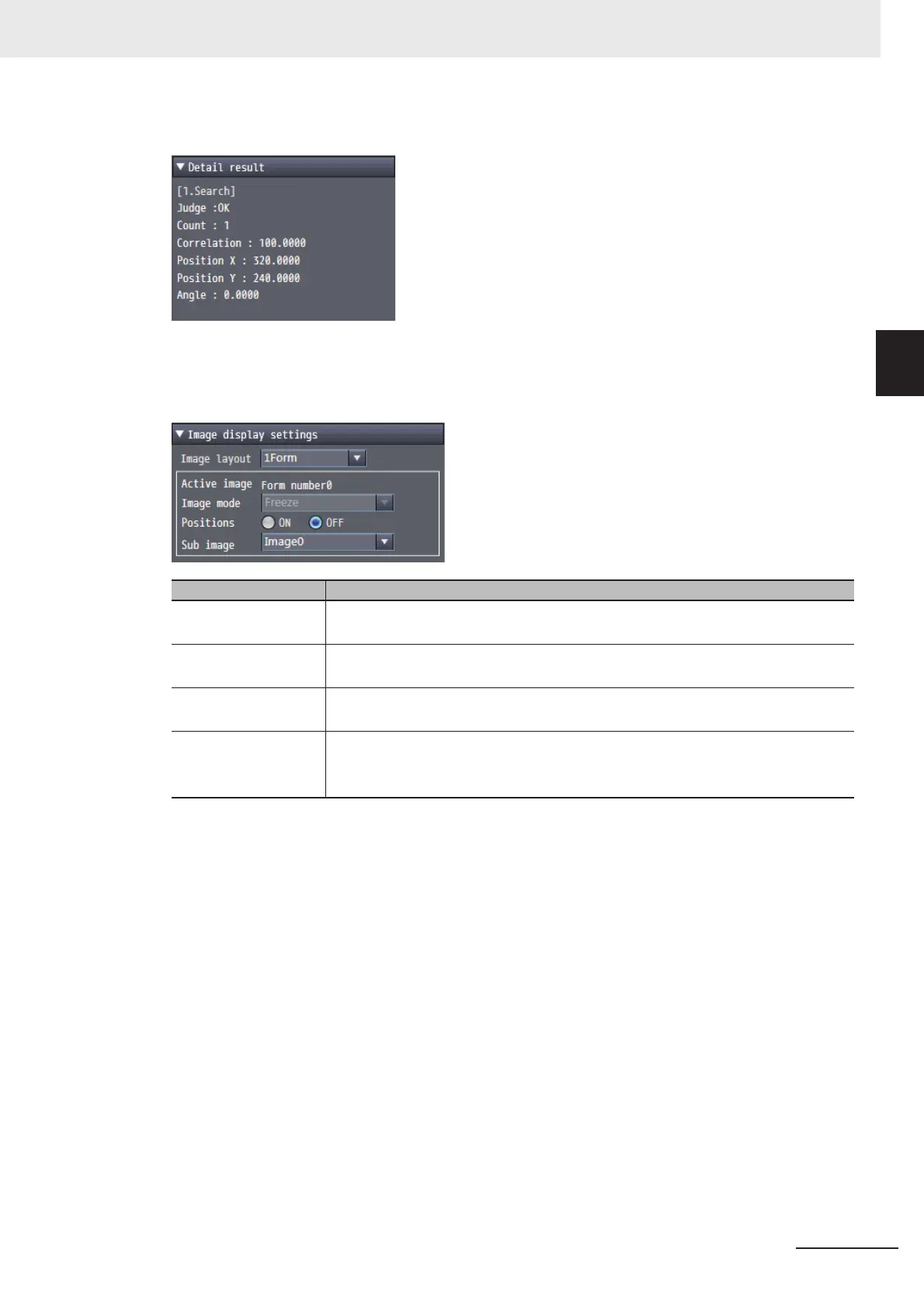

Detail result
This displays the results for the processing unit selected in the flow.
z
Image display settings
This sets the displays settings for images displayed in the image display area.
Item Description
Image layout
Selects the number of images to display.
Selection items: 1Form, 2Form, and 4Form
Image mode
Selects the image mode for the image with the focus on it.
Selection items: Through, Freeze, and NG image
Positions
Selects position list display for the image with the focus on it.
Selection items: OFF and ON
Sub image
Selects the sub image number for the image with the focus on it.
Available sub-image numbers vary depending on the processing item.
Select items: Image0, Image1,..., image31

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
