Omron fh series Operation Manual

2 Basic Operations
2 - 16
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
z

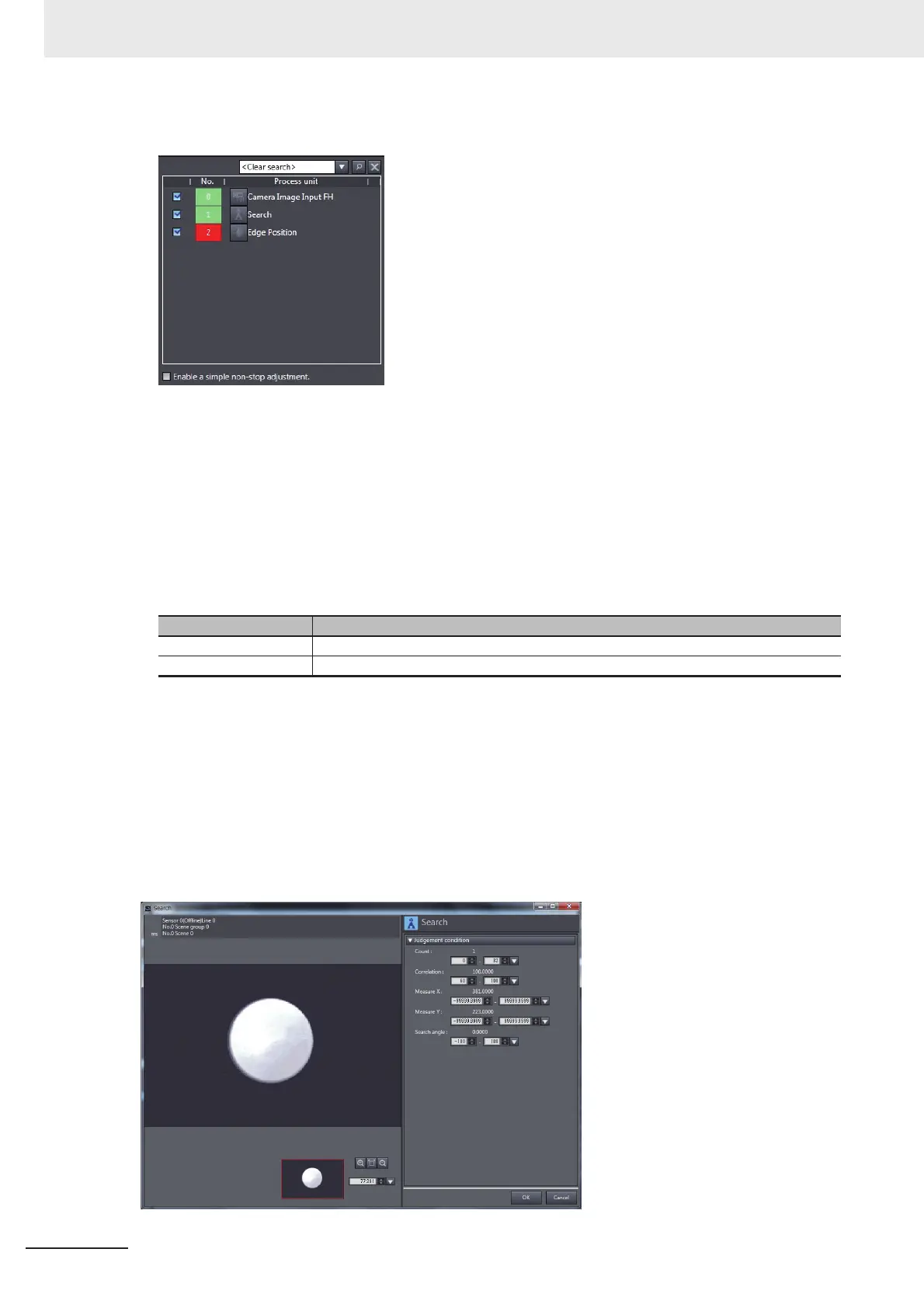

Flow
This displays the processing flow for the relevant line or current scene.
If a processing unit displayed in the list is selected, the following display information is linked and so
changes accordingly.
• Image display information
• Detailed result display information
If multiple images are displayed, the display information of the image with the focus on it changes.
If a processing unit is searched in the search area, the focus moves to the found processing unit.
With this tool, it is possible to select a processing unit to be used for measurement. The measure-
ments whose processing units with the checkmark removed will not be performed.
Check [Enable Simplified Non-stop Adjustment] to adjust the judgement conditions for each pro-
cessing unit.
The judgement condition editing pane Opens by the following methods:
• Select [Edit] from the context menu of the relevant processing unit within the measurement flow
• Click the icon of the relevant processing unit
Item Description
Search Searches for the specified processing unit from within the processing flow.
Flow list Displays the processing flow for the relevant line or current scene.

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
