4 - 7
4 Configuring Measurement Settings
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
4-2 Editing a Processing Unit
4
4-2-2 Editing an Area

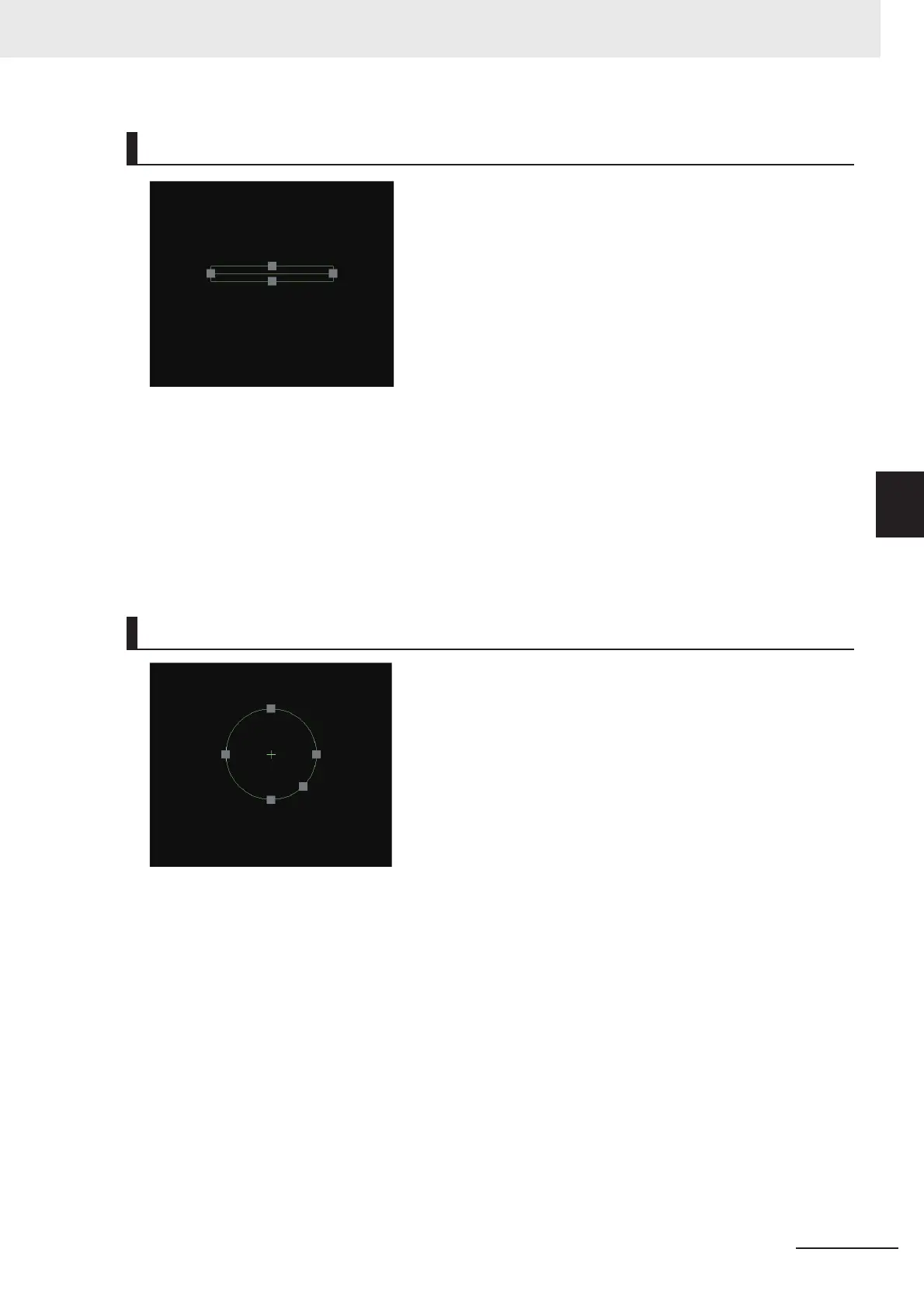

This function draws a wide line. You can change the size or direction by dragging the following vertices.
•Vertex (1)
You can change the length or direction of the line by changing the start point or end point.
•Vertex (2)
These allow you to change the width of the line.
The line can be moved by clicking and then dragging the inside of the area.
This function draws a circle or ellipse. You can change the size by dragging the following vertices.
•Vertex (1)
These allow you to change the overall size while maintaining the XY ratio.
•Vertex (2)
These allow you change the size in the X direction.
•Vertex (3)
These allow you change the size in the Y direction.
The eclipse can be moved by clicking and then dragging the inside of the area.
Wide line
Ellipse
1)
1)
1)
1)
2)
2)
2)
2)
2)
2)
2)
2)
3)
3)
1)
1)
3)
3)
