Transistor Output Unit C200H-OD218 (32 Points)
Max. Switching Capacity 16 mA 4.5 VDC to 100 mA 26.4 VDC (see below)
Min. Switching Capacity None
Leakage Current 0.1 mA max.
Residual Voltage 0.8 V max.
ON Response Time 0.1 ms max.
OFF Response Time 0.4 ms max.
No. of Circuits 1 (32 points/common)
Internal Current Consumption 180 mA 5 VDC max.
Fuse Rating 3.5 A (The fuse is not user-replacable.)
Power for External Supply
110 mA 5 to 24 VDC10% min.
(3.4 mA × number of ON pts)
Weight 180 g max.
Dimensions C-shape

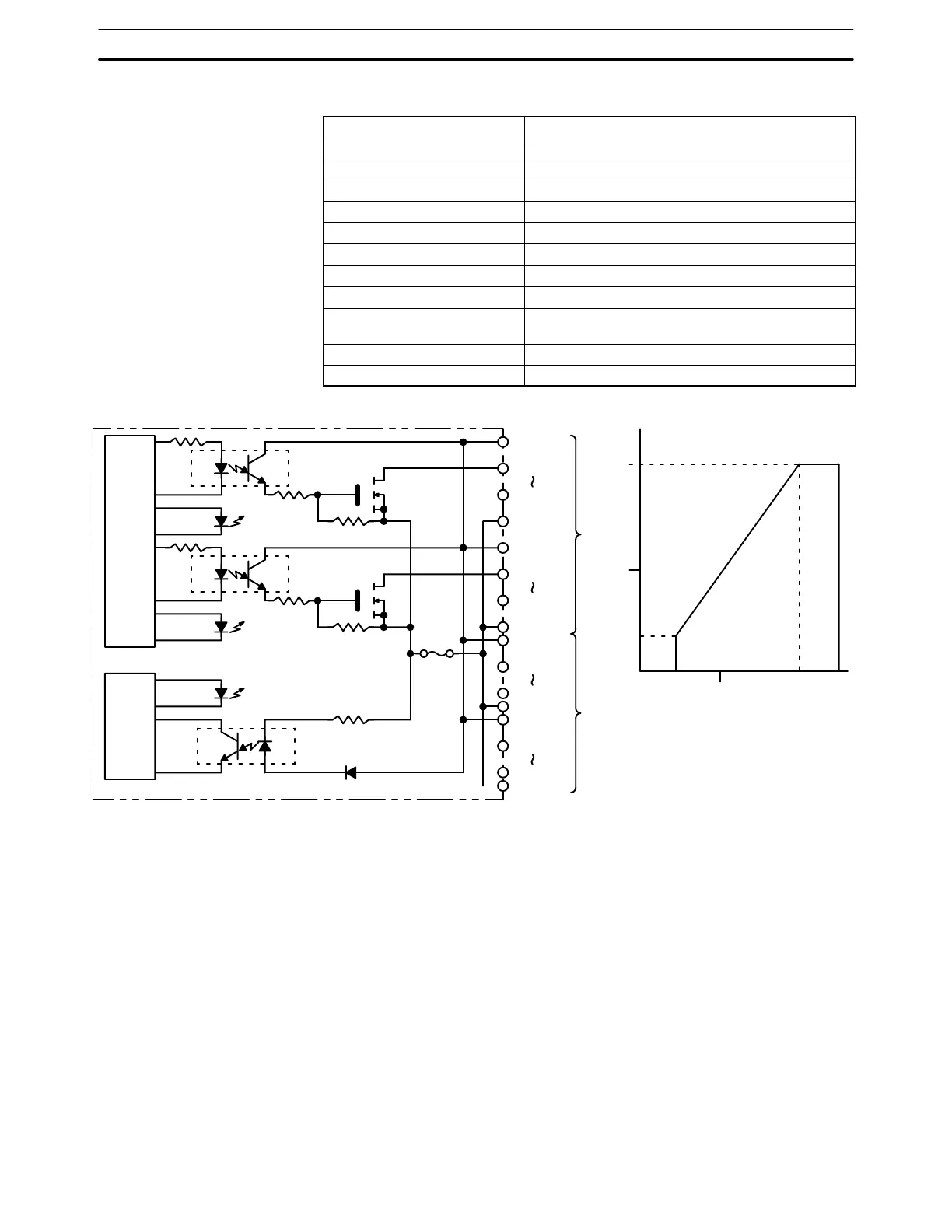

Circuit Configuration and Maximum Switching Capacity
Power Supply Voltage (V)
Max. Switching Capacity (mA/pt)
Output indicator
Fuse blowout detection circuit
Fuse
(3 A)
F indicator
Output indicator
0 4.5 10 20.4 26.4
50
100
16
0
OUT00
OUT07
COM
A
Internal
Circuit
4.5 to
26.4 VDC
4.5 to
26.4 VDC
OUT08
OUT15
COM
OUT00
OUT07
COM
B
OUT08
OUT15
COM
4.5 to
26.4 VDC
4.5 to
26.4 VDC
To Next Page
