Appendix BSpecifications
150

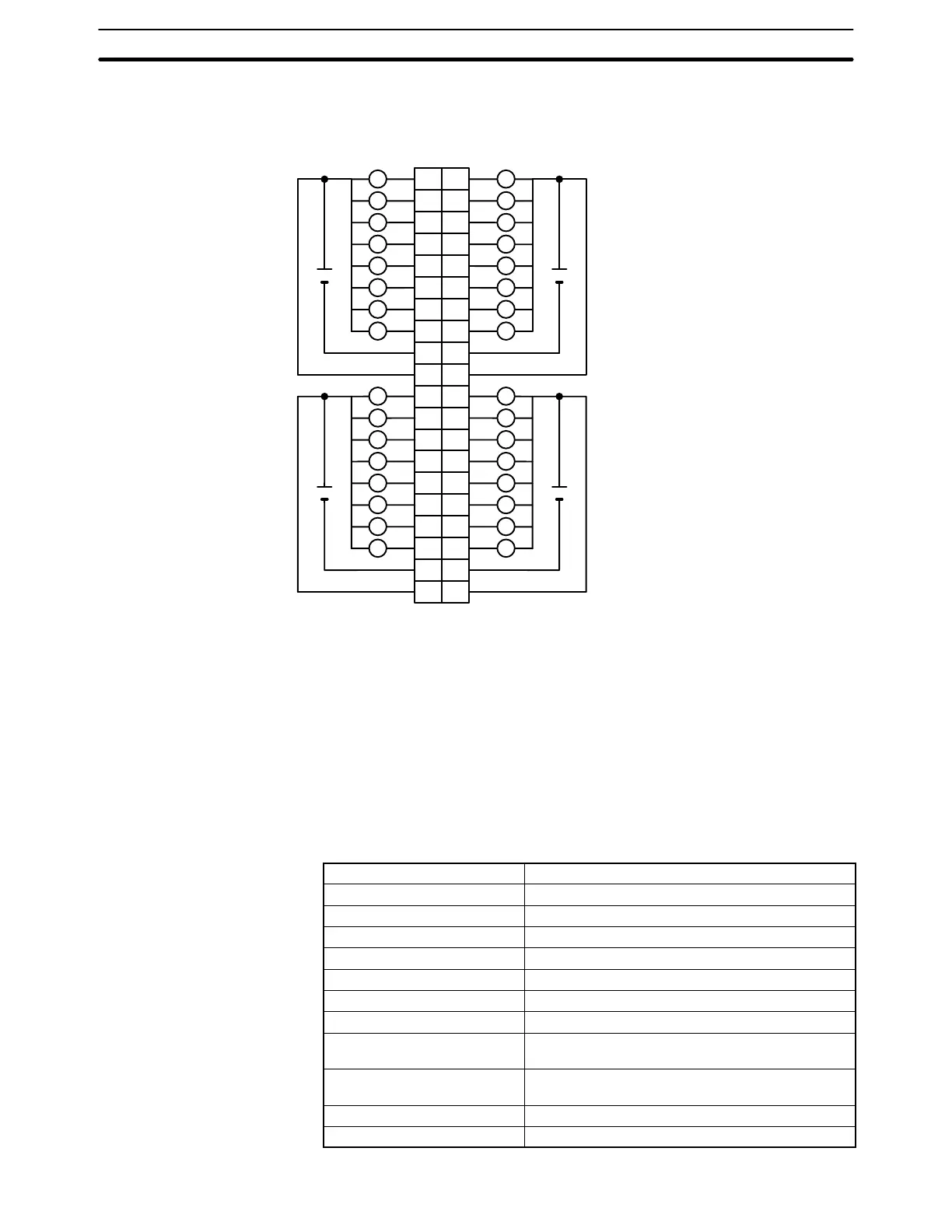

Terminal Connections
I/O word “m+1”I/O word “m”
L L
1
L
0
A
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
COM
9
B
L
L L
L L
L L
L L
L L
L L
L L
+
4.5 to
26.4 VDC
COM
+
10 10
11
12
13
14
15
16
18
11
12
13
14
15
16
17
18
19
20
19
20
17
8
9
10
11
12
13
14
15
COM
L
L
L
L
L
L
L
+
8
9
10
11
12
13
14
15
COM
L
L
L
L
L
L
L
+
Note 1. I/O word “m” is determined by the I/O number setting (m = IR 030 + 2 × I/O number).
2. When the fuse blows, the F indicator lights and the error flag in AR 02 corresponding to the I/O number is
turned ON. I/O numbers 0 to 9 correspond to AR 0205 to AR 0214.
3. The interruption of power from the external power supply is treated the same as a fuse blowout.
4. Connect power supply wiring to every COM terminal, even though the COM terminals are connected
internally.
Transistor Output Unit C200H-OD219 (64 Points)
Max. Switching Capacity 16 mA 4.5 VDC to 100 mA 26.4 VDC (see below)
Min. Switching Capacity None
Leakage Current 0.1 mA max.
Residual Voltage 0.8 V max.
ON Response Time 0.1 ms max.
OFF Response Time 0.4 ms max.
No. of Circuits 2 (32 points/common)
Internal Current Consumption 270 mA 5 VDC max.
Fuses Two 3.5 A fuses (1 fuse/common)
The fuses are not user-replacable.
Power for External Supply
220 mA 5 to 24 VDC10% min.
(3.4 mA × number of ON pts)
Weight 250 g max.
Dimensions D-shape
