69

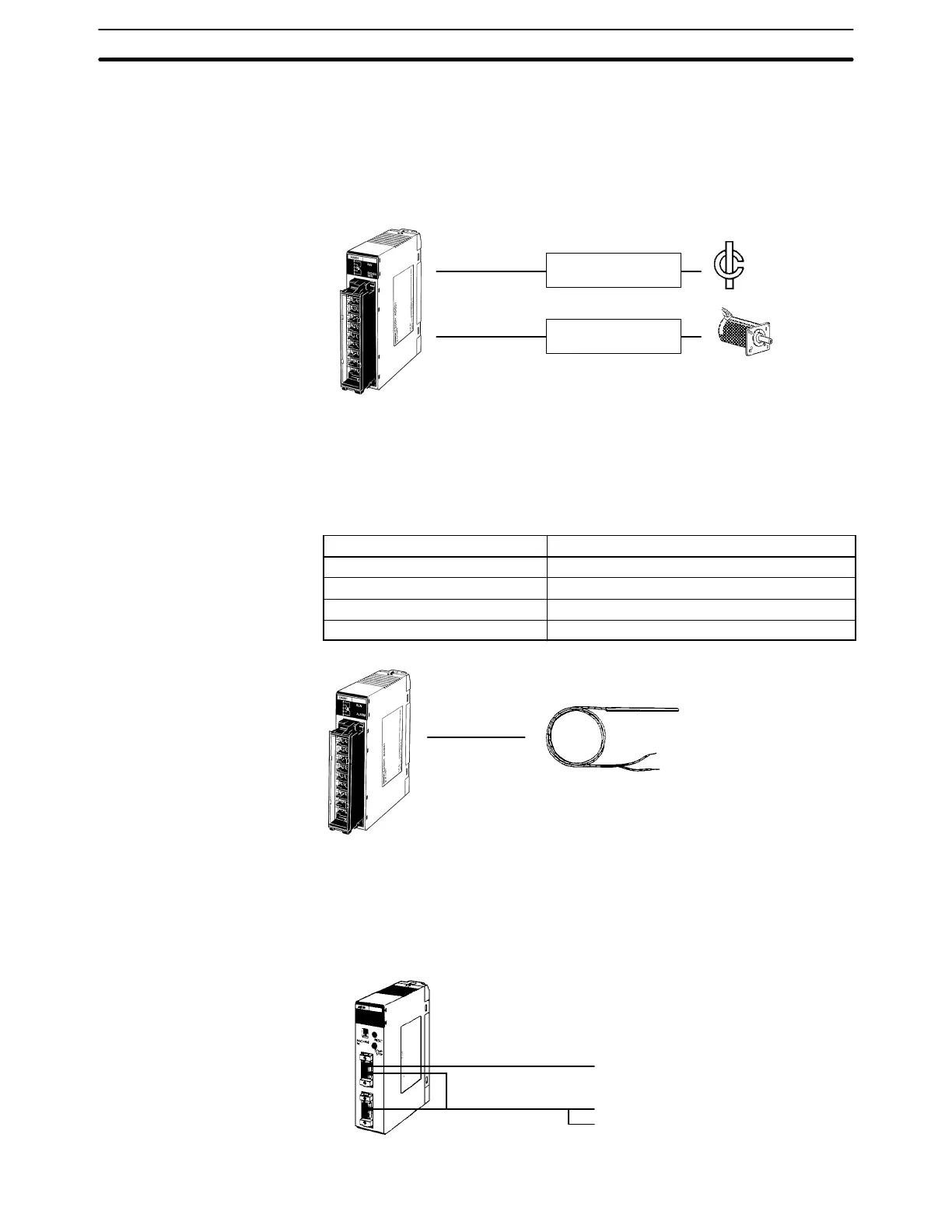

Analog I/O Units The Analog Input (A/D) Units retrieve analog inputs and the Analog Output (D/A)
Unit sends analog outputs.
The following Analog I/O Units are available:
C200H-AD001 with 4-point analog input, C200H-AD002 with 8-point analog in-
put, C200H-DA001 with 2-point analog output, and C200H-DA002 with 4-point
analog output
Sensor
Motor
Analog input
Analog output
The Analog Input (AD) Unit is used.
The Analog Output (DA) Unit is used.
Servomotor controller
variable adjuster
Preamplifier
transducer
Temperature Sensor Units The following table lists Temperature Sensor Unit models and available temper-
ature sensors.
Only one kind of temperature sensor can be connected to the C200H-TS001 or
C200H-TS002. Each Temperature Sensor Unit connects to a maximum of four
temperature sensor inputs.
Model Connectable temperature sensor
C200H-TS001 K (CA)/K (IC)
C200H-TS002 K (CA)/L (Fe-CuNi) (available for DIN)
C200H-TS101 JPt 100 Ω
C200H-TS102 Pt 100 Ω (available for DIN/1989JIS)
Thermocouple: K (CA), J (IC), L (Fe-CuNi)
Platinum resistance thermometer: JPt100 Ω, Pt100 Ω
ASCII Unit BASIC programs can be input to the ASCII Unit via its port 1 from any personal
computer in terminal mode if the personal computer incorporates an RS-232C
interface.
It is possible to write BASIC programs with an IBM PC/AT or compatible.
(RS-232C)
Input: Bar code reader
Output: Printer and plasma display
Port 1
Port 1/2
BASIC Program:
Personal computer
Special I/O Units Section 5-4
