118
Address Instruction Data
0000 LD 0000
0001 AND 0001
0002 LD 0002
0003 LD 0100
0004 AND NOT 0200
0005 LD 0101
0006 AND NOT 0102
0007 AND NOT 1501
0008 OR LD ––
0009 AND 1500
0010 CNTR(12) ––
01
# 5000
0011 LD HR 015
0012 OUT NOT 0500

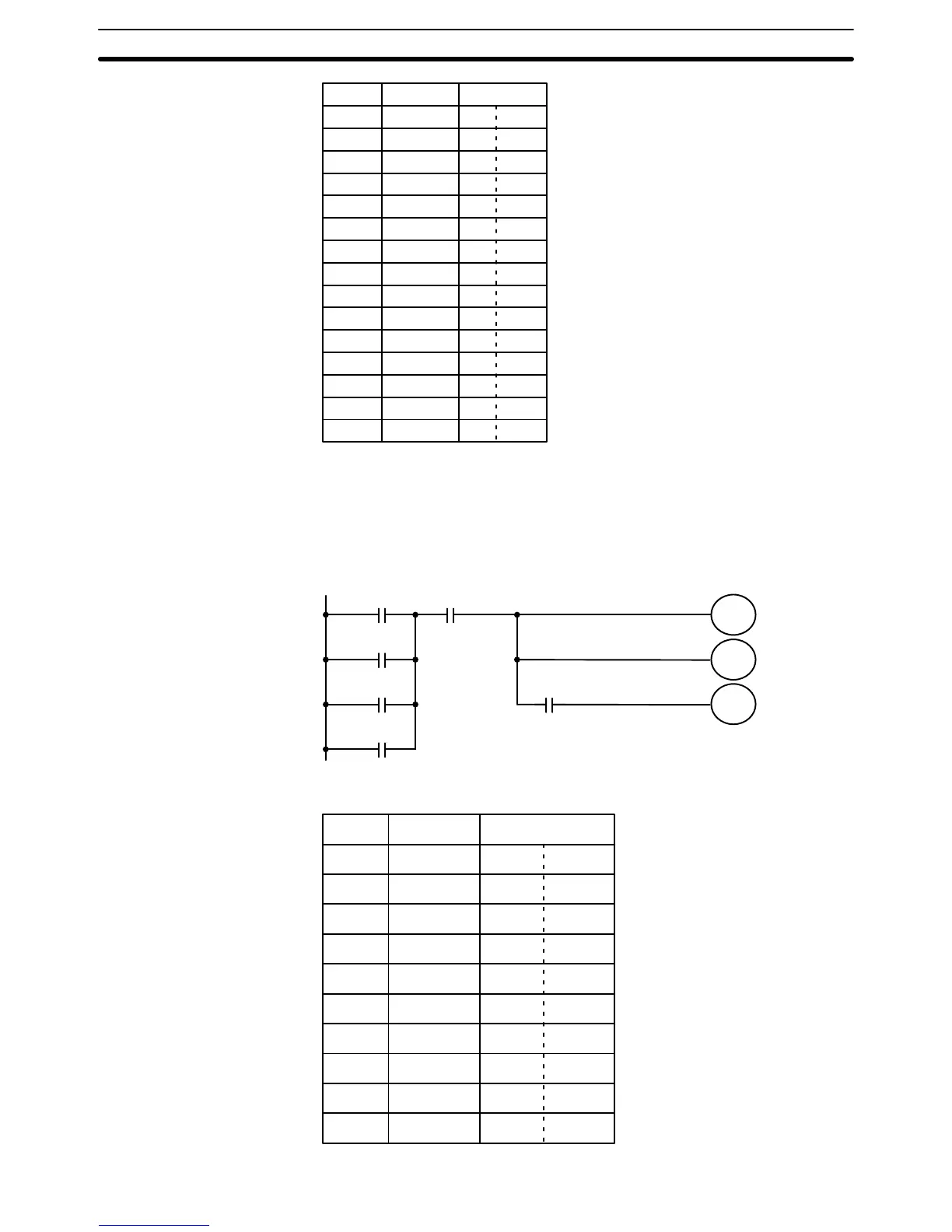

If there is more than one right-hand instruction executed with the same exe-
cution condition, they are coded consecutively following the last condition on
the instruction line. In the following example, the last instruction line contains
one more condition that corresponds to an AND.
0000 0003
0001
TIM 010002
HR 000
HR
001
TIM
02
0506
001.0s
Address Instruction Data
0000 LD 0000
0001 OR 0001
0002 OR 0002
0003 OR HR 0000
0004 AND 0003
0005 OUT HR 01
0006 TIM 02
# 0100
0007 AND TIM 01
0008 OUT 0506
Multiple Right-hand
Instructions
Converting to Mnemonic Code Section 7–2
To Next Page
