3 - 45
3 Configuration
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
3-3 Camera Cable
3

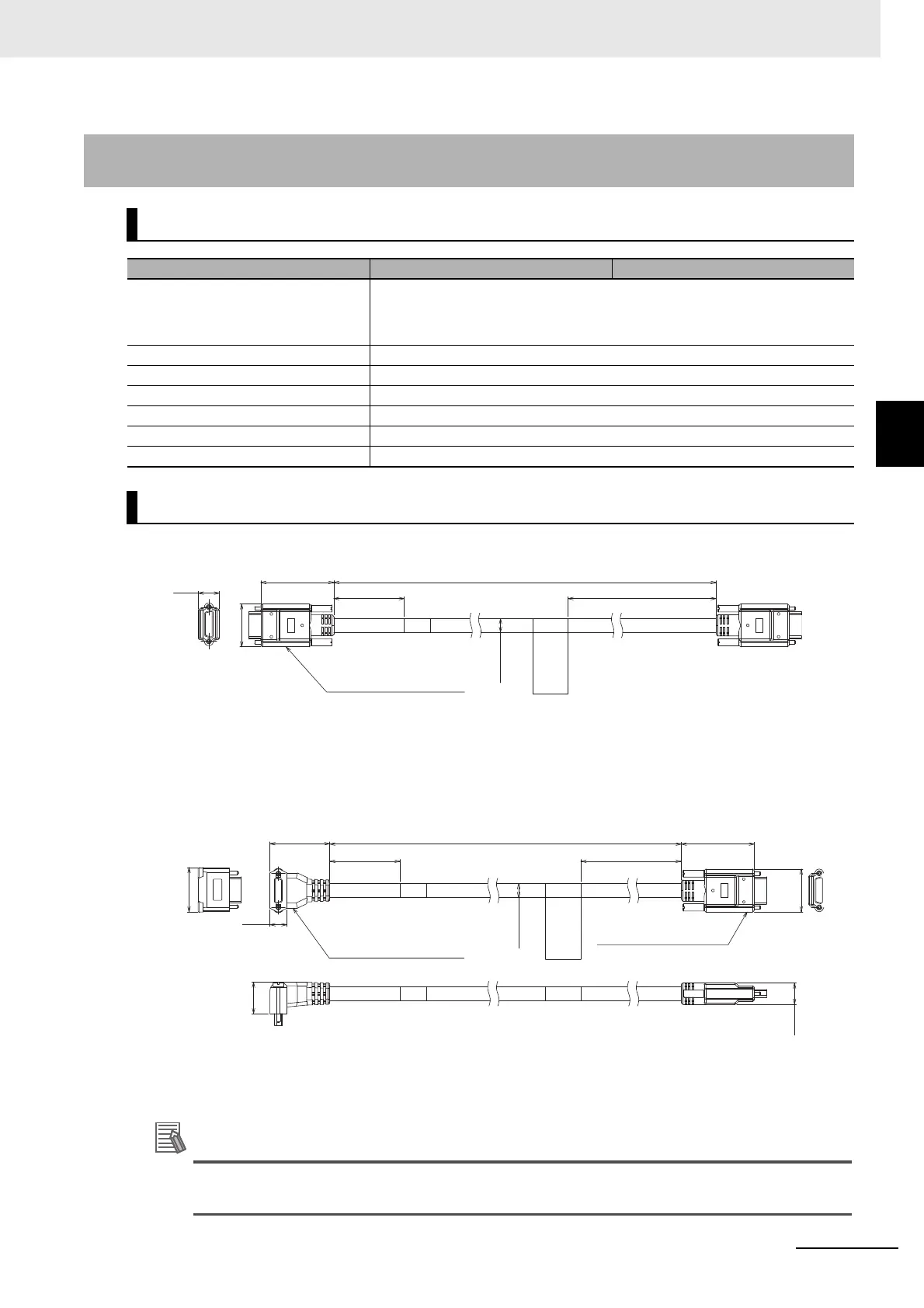

3-3-3 Long-distance Camera Cable and Long-distance Right-angle Camera Cable
 Long-distance Camera Cable: FZ-VS4
*1. Each camera cables has polarity. Please ensure that the name plate side of the cable is connected to the con-
troller.
*2. Cable is available in 15 m.
 Long-distance Right-angle Camera Cable: FZ-VSL4
*1. Each camera cables has polarity. Please ensure that the name plate side of the cable is connected to the con-
troller.
*2. Cable is available in 15 m.
Additional Information
We have the 2D CAD data or 3D CAD data.
You can download CAD data from www.fa.omron.co.jp.
3-3-3 Long-distance Camera Cable and Long-distance Right-angle
Camera Cable
Specification
Model FZ-VS4 (15 m) FZ-VSL4 (15 m)
Shock resistiveness (durability) 10 to 150 Hz
Single amplitude 0.15 mm
3 directions, 8 strokes, 4 times
Ambient temperature range Operation and storage: 0 to 65°C (with n
o icing or condensation)
Ambient humidity range Operation and storage: 40 to 70%RH (with no condensation)
Ambient atmosphere No corrosive gases
Material Cable sheath, connector: PVC
Minimum bending radius 78 mm
Weight Approx. 1400 g
Dimensions
(*1)
26-pin
rectangular connector
L (*2)(42)
(100)(40)
7.8 dia.
(24)
(12)
(*1)
(18)
(12)
(25)
26-pin
rectangular connector
26-pin
rectangular connector
(100)
(24)
(42)L (*2)
(40)
(10)
(34)
7.8 dia.
