Omron SYSMAC FH Series Hardware Setup Manual

3 Configuration
3 - 36
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
Additional Information
We have the 2D CAD data or 3D CAD data.
You can download CAD data from www.fa.omron.co.jp.

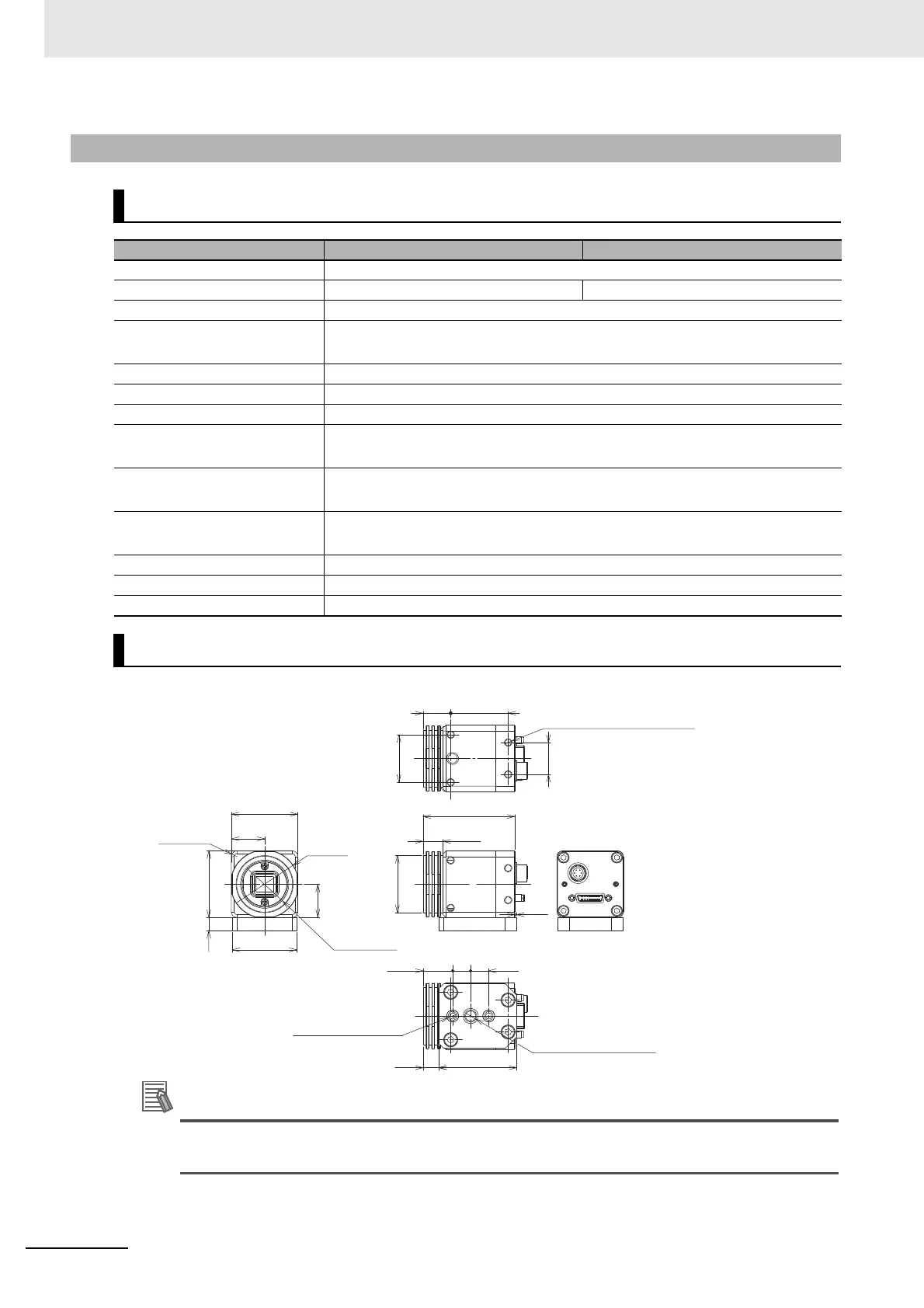

3-2-4 High-speed Digital CCD Cameras : FZ-SH Camera Series
Specification
Model FZ-SH FZ-SHC
Image elements Interline transfer reading all pixels, CCD image elements (1/3-inch equivalent)
Color/Monochrome Monochrome Color
Effective pixels 640 (H) × 480 (V)
Imaging area H × V
(opposing corner)
4.8 × 3.6 (6.0 mm)
Pixel size 7.4 (μm) × 7.4 (μm)
Shutter function Electronic shutter: select shutter sp
eeds from 1/10 to 1/50,000 s
Partial function 12 to 480 lines
Frame rate
(Image Acquisition Time)
204 fps (4.9 ms)
Field of vision,
installation distance
Selecting a lens according to the field of vision and installation distance
Ambient temperature range Operating: 0 to 40°C
Storage: -25 to 65°C (with no ici
ng or condensation)
Ambient humidity range Operating and storage: 35 to 85% RH (with no condensation)
Weight Approx. 105 g
Accessories Instruction Sheet
Dimensions
14.5
(1)
17.5
10.5
15.5
8.3
9.5 9.5
Four M4 mounting holes
with a depth of 4 mm
(4 commonness)
Four-R3
7
1“-32UNF
(C mount)
36 dia.
Two, M4 mounting
holes with a depth
of 5.5 mm
1/4” 20UNC with a
depth of 5.5 mm
40.9
30.2
25
16.8
48.2
30 dia.
35
34
35
17.5
