2 Overview of FH/FZ5 series
2 - 10
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

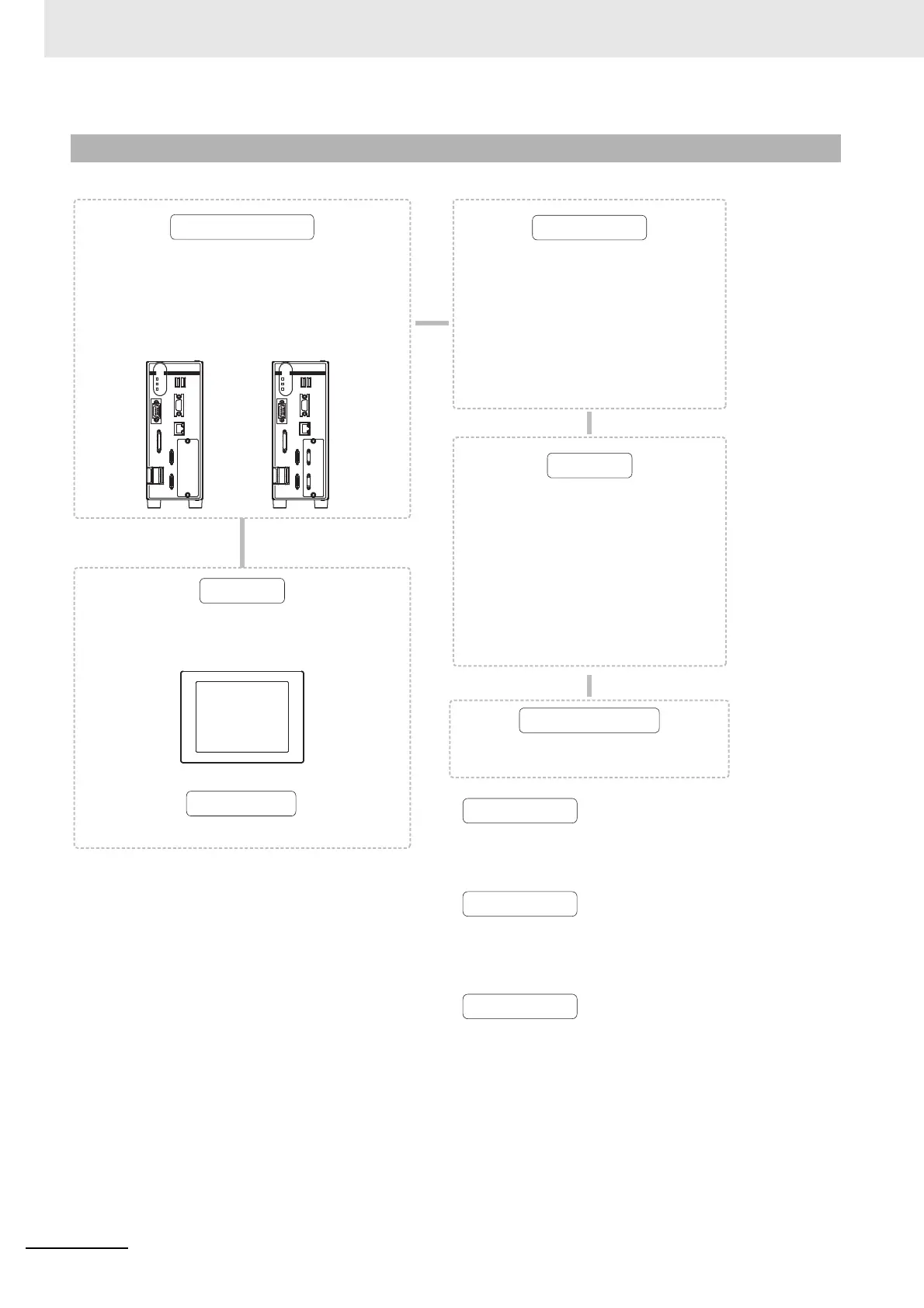

2-2-4 FZ5-L Series
Use the monitor to check images and
display the condition-setting menus.
FZ-VM (2m, 5m, bending radius: 75m)
FZ-M08 (8.4 inch)
LCD monitor
*
Monitor cable
*
Mouse, Keyboard
(Commercially available USB devices)
The power supply connected to FZ5 Sensor Controller
differs depending on the number of connected cameras
and types for various consumption current types. Select
accordingly.
Recommended Model by OMRON: S8VS series
Standalone camera
FZ-SC/FZ-S/
FZ-SC2M/FZ-S2M/
FZ-SC5M/FZ-S5M/
FZ-SFC/FZ-SF/
FZ-SPC/FZ-SP/
FZ-SHC/FZ-SH
Intelligent Compact Digital Camera
FZ-SQ010F/FZ-SQ050F/
FZ-SQ100F/FZ-SQ100N
Detects workpieces as images.
* Items indicated with an asterisk are dedicated items, and cannot be substituted.
The Controller performs the image processing specified
by the user settings and outputs the measurement results.
Sensor controller
*
*
*
*
Camera 4ch type
FZ5-L350-10
FZ5-L355-10
Camera 2ch type
FZ5-L350
FZ5-L355
Input Device
Power Supply
Peripheral Device
* USB memory
FZ-MEM2G
FZ-MEM8G
Camera cable
FZ-VS3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Bend resistant camera cable
FZ-VSB3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Right-angle camera cable
FZ-VSL3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Bend resistant Right-angle camera cable
FZ-VSLB3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Long-distance camera cable
FZ-VS4 (15 m, min. bending radius: 78 mm)
Long-distance Right-angle camera cable
FZ-VSL4 (15 m, min. bending radius: 78 mm)
Camera cable
Camera
FLV-TCC1/FLV-TCC4/
FLV-TCC1EP/FLV-TCC3HB
Camera with Lighting
