3 Configuration
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
3-4 Lens
3

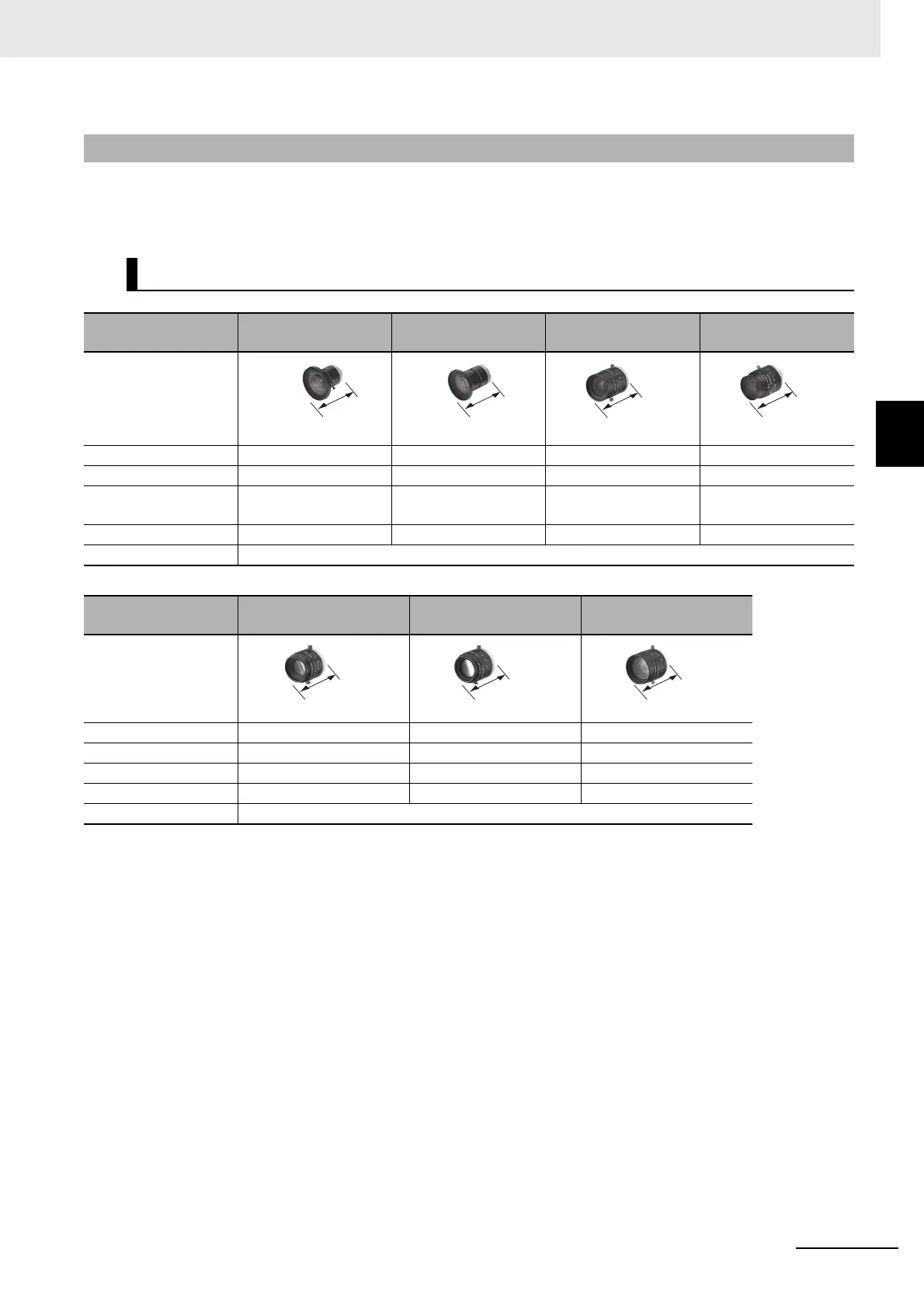

3-4-3 C-mount Lens for 1-inch Image Sensor
FH-S02 and FH-S04 are recommended.
When the focal distance is 75 m or 100 m, 3Z4S-LE SV-7525H and 3Z4S-LE SV-10028H are also avail-
able.
3-4-3 C-mount Lens for 1-inch Image Sensor
Specification
Model
3Z4S-LE
VS-0618H1
3Z4S-LE
VS-0814H1
3Z4S-LE
VS-1214H1
3Z4S-LE
VS-1614H1N
Appearance/Dimen-
sions (mm)
Focal length 6 mm 8 mm 12 mm 16 mm
Aperture (F No.) 1.8 to 16 1.4 to 16 1.4 to 16 1.4 to 16
Filter size Can not be used a fil-
ter
M55.0 P0.75 M35.5 P0.5 M30.5 P0.5
Maximum sensor size 1 inch 1 inch 1 inch 1 inch
Mount C mount
Model
3Z4S-LE
VS-2514H1
3Z4S-LE
VS-3514H1
3Z4S-LE
VS-5018H1
Appearance/Dimen-
sions (mm)
Focal length 25 mm 35 mm 50 mm
Aperture (F No.) 1.4 to 16 1.4 to 16 1.8 to 16
Filter size M30.5 P0.5 M30.5 P0.5 M40.5 P0.5
Maximum sensor size 1 inch 1 inch 1 inch
Mount C mount
57.2
64.5 dia.
59
57 dia.
48.0[WD:∞] to
48.5[WD:300]
38 dia.
45.0[WD:∞] to
45.9[WD:300]
38 dia.
33.5[WD:∞] to
35.6[WD:300]
38 dia.
35.0[WD:∞] to
39.1[WD:300]
38 dia.
44.5[WD:∞] to
49.5[WD:500]
44 dia.
