3 - 31
3 Configuration
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
3-2 Camera
3

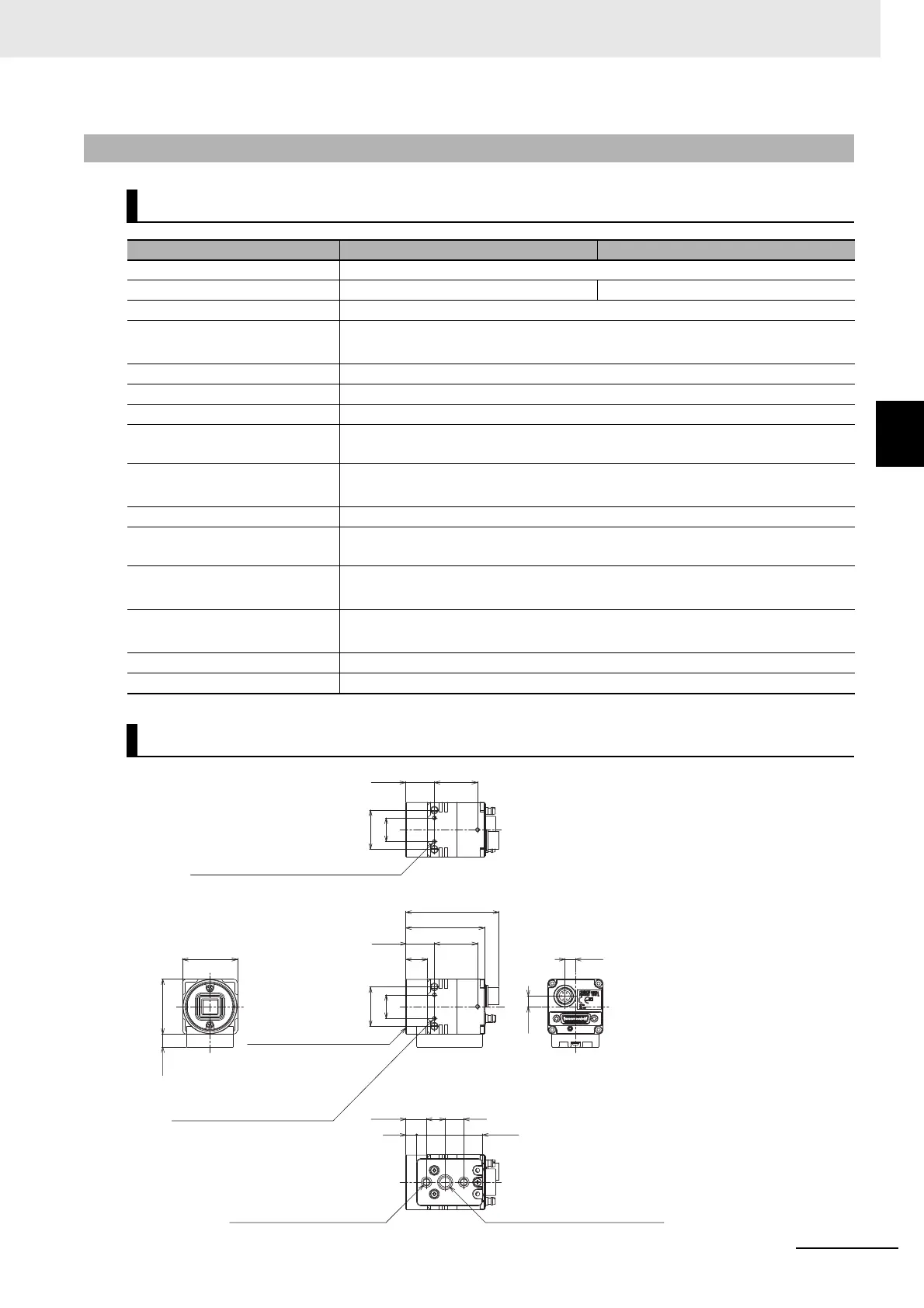

3-2-2 Digital CMOS Cameras: FH-S Camera Series
3-2-2 Digital CMOS Cameras: FH-S Camera Series
Specification
Model FH-SM05R FH-SC05R
Image Elements CMOS image elements (1/2.5-inch equivalent)
Color/Monochrome Monochrome Color
Effective Pixels 2592 (H) × 1944 (V)
Imaging area H × V
(opposing corner)
5.70 × 4.28 (7.13 mm)
Pixel Size 2.2 (μm) × 2.2 (μm)
Scan Type Progressive
Shutter Method Rolling shutter
Shutter Function Electronic shutter;
Shutter speeds can be set from 500 to 10000 ms in multiples of 50 μs
Frame Rate
(Image Acquisition Time)
14 fps (71.7 ms)
Lens Mounting C mount
Field of vision, Installation dis-
tance
Selecting a lens according to the field of vision and installation distance
Ambient temperature range Operating: 0 to +40°C
Storage: -30 to 65°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%RH
Storage: 35 to 85%RH (with no condensation)
Weight Approx. 52 g
Accessories Instruction Sheet
Dimensions
20
12
20
12
22
(47.3)
9.5 9.510.5
5.5 33.5
40
2214.5
28 5.4
5.4
286.5
11
14.5
1/4"-20UNC with
a depth of 5.5 mm
(for tripod mount)
(Unit: mm)
Three, M2 mounting holes
with a depth of 3 mm
Three, M2 mounting holes
with a depth of 3 mm
(both sides)
Two, M4 mounting holes
with a depth of 5.5 mm
U1 (C mount screw)
