4 Handling and Installation Environment
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
4-3 FH-L Series
4
4-3 FH-L Series
Precautions for Correct Use
Ambient Temperature
• Install and store the product in a location that meets the following conditions:
• Surrounding temperature of 0 to 55°C (-25 to +70°C in storage)
• Relative humidity of between 10 to 90%RH
• Do not let the ambient temperature exceed 55°C (131°F).
• Provide a forced-air fan cooling or air conditio
ning if the ambient temperature is near 55°C
(131°F) so that the ambient temperature never exceeds 55°C (131°F).

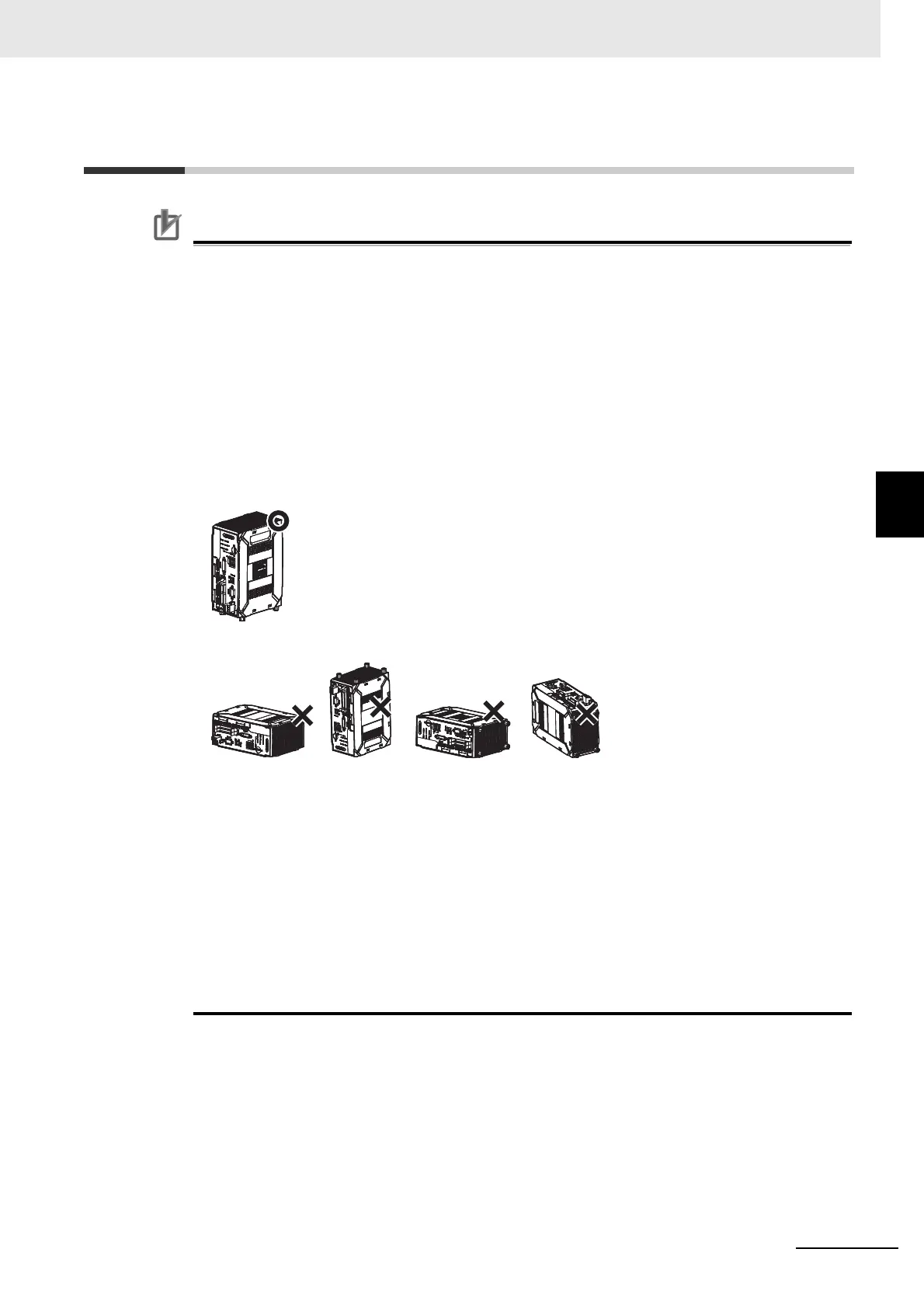

Orientation of Product
• For good heat dissipation, install the product o
nly in the position shown below so as not to
block the ventilation holes.
• Do not install the product in the following positions.
• For good ventilation, provide a clearance of 50
mm or more above the Sensor Controller
away from other devices in the normal floor mounting. For the right and left sides, back side,
for other devices, or Sensor Controller 25 mm or more.
Handling SD memory card
• Before removing a SD memory card, make sure that data is not being read or written to it.
• For an SD memory card, the SD BUSY LED of Se
nsor Controller flashes while data is being
read or written.
Make sure that the LED stops flashin
g before removing the card.
• Do not insert an SD memory card in the reverse o
rientation, at an angle, or in a twisting man-
ner.
