1 Confirm the Package
1 - 8
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

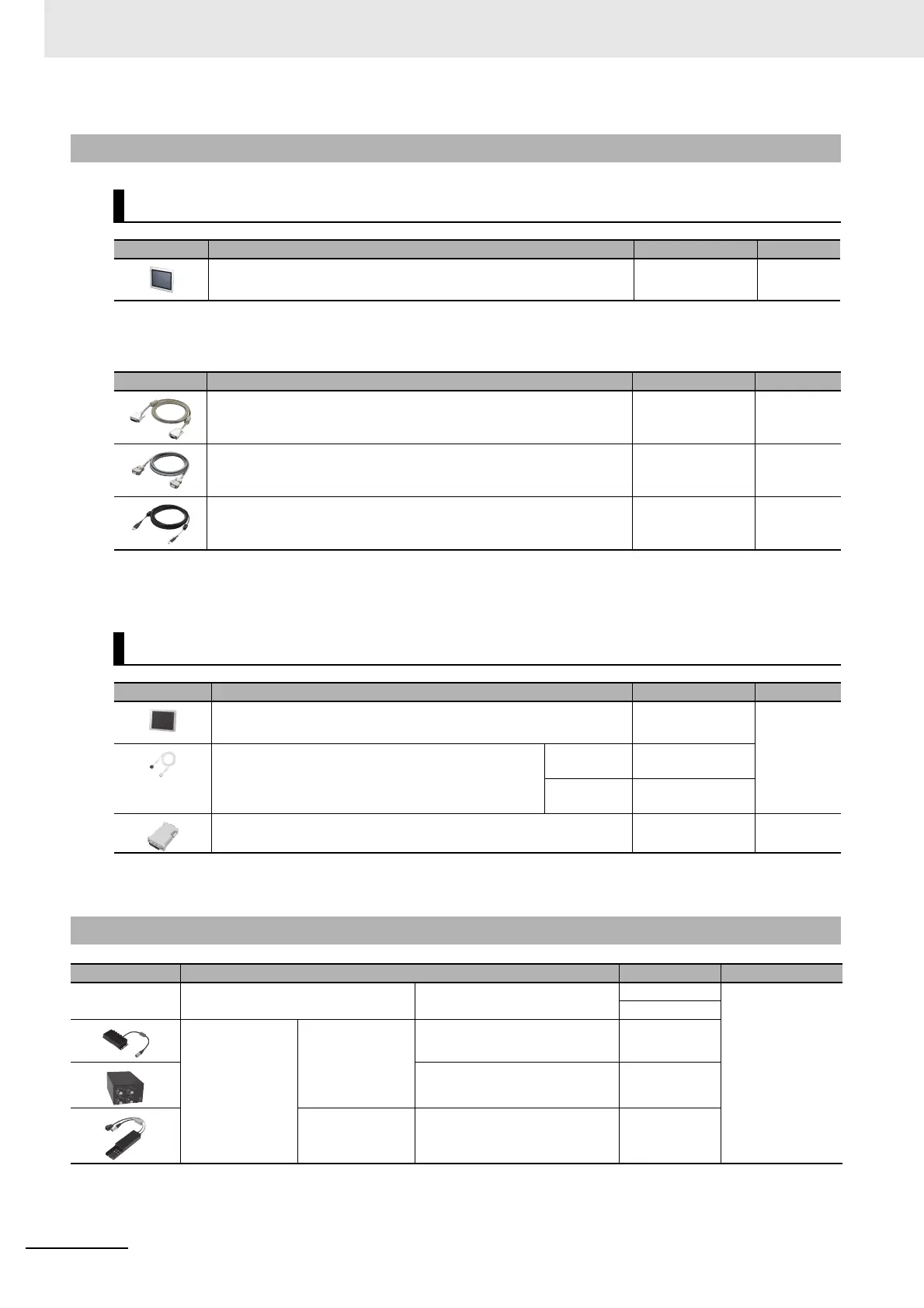

1-2-2 Monitor
Touch Panel Monitor and Cables
Appearance Description Model Reference
Touch Panel Monitor 12.1 inches
For FH Sensor Controllers
*1
*1. FH Series Sensor Controllers version 5.32 or higher is required.
FH-MT12
Appearance Description Model Reference
DVI-Analog Conversion Cable for T
ouch Panel Monitor
Cable length: 2 m, 5 m or 10 m
FH-VMDA M
*1
*1. Insert the cables length into  in the model number as follows. 2 m = 2, 5 m = 5, 10 m = 10
RS-232C Cable for Touch Panel Monitor
Cable length: 2 m, 5 m or 10 m
XW2Z-
PP-1
*2
*2. Insert the cables length into  in the model number as follows. 2 m = 200, 5 m = 500, 10 m = 010.
USB Cable for Touch Panel Monitor
Cable length: 2 m or 5 m
FH-VUAB M
*1
LCD Monitor and Cable
Appearance Description Model Reference
LCD Monitor 8.4 inches
For Box-type Controllers
*1
*1. It can be used in FH series.
FZ-M08
LCD Monitor Cable
When you connect a LCD Monitor FZ-M08 to FH sensor
con
troller, please use it in combination with a DVI-I -RGB
Conversion Connector FH-VMRGB.
2 m FZ-VM 2M
5 m FZ-VM 5M
DVI-I -RGB Conversion Connector FH-VMRGB
1-2-3 Lighting and Lighting Controller
Appearance Description Model Reference
---
External Lighting
---
FLV Series
For the method of
setting the
lighting
controller, please
refer to the respec-
tive instruction
manual.
FL Series
Lighting Controller
(Required to con-
trol external light-
ing from a
Control
ler)
For FLV-Series Camera Mount Lighting Controller FLV-TCC Series
Analog Lighting Controller FLV-ATC Series
For FL-Series Camera Mount Lighting Controller FL-TCC Series
