6 I/O Interface

6 - 50

Vision System FH/FZ5 series Hardware Setup Manual (Z366)

Ethernet port differ depending on the Sensor Controller series. Refer to the followings, and confirm the

number of ports.

• FH-1050/FH-3050 (Camera 2ch type); Ethernet port is 1.

• FH-1050-



0/FH-3050-



0 (Camera 4ch and 8ch type): Ethernet port is 2.

• Connect the LAN cable with a straight or cross cable.

• Use an STP (shielded twisted-pair) cable of categor

y 5, 5e, or higher. Applicable EtherNet/IP com-

munications cables and connectors vary depending on the used baud rate.

• For 100Base-TX and 10Base-T, use an STP (shielded twisted

-pair) cable of category 5 or higher. You

can use either a straight or cross cable.

• For 1000Base-T, use an STP (shielded twisted-pair)

cable (double shielding with aluminium tape and

braiding) of category 5e or higher.

• Electrical specifications: Conforming

to IEEE 802.3 standards. Use RJ45 8-pin Modular Connector

(conforming to ISO 8877).

• When selecting a connector, confirm that it is applicable

to the cable that will be used. Confirm the

following items: Conductor size, conductor type (solid wire or twisted wire), number of twisted pairs (2

or 4), outer diameter, etc.

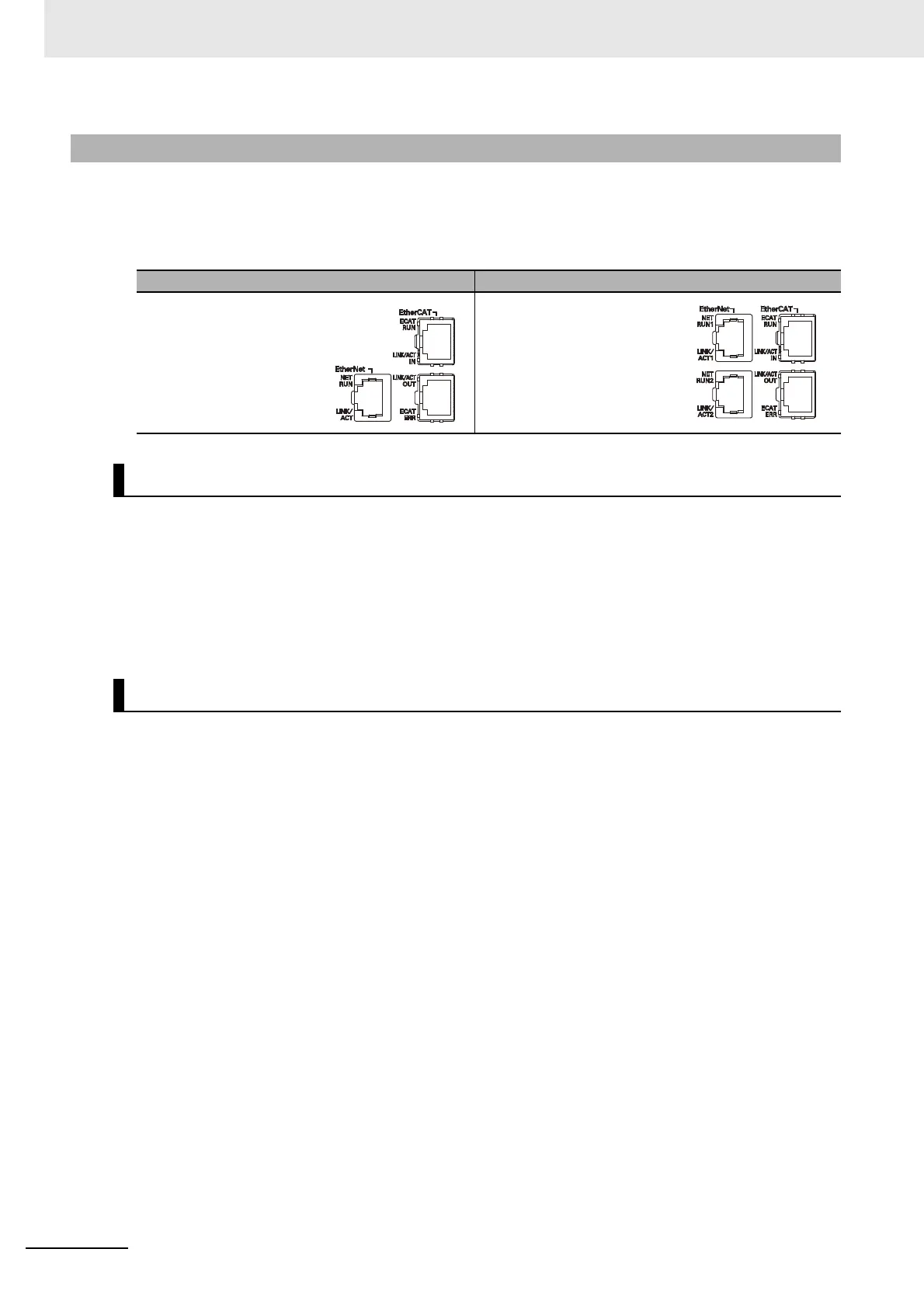

6-4-1 FH-1000/FH-3000 Series

Camera 2ch type Camera 4ch/8ch type

Ethernet port and Ether-

Net/IP port are sharing

use

• Upper port:

Ethernet port

• Lower port:

Ethernet port and Ether-

Net/IP port are sharing use.

Cable

I/O Connector
