6 - 51
6 I/O Interface
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
6-4 Ethernet Interface
6
6-4-1 FH-1000/FH-3000 Series
10Base-T and 100Base-TX
1000Base-T
Describes the connection processing to connector hood of shield as the following. The connection pro-
cessing is changed accordin
g to the transfer speed.
• 10BASE-T/100BASE-TX
Connects the shield of its both ends to each of connector
hoods. Connects the shield of only one side
of switching hub to connector hoods.
• 1000BASE-T
Connects the shield of its both ends to each of connector hoods.

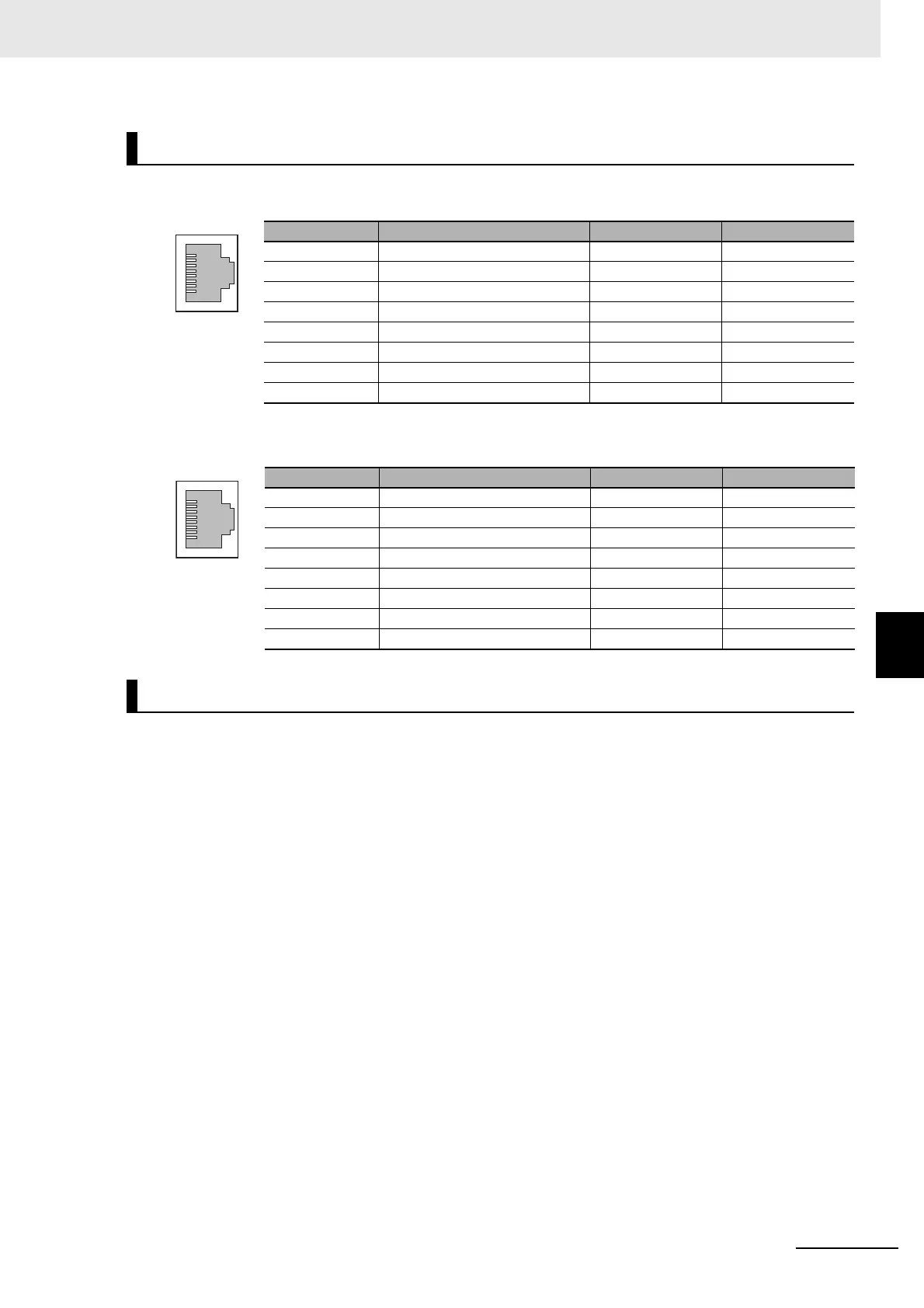

Pin Layout
Connector pin Signal name Abbr. Signal direction
1 Transmission data + TD + Output
2 Transmission data - TD - Output
3 Reception data + RD + Input
4 Not used. --- ---
5 Not used. --- ---
6 Reception data - RD - Input
7 Not used. --- ---
8 Not used. --- ---
Connector pin Signal name Abbr. Signal direction
1 Communication data DA + BI_DA + Input/output
2 Communication data DA - BI_DA - Input/output
3 Communication data DB + BI_DB + Input/output
4 Communication data DC + BI_DC + Input/output
5 Communication data DC - BI_DC - Input/output
6 Communication data DB - BI_DB - Input/output
7 Communication data DD + BI_DD + Input/output
8 Communication data DD - BI_DD - Input/output
Wire
