Omron SYSMAC FH Series Hardware Setup Manual

3 Configuration
3 - 78
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

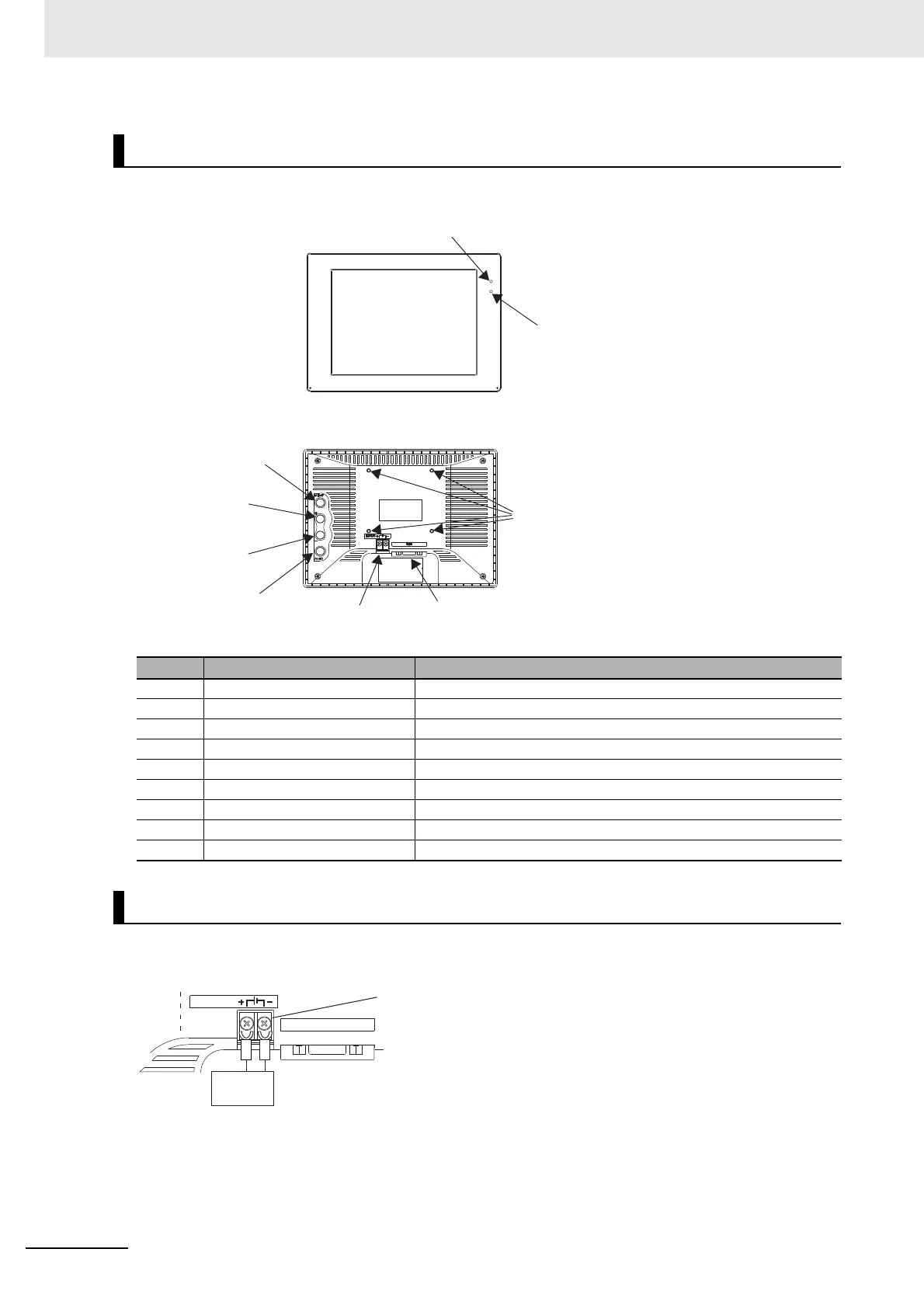

 Front View
 Rear
The power connection for the Touch Panel Monitor is on the back side of the Monitor.
Connect the 24 VDC power source.
• Keep the power supply wires as short as possible (maximum 10 m).
• If UL recognition is required, use a UL class II p
ower supply.
Regarding installation, do not use the VESA
mounting but fix the monitor unit using the board mount-
ing.
Component Names and Functions
Name Description
(1) LED indicator lamp (for power) Lit up green when power is ON.
(2) LED indicator lamp (for SYNC) Lit up orange while the video signal is input.
(3) Power connection terminal Connect power unit for 24 VDC.
(4) Video input (RGB) Video input terminal (RGB)
(5) MENU button OSD operating button (MENU button)
(6) + button OSD operating button (+ button)
(7) - button OSD operating button (- button)
(8) AUTO button OSD operating button (AUTO button)
(9) VESA mounting hole (M4) Mounting hole for
VESA 75 mm × 75 mm
Wire
Display section
(1) LED indicator lamp (for power)
(2) LED indicator lamp
(for SYNC)
(5) MENU button
(6) + button
(7) - button
(4) Video input (RGB)
(3) Power connection
terminal
(8) AUTO button
(9) VESA mounting
hole (M4)
M3
(Outside diameter of crimp terminal:
Dia 5.5 mm maximum)
Recommended model
OMRON Corporation-manufactured
S8VS-03024
24 VDC
RGB
Power
supply
24 VDC
