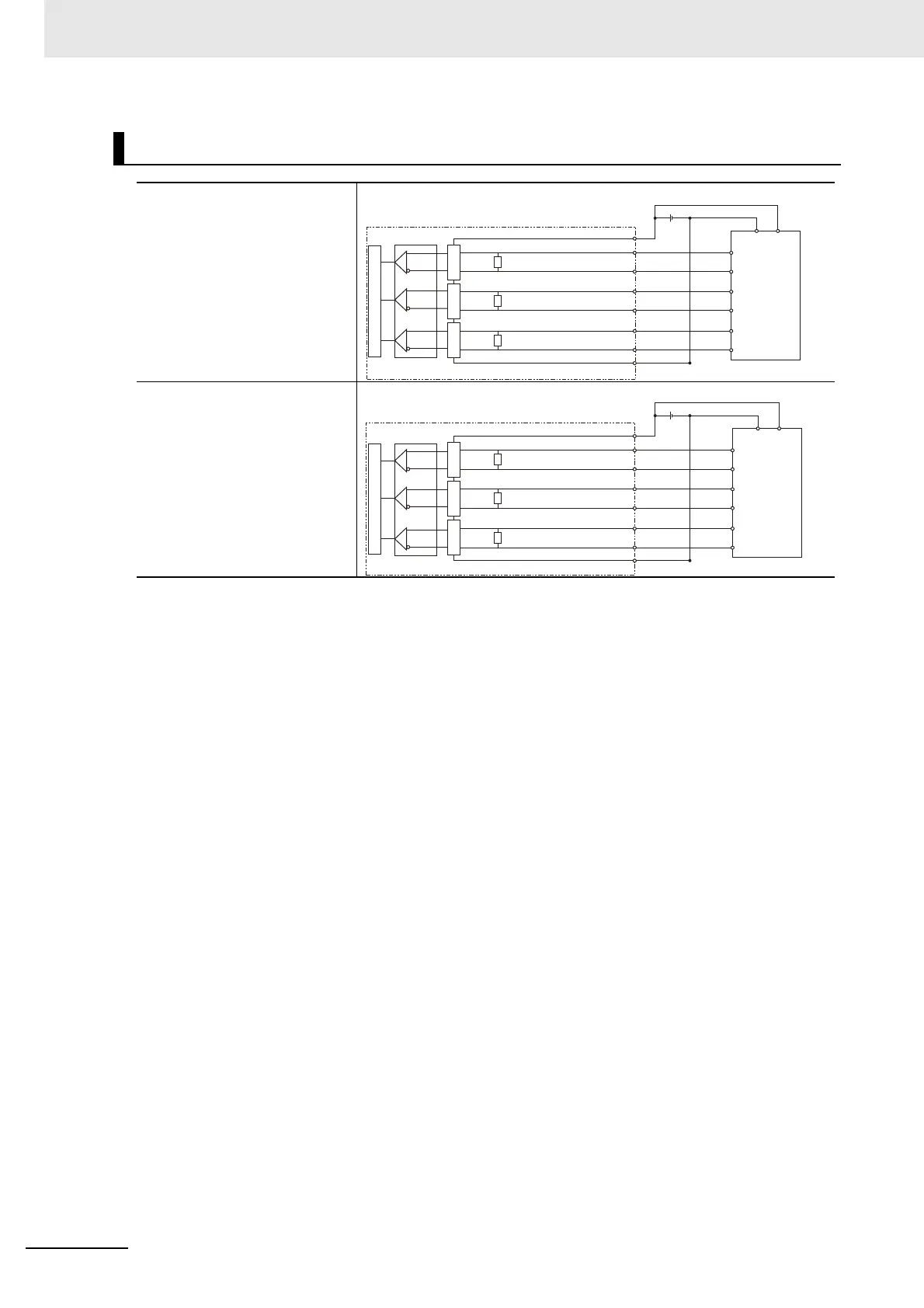

Encoder Circuit Schematics
Line driver input type
CH1 (Line 0)
Line driver input type
CH2 (Line 1)
120 Ω
120 Ω
120 Ω
Brown (ENC0 VDD)
Blue (ENCO GND)
Black (ENCO A+)
White/Red (ENCO B-)
White (ENCO B+)
Orange/Red (ENCO Z-)
Orange (ENCO Z+)
Black/Red (ENC0 A-)
Power supply
-A phase
+A phase
-B phase
+B phase
-Z phase
+Z phase
Line driver encoder
+
Line driver input type
Encode power supply (5 VDC)
Line receiver
Internal circuit
Input circuitInput circuitInput circuit
Line receiver
Brown/Red (ENC1 VDD)
Blue/Red (ENC1 GND)
Purple (ENC1 A+)
Pink/Red (ENC1 B-)
Pink (ENC1 B+)
Yellow/Red (ENC1 Z-)
Yellow (ENC1 Z+)
Purple/Red (ENC1 A-)
Power supply
-A phase
+A phase
-B phase
+B phase
-Z phase
+Z phase
Line driver encoder
+
Line driver input type
Encode power supply (5 VDC)
120 Ω
120 Ω
120 Ω
Internal circuit
Input circuitInput circuitInput circuit
