2 - 3
2 Overview of FH/FZ5 series
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
2-1 Overview of System
2
2-1-1 Basic System of Measurement
When the FH/FZ5 receives a measurement trigger from the PLC or other external device, the image
input from a Camera, measurement processing, and output of measurement results (e.g., OK/NG
judgement results) are executed in the order that those processing items are registered in the measure-
ment flow.
In the measurement flow, you can change the processing
to execute based on the inspection results
or input conditions of the vision inspection.
You can use macro processing to execute pre-packaged processing items and functions in the
FH/FZ
5 to create original programs. This allows you to create original measurement processes, dis-
play processing, input and output pr
ocessing, and settings dialog boxes that are custom-tailored to
your application.

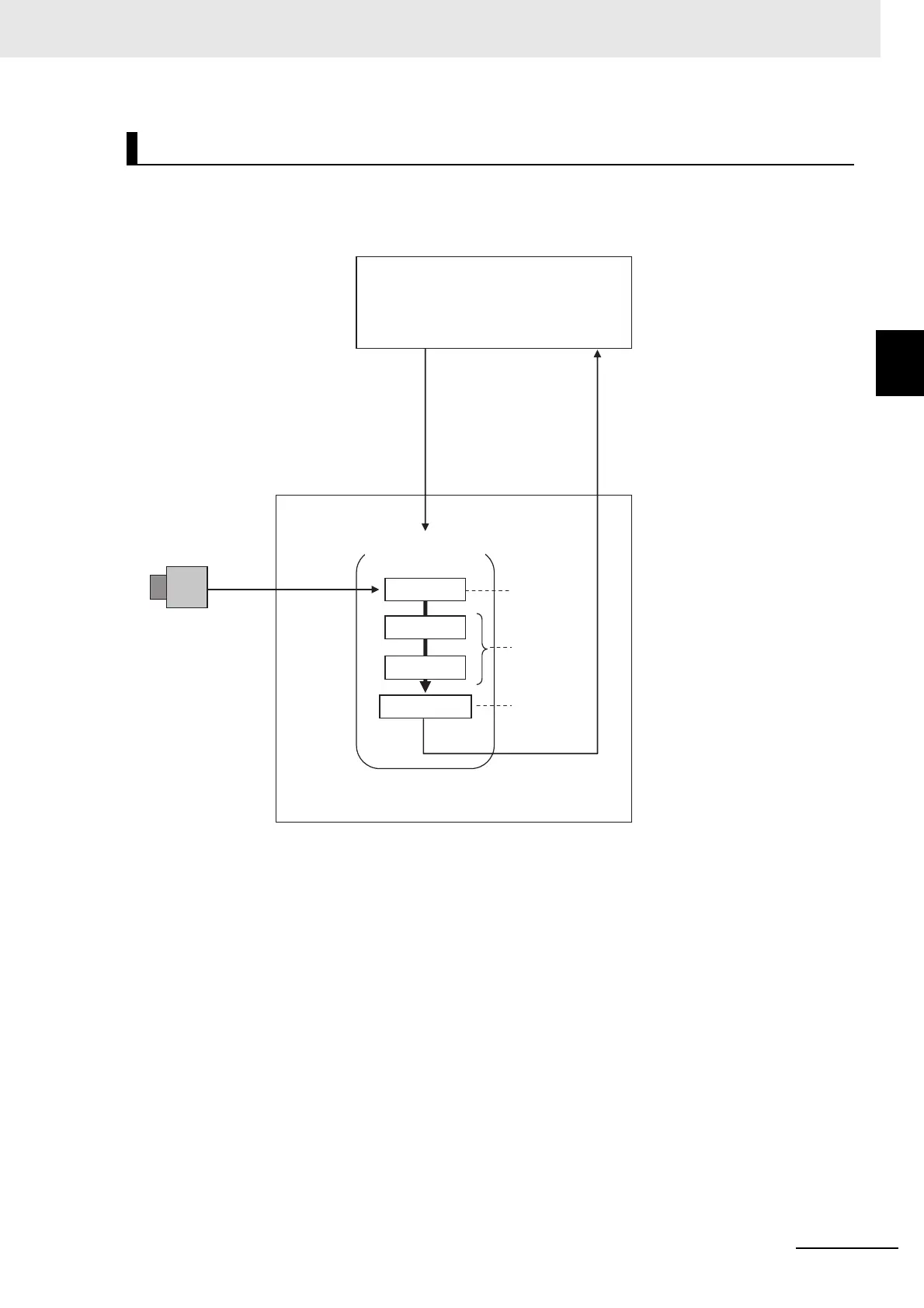

Concept of Measurement Processing
Image Input
Defect
Search
Measurement flow
FH/FZ5
Output Unit
Camera
PLC or other external device
The measurement flow is executed basically in
order of the unit numbers.
Measurement
trigger
• Judgement
result
• Measured
values
Image input
from the
Camera
Measurement
processing of
the input image
Measurement
results are
output.
