Additional Information
We have the 2D CAD data or 3D CAD data.
You can download CAD data from www.fa.omron.co.jp.

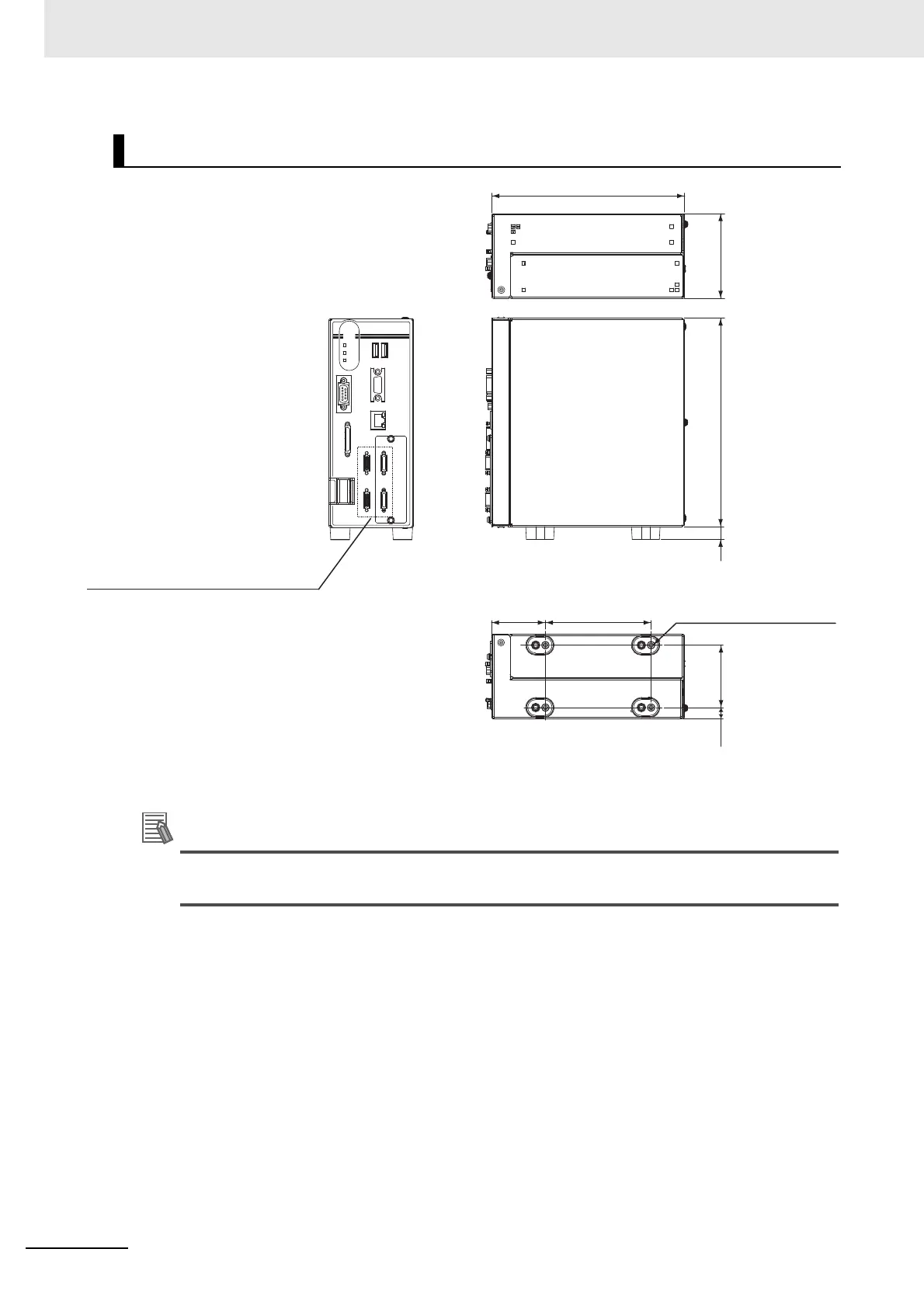

Dimensions
* 2 The 2-camera type has only two
camera connectors on its left side.
182.3
8019712
51 100
Four, M4 mounting holes
with a depth of 6.5 mm
10.5 59
(Unit: mm)
