Omron SYSMAC FH Series

3 - 39
3 Configuration
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
3-2 Camera
3

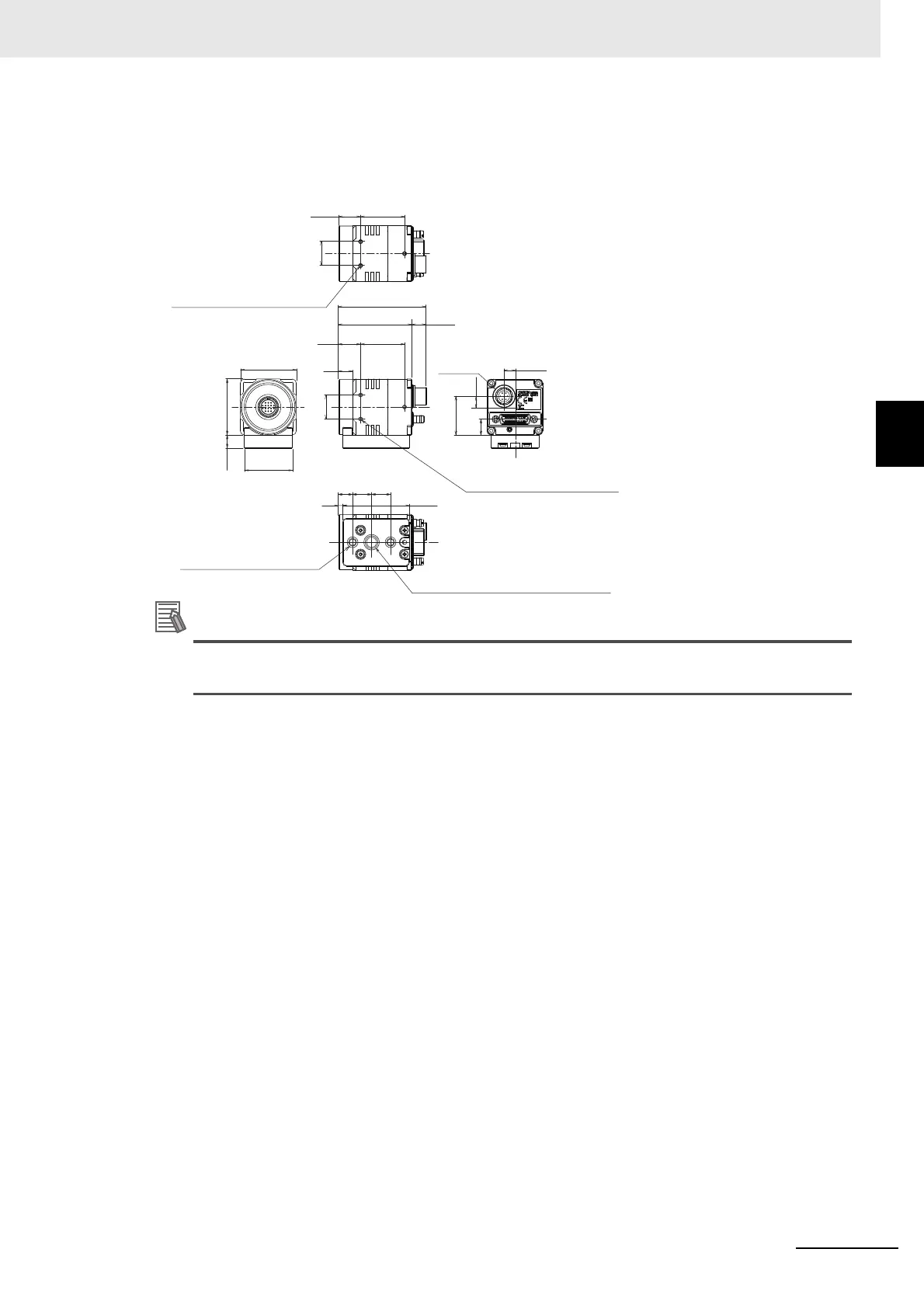

3-2-5 Small Digital CCD Cameras: FZ-S Camera Series
 Camera Amplifier
• Flat Camera
• Pen-shaped Camera
Additional Information
We have the 2D CAD data or 3D CAD data.
You can download CAD data from www.fa.omron.co.jp.
Three, M2 mounting holes
with a depth of 3.0 mm
Two, M4 mounting holes
with a depth of 5.5 mm
Three, M2 mounting holes
with a depth of 3.0 mm
(Unit: mm)
1/4” 20UNC with a depth of 5.5 mm
11 22
(43.8)
28
24
36.5
(6.5)
5.4
5.4
(8.8 dia.)
11
7
7 9.5 9.5
2
33.5
22
12
12 286.5
(8.5)
(20.7)
