This section describes how to display the Sampling Settings and Digital Filter Settings Tab Page and
information to be displayed.
Display Method

Connected to a CPU Unit
This section describes how to display the Sampling Settings and Digital Filter Settings Tab Page for
a High-speed Analog Input Unit connected to a CPU Unit.

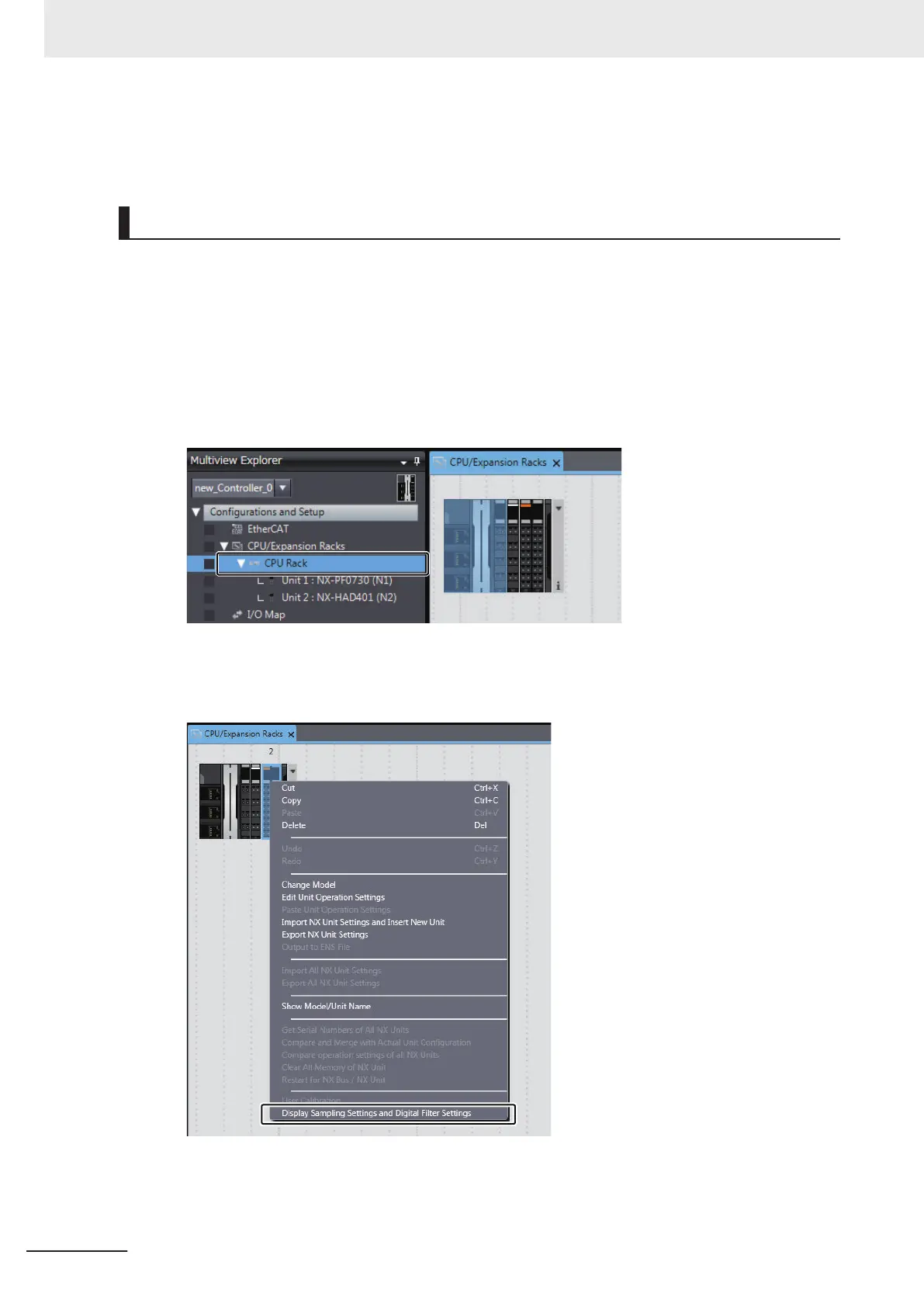

1 In the Multiview Explorer, double-click the CPU Rack to which the target High-speed Analog
Input Unit is connected to open the CPU and Expansion Racks Tab Page.
The following tab page is displayed.
2 On the CPU and Expansion Racks Tab Page, right-click the High-speed Analog Input Unit and
select Sampling Settings and Digital Filter Settings from the menu.
The Sampling Settings and Digital Filter Settings Tab Page is displayed.
8 Functions
8 - 12
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
