This section describes how to display the Sampling Settings and Digital Filter Settings Tab Page for
a High-speed Analog Input Unit connected to a Communications Coupler Unit.

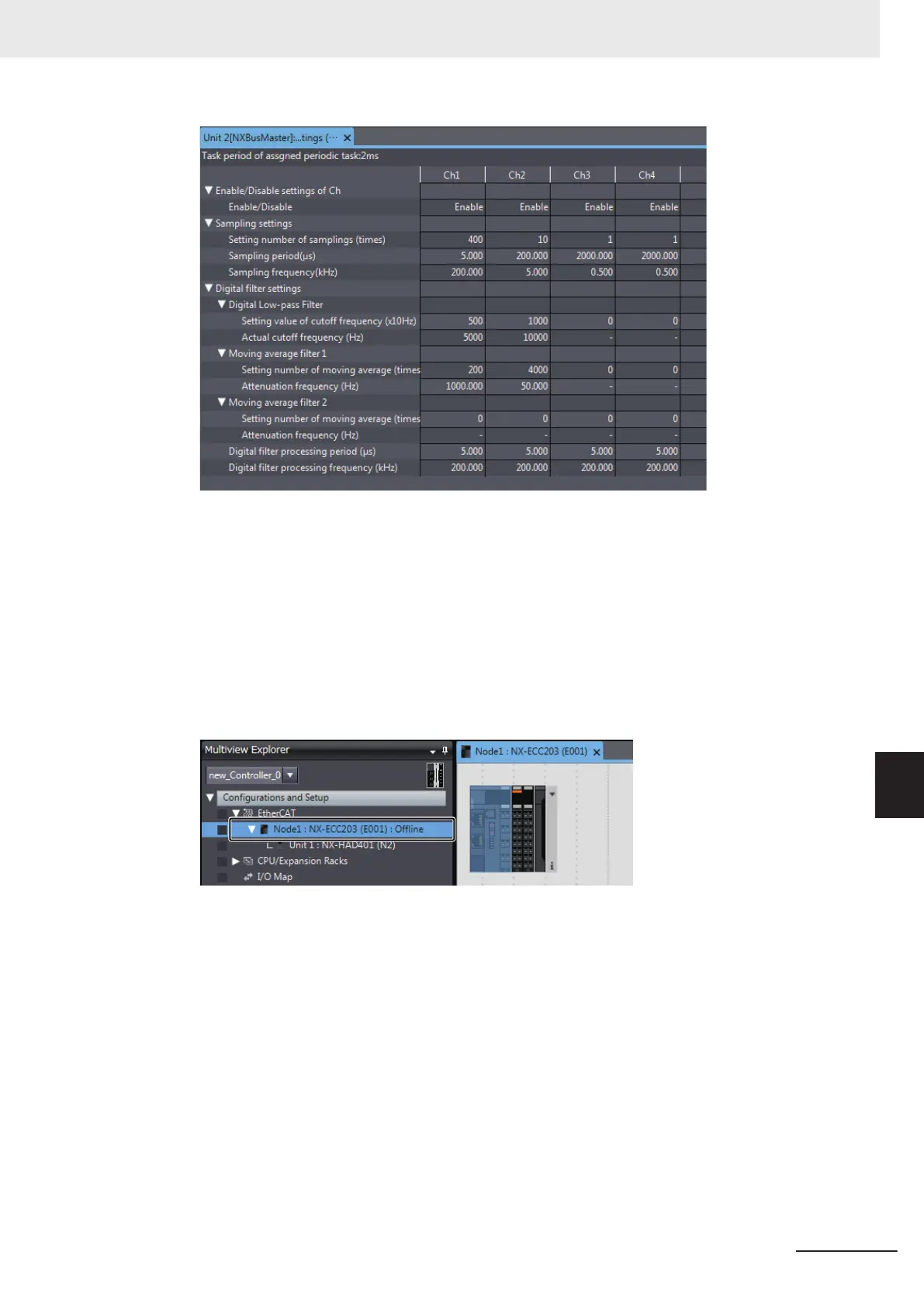

1 In the Multiview Explorer, double-click the Communications Coupler Unit to which the target
High-speed Analog Input Unit is connected to open the Edit Slave T
erminal Configuration T
ab
Page.
The following tab page is displayed.
2 On the Edit Slave Terminal Configuration Tab Page, right-click the High-speed Analog Input
Unit and select Sampling Settings and Digital Filter Settings from the menu.
8 Functions
8 - 13
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
8-4 Number of Samplings Setting
8
8-4-4 Checking the Sampling Settings
