Omron SYSMAC NX series User Manual

(a)
(b)
(c)
(d)
Let-
ter

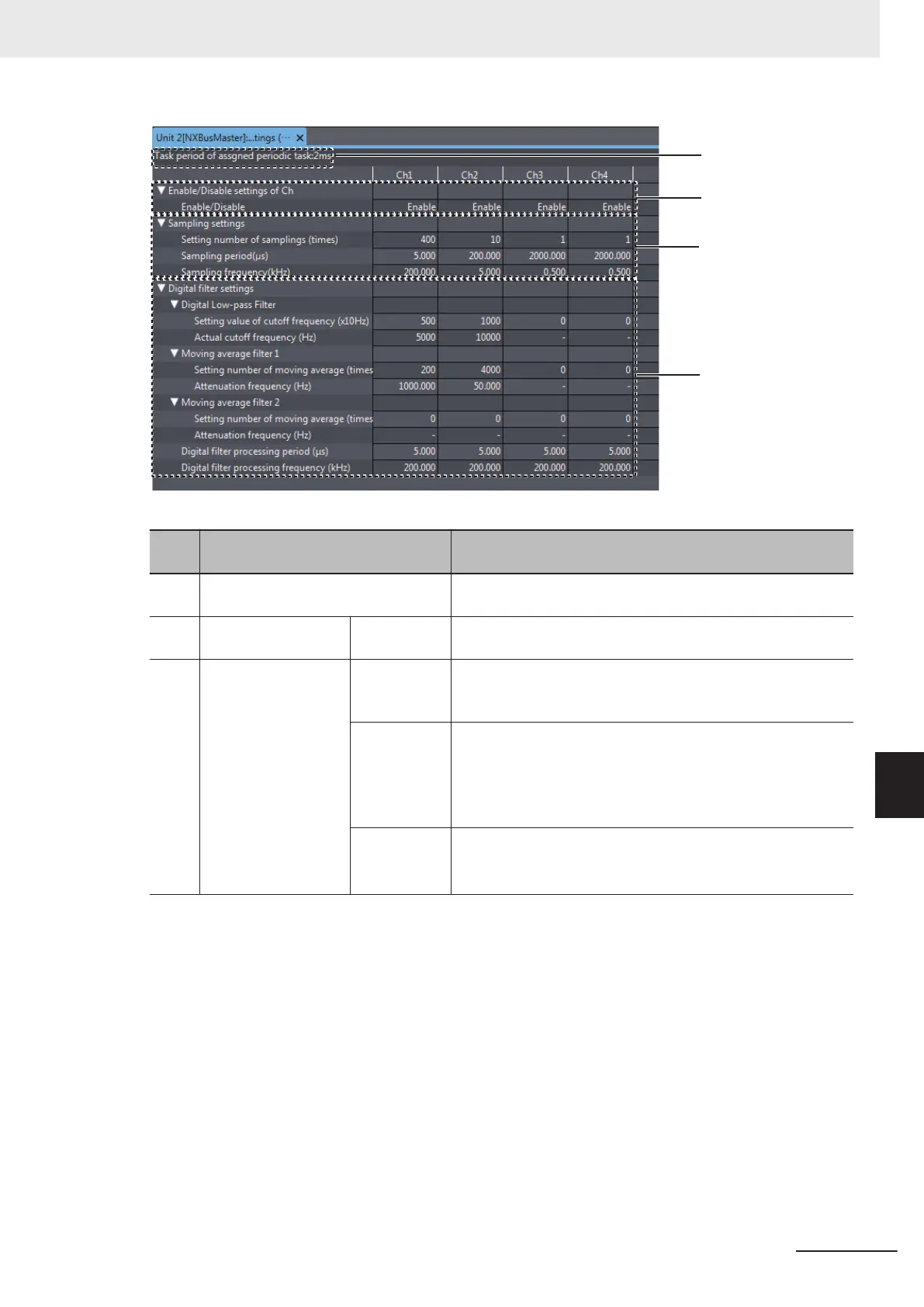

Name/Label Description
(a) Task period of assigned periodic task The task period of assigned periodic task in the task settings is
displayed.
(b) Enable/Disable set-
tings of Ch
Enable/Disa-
ble
Values that you set for Ch£ Enable/Disable in the Unit opera-
tion settings are displayed.
(c) Sampling settings
Setting num-
ber of sam-
plings (times)
Values that you set for Ch£ Number of Samplings Setting in
the Unit operation settings are displayed.
For disabled channels, - is displayed in the Ch column.
Sampling pe-
riod [µs]
The sampling period for each channel, which is automatically
calculated by the Support Software, is displayed.
*1
For disabled channels, - is displayed in the Ch column. In addi-
tion, for channels whose sampling period is less than 5 µs, the
Ch number is displayed in red text.
Sampling fre-
quency [kHz]
The sampling frequency for each channel, which is automati-
cally calculated by the Support Software, is displayed.
*2
For disabled channels, - is displayed in the Ch column.
8 Functions
8 - 15
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
8-4 Number of Samplings Setting
8
8-4-4 Checking the Sampling Settings
